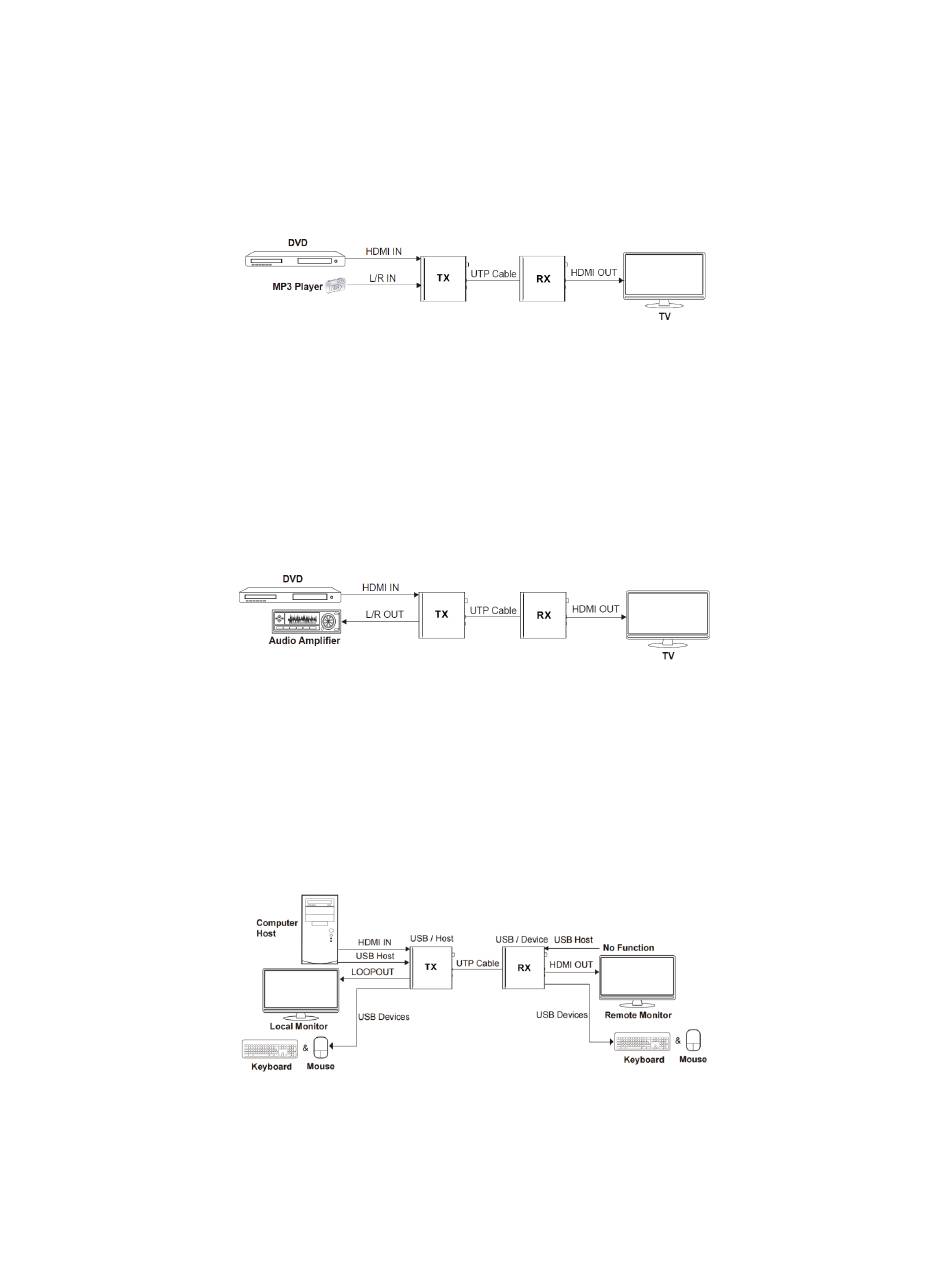

Audio Embedding and De-Embedding

The transmiter supports both audio embedding and de-embedding. The L/R IN/OUT PORT can be used
for audio embedding or de-embedding via the L/R IN/OUT switch.
TX Audio Embedding
•
When the L/R IN/OUT switch is switched to le�, the audio from external audio device will be embedded
to the L/R IN/OUT port.
TX Audio De-embedding
▪
When the L/R IN/OUT switch is switched to right, The L/R IN/OUT port will output the audio de-
embedded from the HDMI IN port.
USB Mode Applica�ons
The Extender supports USB2.0 transmission, and Host/Device is configurable.
Mode 1: USB forward from TX to RX
Switch the HOST/DEVICE USB switch to le�, then power off and reboot the transmiter to set to USB Host
mode. Meanwhile, switch the DEVICE/HOST USB switch to le�, then power off and reboot the receiver
to set to USB Device mode.
