Operation Controls and Functions

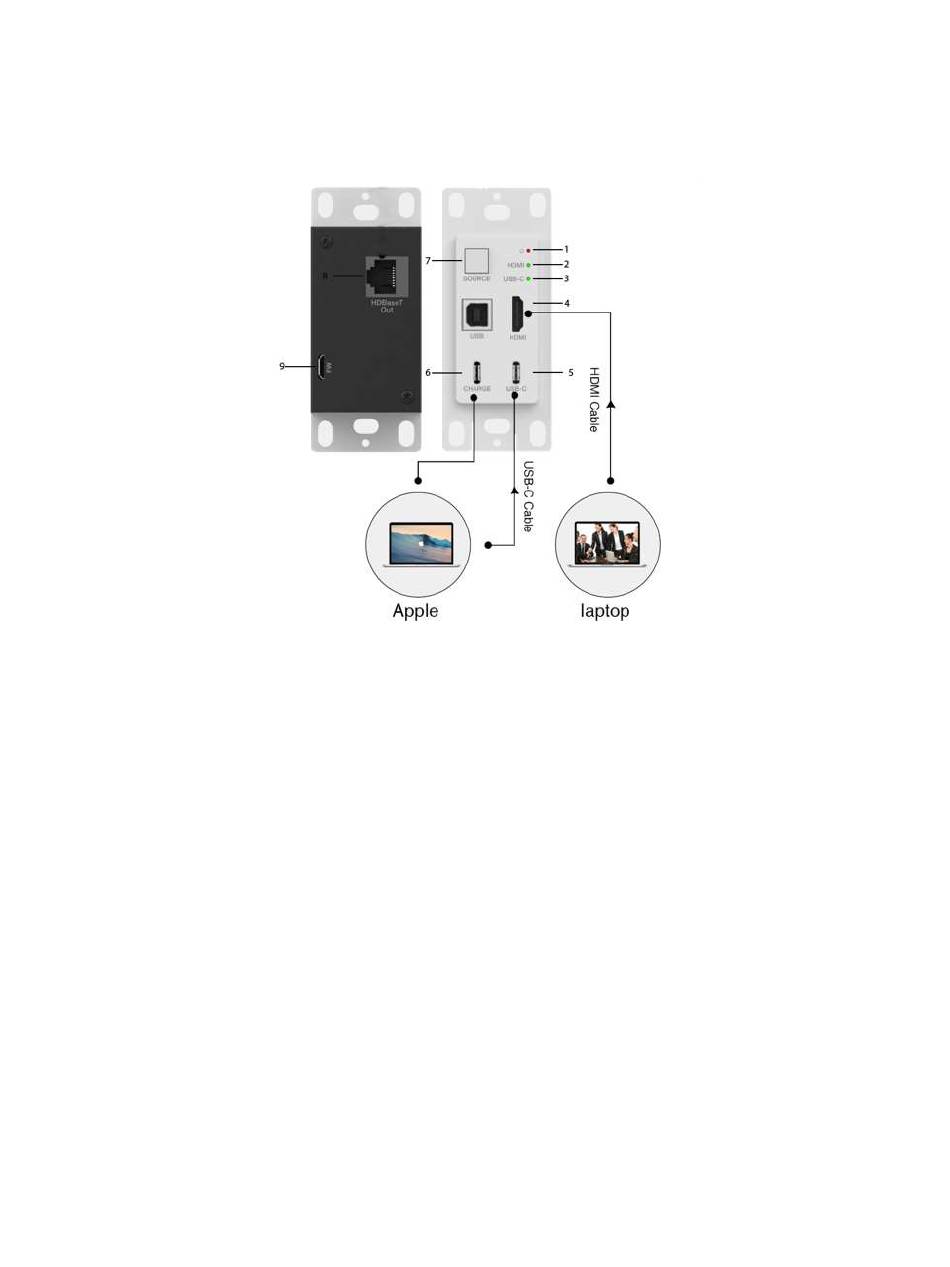

Transmitter Panel

1. Power LED:
- The POWER LED indicator will illuminate green when the product is powered on, and red
when the product is on standby.
2. HDMI LED:
- When the HDMI port is active and an HDMI signal is detected, a green LED will turn on.
3. USB-C LED:
- When the USB-C input port is active and a USB-C signal is detected, a green LED will turn on.
4. HDMI Port:
- HDMI input port, connect to HDMI source device.
5. USB-C Port:
- USB-C signal input port OR Charging port for devices with a USB-C port.
6. Charge Port:
- Connect this port to the power supply, then the USB-C port will power the connected
device.
7. Source Button:
- Used to switch the source(s) between HDMI/USB-C.
8. HDBaseT OUT:
- Connect to the HDBaseT IN port of the receiver with a CAT6/6a/7 cable
9. Micro USB:
- Firmware update port.
