- Page 1 User Manual Outdoor Station H Series Digital System Outdoor Station Manual_V1.0 H-OS20/H-OS21...
-
Page 3: Table Of Contents
Content Chapter 1 Overview ....................1 1.1 Function ....................1 1.2 Parameter ....................1 Chapter 2 Product Introduction ................2 2.1 Product View .................... 2 2.2 Product Dimensions ................3 2.3 Interface Introduction ................4 Chapter 3 Installation ....................5 3.1 Installation Height ................... 5 3.2 Installation Steps ..................6 3.3 Lock Wiring .....................7 Chapter 4 User Instruction .................. -
Page 4: Chapter 1 Overview
Chapter 1 Overview The product is the single/ two buttons outdoor station of the H Series Digital System VDP. By using standard CAT5 cables, it makes visual intercom call to guard station possible. Besides, it supports IC access control. 1.1 Function Support IC card ... -
Page 5: Chapter 2 Product Introduction

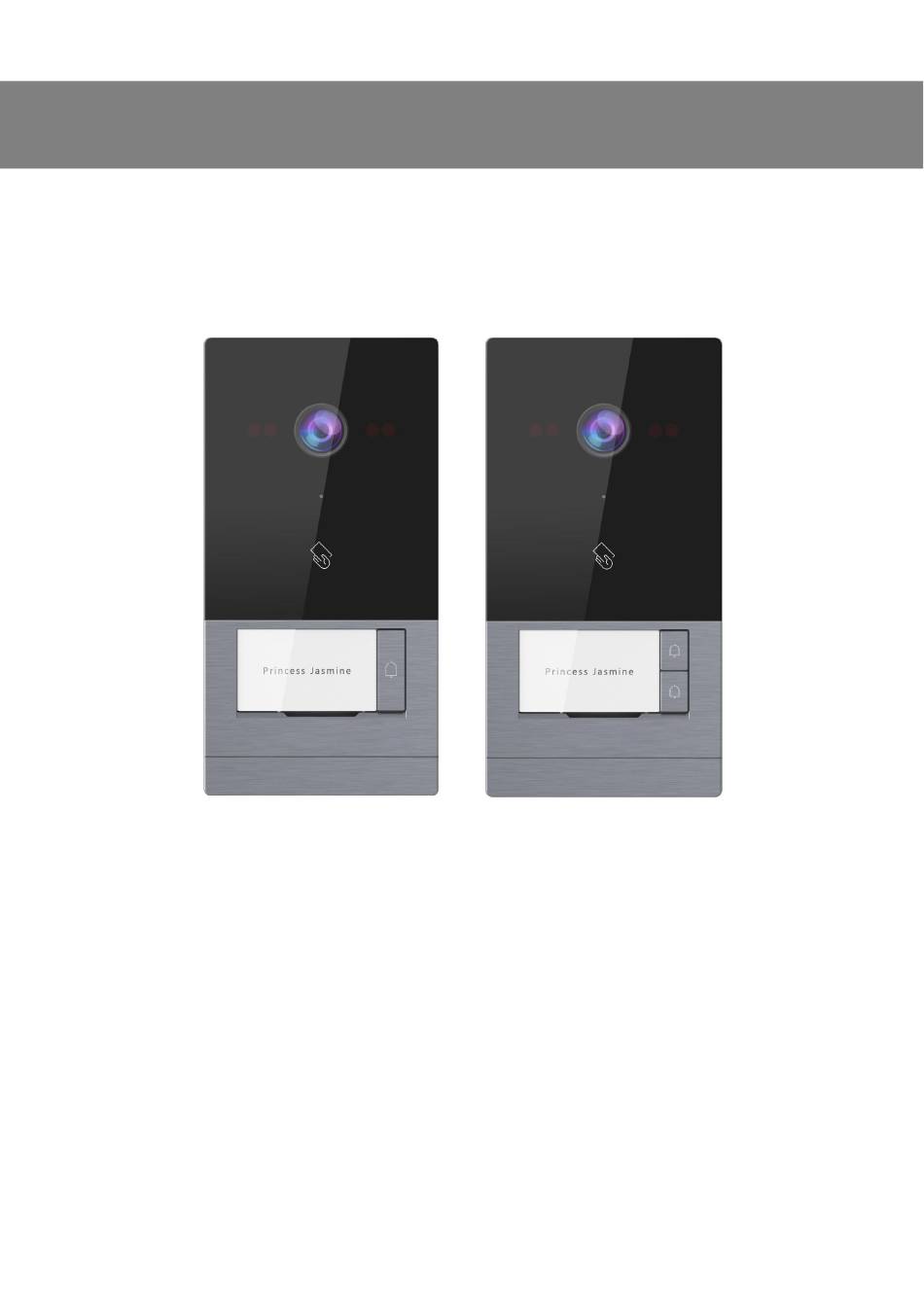

Chapter 2 Product Introduction 2.1 Product View... -
Page 6: Product Dimensions
2.2 Product Dimensions Unit：mm... -
Page 7: Interface Introduction
2.3 Interface Introduction ① ② +24V GND NO COM NC GS GND Interface ① RJ45 Network Interface ： Connecting 48V PoE Switch （ 1236 Communication 、 4578Power supply） Interface ② +24V GND ：Independent power supply interface NO COM NC ：Normal open/close interface GS GND ：Door status detection interface SW：Indoor unlocking interface... -
Page 8: Chapter 3 Installation
Chapter 3 Installation 3.1 Installation Height Recommended installation height :The camera is 1.6 meters above the ground... -
Page 9: Installation Steps
3.2 Installation Steps Step 1: Drill holes on the wall according to the installation size (149.5×64.5mm), fix the screw plug into the hole (it is recommended to align the device to the center of the reference line ), then place the device and fasten with self-tapping screws(Pic 2) Pic 2 Pic 1 Step 3: Assemble the metal case... -
Page 10: Lock Wiring
3.3 Lock Wiring Signal Unlocking Wiring Power Normal Closed Wiring Mode (12V Electric Lock) Power Normal Open Wiring Mode（Relay Lock） 【Note】Do not power up the electric lock from outdoor station. Exit button unlock wiring 【Note】This wiring is non-polarity. -
Page 11: Chapter 4 User Instruction
As there are interface for integration of external push buttons, when this is connected, a normal push button can be used to unlock the door. 4.3 Unlock Time Setting Default unlock time is 5S, unlock time can be set through ‘GVS Config Tool’. Unlock time range:1~30 seconds. 4.4 Card Management The maximum supported quantity of management card is 10,000 pcs. -
Page 12: Door Status Alarm
Alarm interface of door unlock timeout...
