GVS T Series User Manual
7 inch touch outdoor station
Hide thumbs
Also See for T Series:
- User manual (42 pages) ,
- User manual (2 pages) ,
- User manual (21 pages)
Related Manuals for GVS T Series
Summary of Contents for GVS T Series

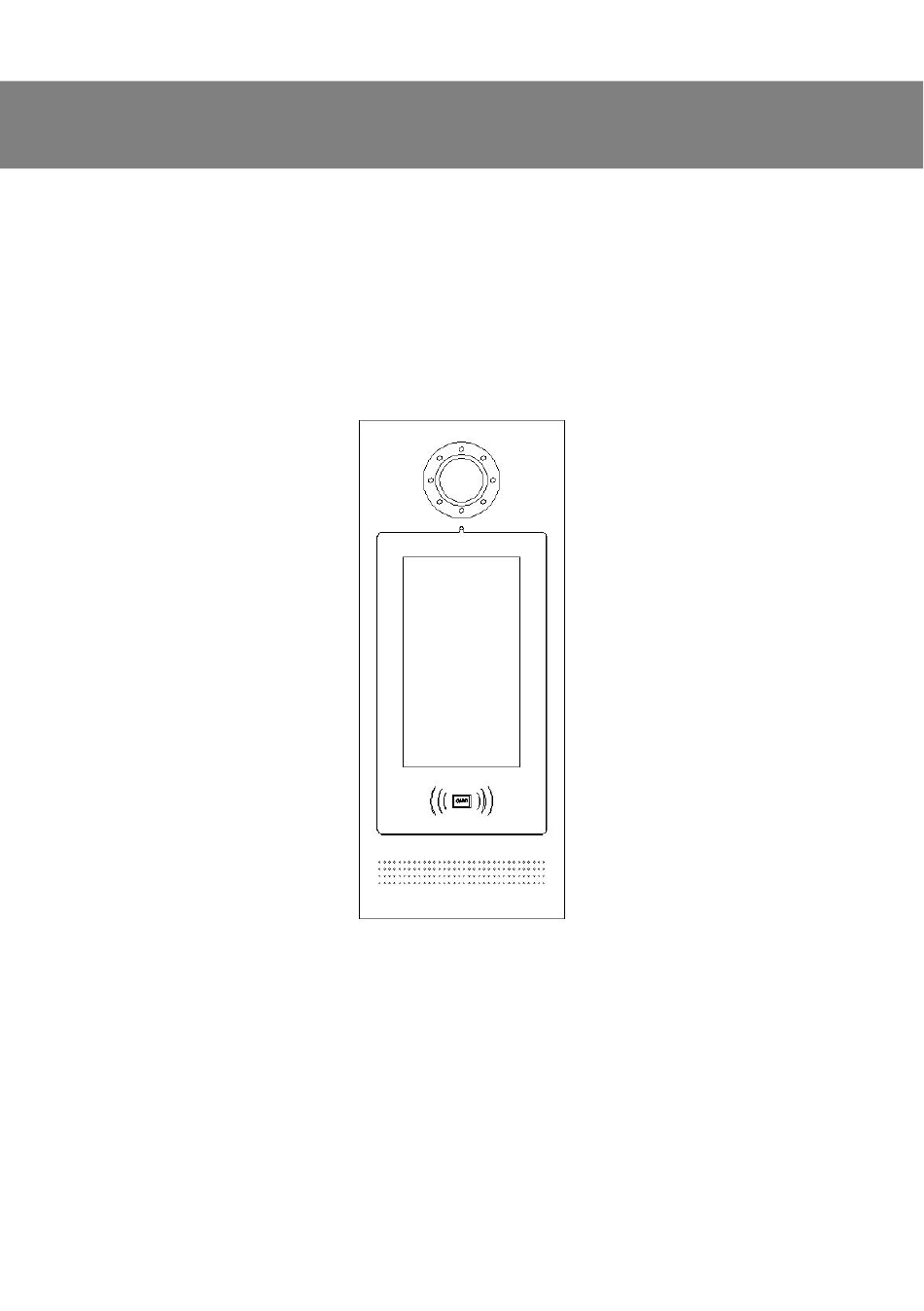

- Page 1 User Manual Outdoor Station T - series 7 inch Touch Screen Outdoor Station User Manual_V1.0 T-OS11...
-
Page 3: Table Of Contents
Content Unit 1 Overview......................1 1.1 Functions and Characteristics..............1 1.2 Parameters......................1 Unit 2 Appearance and Interface................2 2.1 Appearance....................... 2 2.2 Dimension......................3 2.3 Interface Introduction..................4 Unit 3 Installation....................... 5 3.1 Installation Height................... 5 3.2 Installation Steps..................... 6 3.3 System Wiring....................7 Unit 4 Operation Instructions................. -
Page 4: Unit 1 Overview
Unit 1 Overview This product is an Outdoor Station of 2-Wire analog video door phone system, it makes communication with Indoor Monitor via 2-core cable in the system, the Outdoor Station also supports access control with IC card. 1.1 Functions and Characteristics Support video intercom and unlocking ... -
Page 5: Unit 2 Appearance And Interface

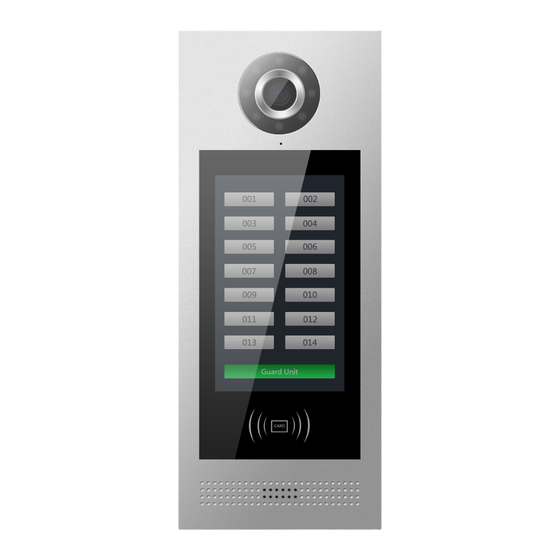

Unit 2 Appearance and Interface 2.1 Appearance Keypad Mode Residential List Mode Front View Rear View... -
Page 6: Dimension
2.2 Dimension... -
Page 7: Interface Introduction
2.3 Interface Introduction Network(update) Interface (1: TX+ , 2: TX-, 3: RX+, 4: RX-); ① DC+ GND: External DC 24V power supply interface; ② Unlock time adjustment: please check “6.4 unlock time setting”; ③ External camera; ④ Outdoor station address (ADD) setting, please check “6.5 ADD setting”; ⑤... -
Page 8: Unit 3 Installation
Unit 3 Installation 3.1 Installation Height Suggested height for installation: camera is 1.6m above the ground... -
Page 9: Installation Steps
3.2 Installation Steps Step 1: Put the embedded box into the preformed groove (as Pic.2). After getting the cable out through the opening, fasten the box with screws or by cement. Dimensions of embedded box are as below: Pic.1 Pic.2 Step 2: After connecting the cable to the Outdoor Station (as Pic.3), match the snap slot of the Outdoor Station to the snap of embedded box and press the outdoor station into the box, then fasten the Outdoor Station to the box with screws (as Pic.4). -
Page 10: System Wiring
3.3 System Wiring Remarks: System capacity: 1 System Power Supply + Outdoor Station(Max: 4) + Distributor(no limited) + Indoor Monitor(Max: 200 apartment) + Extended Power Supply(MAX: 16); Support multiple Indoor Monitors(Max. 4pcs) in 1 apartment, address of all the Indoor Monitors in one apartment should be same; Attention: In case of over current, only 1 Indoor Monitor can be set as master within 1 apartment. -
Page 11: Unit 4 Operation Instructions
Restricted by the power consumption, the system only allows 2 Indoor Monitors turn on the screen (being operated) at the same time (intercom function is not affected); Distributor is recommended for system wiring (star wiring topology), while Bus topology (hand In/ Out connection) is supported as well; If the external electric lock needs to take power from Outdoor Station, then Outdoor Station itself must connect the power through the external power supply port, only in this way the power can be given from lock mode interface;... -
Page 12: Name List By Keypad Mode
Standby state of Keypad mode Remark: The device is using keypad mode as default, users can set the DIP Switch in the back to 0 position and input the correct password to enter configuration setting for mode change, detailed call mode setting please refer to page 18. -
Page 13: Call By Residential List Mode
Visitors can press the exact name in name list to make the call, or click the input box to search the resident’s name, when the searching is done, click to trigger the search, make the call by pressing the name. If the device is online, it will begin the calling count down and start to play the ringback. - Page 14 Residents can unlock the door from Indoor Monitor when Outdoor Station is calling or being monitored by Indoor Monitor, and Outdoor Station will show “door opened”. 3) By External Button There is a interface for integration of external push button, when connected, a normal push button can be used to unlock the door.
-
Page 15: Unit 5 Settings
Unit 5 Settings 5.1 Setting Login Interface In standby mode, users can press to enter setting login interface. 801801. Default configuration password: Remark: Users can also enter setting login interface by swiping administrator card. Setting Login Interface... -
Page 16: Main Setting Interface
5.2 Main Setting Interface After inputting the correct configuration password and , main setting interface is shown as below: Main Setting Interface Unit 6 System Settings System setting includes Time Setting(reserved), Ringtone Setting, Languages, PIN and Card Management. System Setting Interface... -
Page 17: Ringtone Setting
6.1 Ringtone Setting Ringtone setting interface is shown as below, users can press to adjust volume, press to turn on / off mute function. After setting is done, press to save and press to return last page. Ringtone setting Interface 6.2 Language Setting Language setting interface is shown as below, users can select the language and press to confirm, press... -
Page 18: Pin Setting
6.3 PIN Setting Password setting includes: User Password, Public Password and Public Password Modification. Users can press to turn on / off unlocked by user password or unlocked by public password. Press to confirm or press to return last page. PIN Setting Interface 6.4 Unlock Time Setting There is an adjustable potentiometer on the back side of the outdoor station(No.③),... -
Page 19: Card Management
6.6 Card Management Card management includes register, check(card information), delete, clear(delete all). Card Management Interface Swipe a card or input the card number to register, after registering finished, press to confirm, or press to return last page. While inputting card number, users can press to delete each number. - Page 20 Users can enter “check(card information)” to check all card numbers and the quantity of registered cards. Press to page up/down the card numbers. Card Information Interface If you choose , a message will pop-up to confirm the operation (delete all), press to confirm the operation, or press to return last page.
-
Page 21: Unit 7 Configuration Setting
Unit 7 Configuration Setting Configuration setting includes Call Mode Setting, Alarm Setting, Factory Test, Configuration Setting, Company Info(reserved) and Device info. Users can press each icon to enter the relevant setting. Configuration Setting Interface 7.1 Call Mode Setting Call Mode Setting interface is shown as below, users can choose each of the dialing method by pressing their icon, then press to confirm and the call mode is set. -
Page 22: Alarm Setting
7.2 Alarm Setting Alarm setting interface is shown as below, users can press to turn on/off anti demolition alarm. The alarm will ring when Outdoor Station is being disassembled by external force. Alarm Setting Interface 7.3 Door Status Detection With this function, there will be alarm warning if there’s overtime door open status( more than 120 seconds). - Page 23 When choosing “Reset To Factory”, choose “confirm” on pop-up box to restore the system as factory setting, using residential list mode, all settings (For example the device properties , volume etc.) will be restored as factory setting. Factory Test Interface Remark: 1.Resetting device within 60s after power on, all data will be erased (name list, card list, private unlock password);...
-
Page 24: Configuration Password
7.5 Configuration Password To change the configuration password: input the current password, move to new password box for entering new password. If entering the new password you input correctly twice,it will save the modification. Password number limitation: 6 digits. Configuration Password Interface 7.6 Device Information In device information interface you can find the version of software and MCU.
