GVS H Series User Manual

H Series Access Control Card Reader User Manual_V1.0

Function Overview


Based on the TCP/IP transmission protocol, Access Control Card Reader is one of the main
device of the digital building intercom system. It supports unlock with both IC and ID card.

Functions and Characteristics


Support 24V non-standard PoE power supply or independent 24V power supply

Support exit button and tamper alarm

Support door status detection and timeout alarm

Support IC and ID card

Adjustable unlock time

Support max 10,000 resident cards

Support disconnection alarm

H-CR02
1

Product Dimension and Specification Parameters



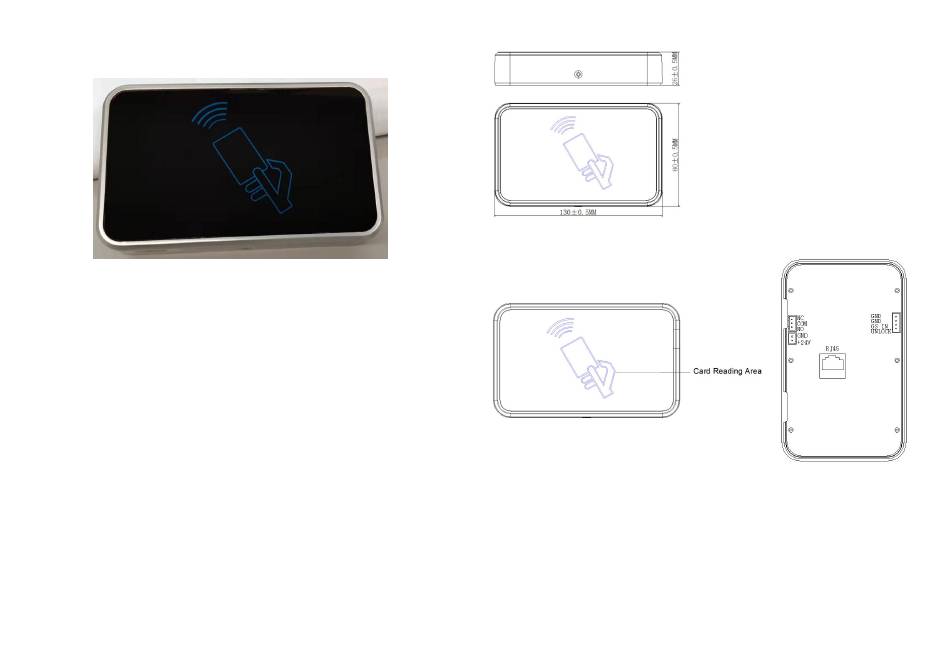

Product Appearance



Interface Description:

① +24V, GND: power input; NO: normally-open; COM: common, NC: normally-closed;
② UNLOCK, GND: external button unlock; GS IN, GND: door status;
③ RJ45 network interface: support 24V non-standard PoE power supply
Working Voltage: DC 24V
Static Current: ≤ 60 mA
Working Current: ≤ 100 mA
Dimension(L×W×D):130×80×26 mm
Environment Temperature: -20℃ ～ +55℃
