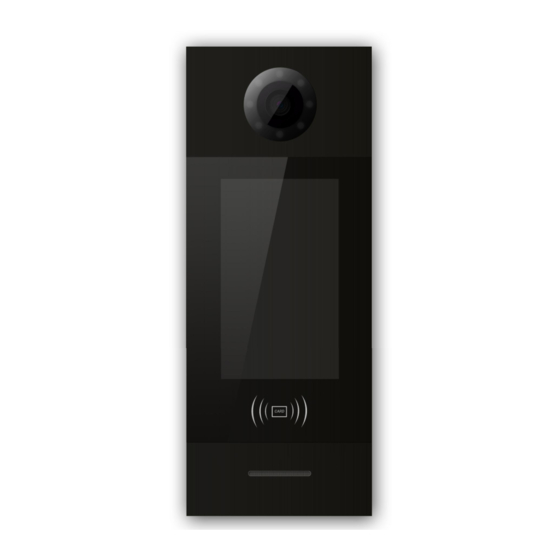

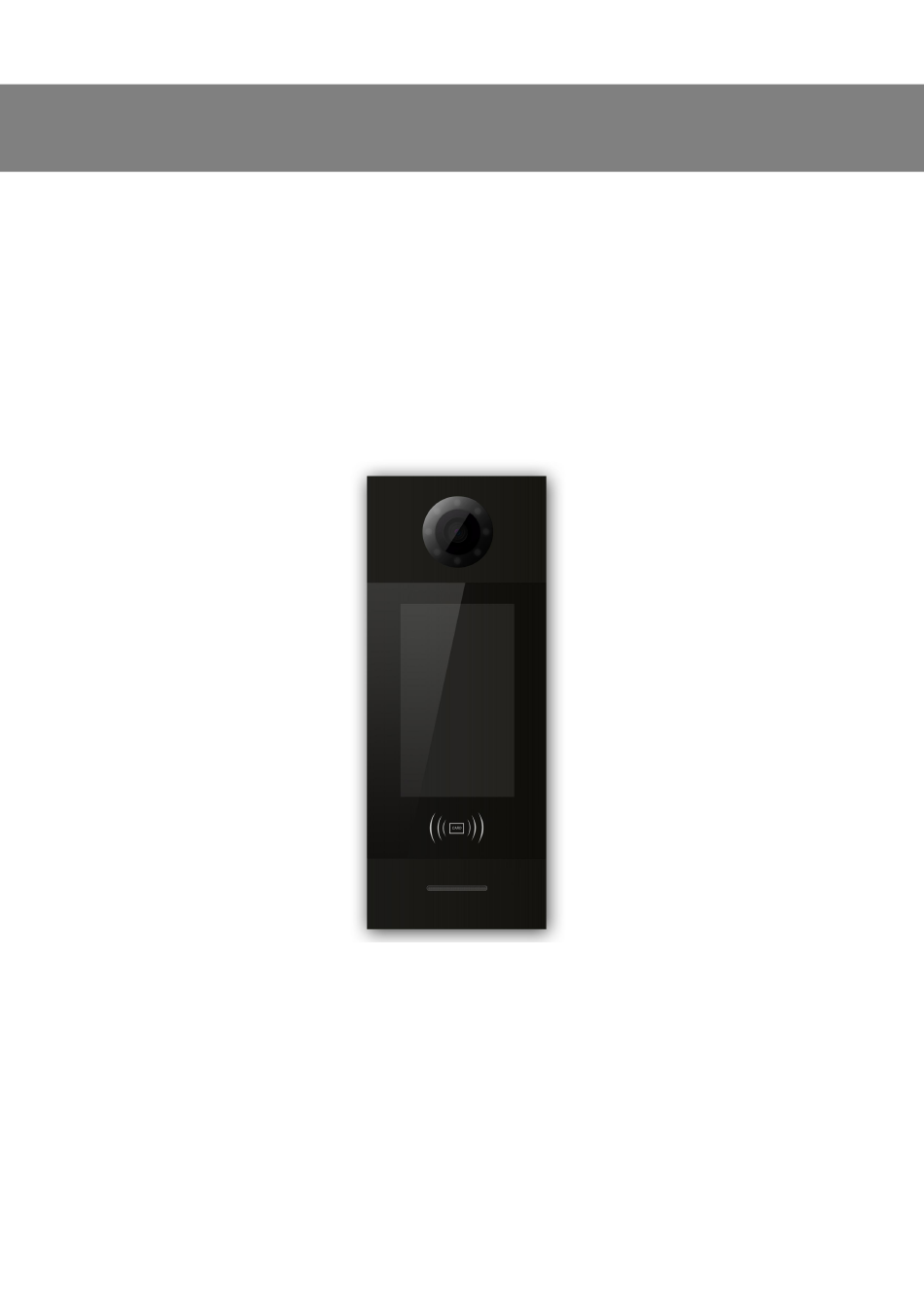

- Page 1 User Manual Outdoor Station H series - Outdoor Station With Face Recognition User Manual_V2.0 Model Number: H-OS06...
-
Page 3: Table Of Contents
Content Chapter 1 Overview ........................1 1.1 Functions and Characteristics ..................1 1.2 Parameters ........................1 Chapter 2 Appearance and Interface ..................2 2.1 Front View ........................2 2.2 Product Dimension ....................... 3 2.3 Rear View ........................4 Chapter 3 Installation ........................ 5 3.1 Installation Illustration .................... - Page 4 7.4 Config. Password ....................... 32 7.5 Help ..........................33 7.6 Factory Test ......................... 34 Appendix: Frequently Asked Questions .................. 35...
-
Page 5: Chapter 1 Overview
Chapter 1 Overview The Outdoor station is one of the main parts in digital video door phone system .It’s connected with Indoor Monitor, Guard Unit and other devices in the system by standard CAT5 cable. And it supports RFID (IC) access control. 1.1 Functions and Characteristics 7’’... -
Page 6: Chapter 2 Appearance And Interface
Chapter 2 Appearance and Interface 2.1 Front View... -
Page 7: Product Dimension
2.2 Product Dimension... -
Page 8: Rear View
2.3 Rear View ① Interface for power supply: DC 24V (interface for independent power supply, working voltage DC: 18-30V) ② +12V: Only when the Outdoor Station input voltage>18V, +12V is given. COM, NO, NC: Common pin, normally-open pin, and normally-closed pin. GS: Door status detection. -
Page 9: Chapter 3 Installation
Chapter 3 Installation 3.1 Installation Illustration Embedded box dimension （ W/H/D ） ： 132×340×50 mm Step 1: Put the embedded box into the preformed groove. After getting the cable out through the opening, fasten the box with nails or by cement. Step 2: After connect the cable to the outdoor station, match the snap slot of the outdoor station to the snap of embedded... -
Page 10: Installation Height
3.2 Installation Height Ground Recommended Installation Height: 1.6 meters... -
Page 11: Wiring Instructions
3.3 Wiring Instructions Unlock signal wiring Power Supply Normally closed lock wiring(Magnetic lock ) Power Supply Normally open lock wiring((Electronic lock) Note: If the lock powered by the outdoor station, the outdoor station should be powered by the independent power supply, and the current input should be less than 800mA, otherwise it will cause the damage. - Page 12 Note: The wiring is Non-polarity Door status alarm wiring Normally closed lock Note: There are 2 ways to turn off the door status alarm 1. Connecting the port of GS on the outdoor station to the ground 2. Enter the outdoor station menu,“Engineer Setting -> System Setting -> Door status alarm”...
-
Page 13: Chapter 4 Operation Instructions
Chapter 4 Operation Instructions Note: This manual is applicable to Outdoor Station of version V1.07 and above. Any differences please contact the supplier for support. 4.1 Call Indoor Station After inputting room number, click to start the call or after 5s without operation, it will call the room automatically. - Page 14 Interface of face registration (2) Administrator can input the room number “0000”, config password “801801”(default) into the engineering settings ----- face registration. Input the room number to arrange the face registration for residents (input room number “0000” to register for administrator)
- Page 15 2.Register by swiping user card Residents can enter Face Registration interface with their resident card, which should be authorized by PC Management Center in advance. Administrator can swiping the patrol card to enter the interface of administrator face registration. During the registration, please keep your face in the middle of the screen, a message “done”...
-
Page 16: Unlock
4.3.3 Face Management In Face Registration interface, click Manage to view the face list, user can slide left or right to check the registered face. Interface of Face List 2) Click at the bottom right corner of the screen to delete the selected face. Click to return to the previous interface. - Page 17 Interface of Face Unlock 2)For registered face, keep standing in the middle of the screen, if identified successfully, a pop-up message of “Door Opened” will appear. 3) Click to return to the Standby interface. 4.4.4 Unlock by Random Password 1) In Face Unlock interface, click to select Unlock Mode.
- Page 18 4.4.5 Unlock by QR Code 1) In Face Unlock interface, click to select Unlock Mode. 2) Select QR Code Unlock (Note: QR Code is generated by Cloud Intercom APP.) Interface of Unlock Moe Interface of QR Code Unlock 4.4.6 Unlock by User Password 1) In Face Unlock interface, click to select Unlock Mode.
- Page 19 of Indoor Monitor), ex. Building 1, unit 1,room 101----input room number 101, password 666666 (The default user password) 4.4.7 Unlock by Public Password 1) In Face Unlock interface, click to select Unlock Mode. 2) Select Public Password Unlock → input the public password :666666 (Default password , it can be revised as need) Interface of Unlock Mode Input the public password...
-
Page 20: Chapter 5 Setting
Chapter 5 Setting 5.1 Standby Interface 5.2 Login Setting Interface In the standby interface --- Click ,then click to enter into the login interface for settings ---- input room number “0000”, password “801801” (default config. password) Login interface of settings... -
Page 21: Setting Interface
5.3 Setting Interface After inputting the correct password , click to enter the interface of settings, resident can choose specific settings by clicking the option. Interface of setting... -
Page 22: Chapter 6 System Setting
Chapter 6 System Setting System setting interface is shown as below, including Volume Setting, Date And Time Setting, Language, Unlock Setting, Card Management, Face Registration, Unlocking Duration , Elevator Linkage and Wiegand Setting. Touch each option to enter the corresponding setting interface. System setting interface 6.1 Volume Setting Volume Setting interface is shown as below, users can click each option to configure... -
Page 23: Time Setting
Volume setting interface 6.2 Time Setting Time Setting interface is shown as below, users can select each option and modify it’s number. After setting is done, press to confirm . Date And Time interface... -
Page 24: Language Setting
6.3 Language Setting Language Setting interface is shown as below, users can choose the language by touching corresponding option, then press to confirm and return to previous menu. Language setting interface 6.4 Unlock Setting Unlock Setting interface includes：QR Code Unlock, Face Unlock, Random Password Unlock, Public Password Unlock, Public Password Modification and User Password Unlock. -
Page 25: Card Management
Unlock setting interface 6.5 Card Management Card Management interface includes: User Card, Patrol Card, Copy Card Data and Card Copy Prevention. Card management interface This manual is taking user card as example to introduce the related operations in brief. (operations of Patrol card is similar with user card’s) - Page 26 User card interface Registration and Deletion In card registration interface, swipe a card or input the card numbers to register. After finishing registration, press to return to previous menu. While inputting wrong numbers, press the deletion key to delete each number. The operation of Card Deletion is same as Card Registration.
- Page 27 Check Card Information Users can click Check Card Info. to check all card numbers and the quantity of the registered cards. Card information interface Delete All Users Click this option, a message will pop-up for confirming the operation (delete all?), press to confirm and all users will be erased, or press to return to previous menu.
-
Page 28: Unlocking Duration
Interface of copy card data Card Copy Prevention With this option turned on, the IC card will be encrypted when it swipe to Outdoor Station, which prevents card duplication. 6.6 Unlocking Duration This option is meant to set the duration of door open time, the door will lock again automatically when the time is out. -
Page 29: Elevator Linkages
6.7 Elevator Linkages Elevator Linkage setting is meant to turn on/off the elevator control function and to set the floor number of Outdoor Station(range: 8-64, 0 not included). With this function turned on, users need to input the highest floor number which the user can reach while they are registering user card(range: 8-64, 0 not included). -
Page 30: Chapter 7 Config. Setting
Wiegand setting interface sequence setting interface Chapter 7 Config. Setting Configuration Setting includes System Property, Device Property, Face recognition, Configuration Password, Help and Factory Test. Click each option to enter the related setting. Configuration setting interface... -
Page 31: System Property
7.1 System Property Interface of system property Dialing Digit Setting The dialing digits setting shows different interface according to the different devices. While setting as Outdoor Station: Choose “3”, the device will make the call automatically after inputting 3 numbers. For example, dial “818”... - Page 32 While setting as Gate Station: Users can choose 1, 2 or 3 digits for dialing Unit number, and choose 3 or 4 digits for dialing Indoor Monitor number. Related instruction please refer to the dialing Illustration shown as below. Interface of Gate Station dialing setting Illustration of Units: 1-digit 2-digit...
-
Page 33: Device Property
Door Status Alarm Anti Demolition Alarm Users can choose to open/close each alarm. When the corresponding alarm is triggered, the device will send the alarm information to the administration center and PC. Interface of Door Status Alarm Interface of Anti Demolition Alarm Auto Push ... -
Page 34: Face Recognition Setting
Interface of Outdoor Station property Interface of Gate Station property 7.3 Face Recognition Setting Interface of Face Recognition setting... - Page 35 Live Detection Users can chose whether to open Live Detection or not, click to confirm; click to return to Face Recognition Setting interface. Note: If Live Detection is opened, resident need to turn their face to left and right side slightly while they are using Face Unlock;...
-
Page 36: Config. Password
Click to confirm, click to return to Face Recognition Setting interface. Threshold Setting Interface of Threshold Setting In this interface user can configure the threshold of face recognition(High, Medium, Low), each level corresponds to the accuracy of face matching. Higher level of threshold comes with higher accuracy of face recognizing. -
Page 37: Help
Interface of config. password setting 7.5 Help The company information interface can be customized(reserved). In “Version No.” you can find version of the system, IP address, MAC address, etc. Help interface... -
Page 38: Factory Test
7.6 Factory Test There are various testing programs on factory testing interface, most frequently used are “Reboot System ” and “Reset To Factory”. When choosing “Reboot system”, choose “confirm” on pop-up box to restart system. When choosing “Reset To Factory”, choose “confirm” on pop-up box to restore the system as factory setting, using push button mode, all settings (For example the device properties , volume etc.) will be restored as factory setting Interface of Factory Test... -
Page 39: Appendix: Frequently Asked Questions
Appendix: Frequently Asked Questions Question 1: When calling the resident, device doesn’t ring and prompt “no response”? (1) please check if the Indoor Monitor is connected with the Internet.(check if the internet icon of Indoor Monitor is highlighted). (2) Check if the Outdoor Station setting is correspond with the resident building .(Please set both Outdoor Station and Indoor Monitor with correct number) Question 2: The authorized Outdoor Station can not call the APP? (1) Check if the auto push of Outdoor Station is turned on or not.
