GVS H Series User Manual

Outdoor station with face recognition
Hide thumbs Also See for H Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Outdoor Station
H Series - Outdoor Station With Face Recognition User Manual_V1.0
Model: H-OS18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GVS H Series

Summary of Contents for GVS H Series

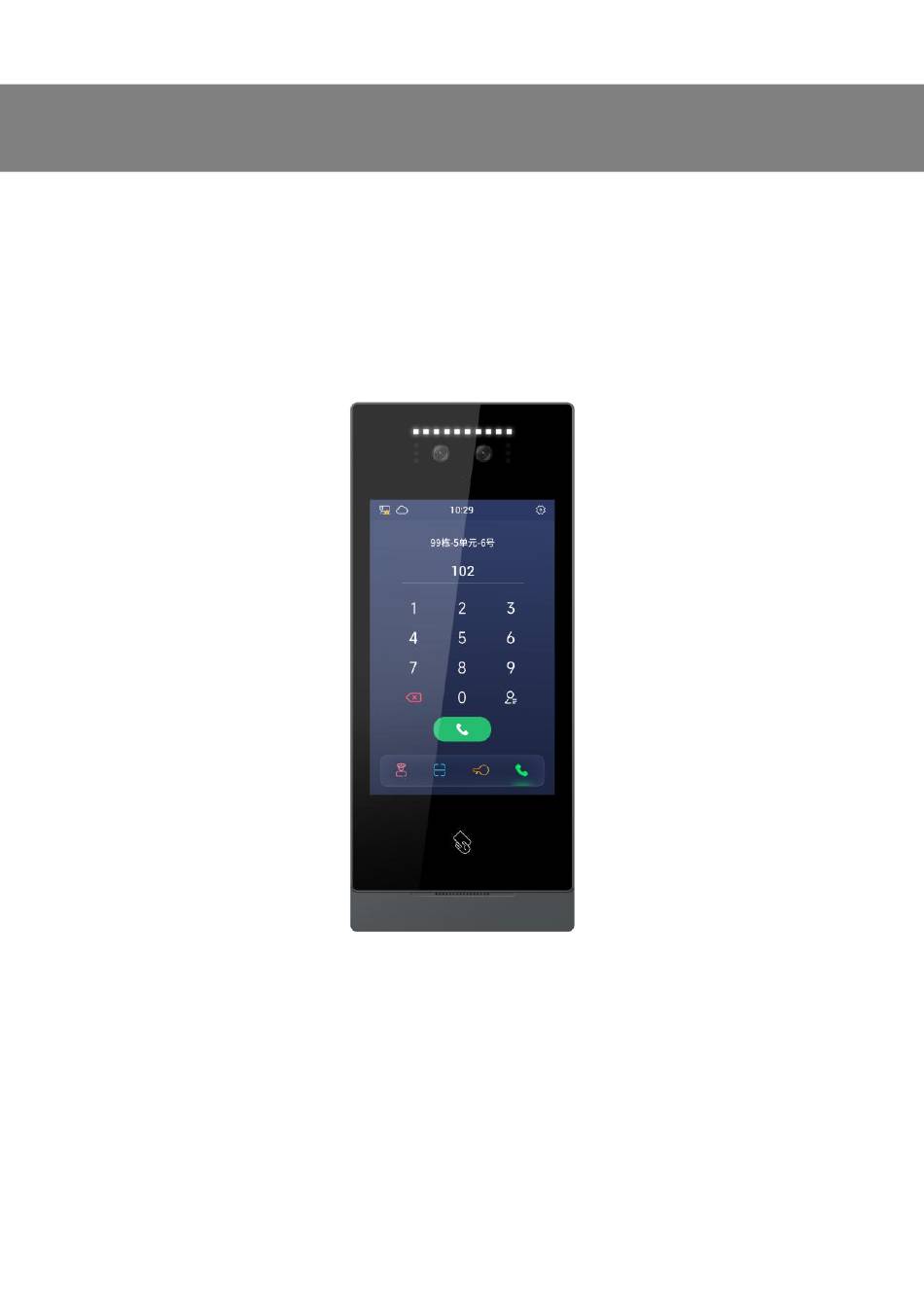

  • Page 1 User Manual Outdoor Station H Series - Outdoor Station With Face Recognition User Manual_V1.0 Model: H-OS18...

  • Page 3: Table Of Contents

    Content Chapter 1 Overview ......................3 1.1 Functions and Characteristics ................3 1.2 Specifications ...................... 4 Chapter 2 Appearance and Interface ................5 2.1 Front View ......................5 2.2 Product Dimension ....................6 2.3 Rear View ......................7 Chapter 3 Installation ..................... 9 3.1 Installation Illustration ..................9 3.2 Installation Height ....................
  • Page 4 5.14 About ....................... 37 Chapter 6 Appendix ......................40...

  • Page 5: Chapter 1 Overview

    Chapter 1 Overview The Outdoor station is one of the main parts in digital video door phone system. It is connected by standard CAT 5 cable and can be used for intercom and unlocking functions with Indoor Monitor or Guard Unit. 1.1 Functions and Characteristics 8"...

  • Page 6: Specifications

    1.2 Specifications System: Linux CPU: 2 x Cortex-A7 1.2GHz 32K RAM: 512MB ROM: 4GB Face Storage: 20,000 Working Parameters Working Voltage: 18~30V Static Current: <150mA (DC24V) (DC24V as standard) Working Current: <400mA (DC24V) Working Temperature: -20°C ~ +70°C Storage Temperature: -30°C ~ +70°C Humidity: ≤...

  • Page 7: Chapter 2 Appearance And Interface

    Chapter 2 Appearance and Interface 2.1 Front View...

  • Page 8: Product Dimension

    2.2 Product Dimension...

  • Page 9: Rear View

    2.3 Rear View ① ② ③ ④ ① RJ45 network interface ① Interface for power supply: DC 24V (interface for independent power supply, ② working voltage DC 18~30V) COM, NO, NC: Common pin, normally-open pin, and normally-closed pin. ③ GS: Door status detection.
  • Page 10 UNLOCK, GND: Unlock Push Button interface WG-GND, WG-D0, WG-D1: Wiegand interface DA, DB: RS485 interface ALARM_IN1: Alarm input 1 ALARM_IN2: Alarm input 2 ④ GND: GND ALARM_OUT: Lock2 interface normally-open pin ALARM_COM: Lock2 interface common pin GND: GND +12V_OUT: +12V power output...

  • Page 11: Chapter 3 Installation

    Chapter 3 Installation 3.1 Installation Illustration (1) Method 1: Embedded in Wall Step 1: Put embedded box into preformed groove and get cable out through the opening (as shown in Picture 1). Embedded box dimension(W/H/D) is 114 x 292.5 x 38 (mm). Step 2: After connecting cable to outdoor station, match slot on rear cover of the outdoor station to align with snap on embedded box and snap on the outdoor station (as shown in Picture 2).
  • Page 12 (3) Mode 3: Column It’s required to open a Φ33mm hole in the device that customer provided, get the cable between customer-supplied device and the host out through opening, and then get cable out through the column. Assemble the column and gum a waterproof sticker to the fixed part of the column and column bracket (as shown in Picture 1).

  • Page 13: Installation Height

    3.2 Installation Height Recommended Installation Height: 1.6 meters 3.3 Wiring Diagrams (1) Wiring for Signal Unlock Mode...
  • Page 14 Wiring for normally closed type lock(Magnetic Lock) Wiring for normally open type lock(Electronic lock) Note: If device is used for power supply under signal unlock mode, the device can only be powered by extra power supply. At the mean time, lock input current shall be less than 800mA, otherwise the equipment may be damaged.
  • Page 15 Normally closed type Note: The door status alarm function can be switched off in two ways. Grounding GS port of the host. Enter "Door Status Alarm" and turn off the door status alarm switch.

  • Page 16: Chapter 4 Operation Instructions

    Chapter 4 Operation Instructions (1) Initialisation: When the device is first powered up, user needs to select the language (Simplified Chinese, Traditional Chinese, English) and working mode (Cloud Server Mode, Local Server Mode, No Server Mode). Notes: To change operation mode, please click on Restore Factory Settings within 60s of re-powering to re-select it.

  • Page 17: Unlock By Face Recognition & Code Scanning

    4.2 Unlock by Face Recognition & Code Scanning Interface of Face Recognition & Code Scanning After clicking on main screen, Outdoor Station scans face or unlocking QR code and after identifying it as correct, door unlocks. Note: When registered users approach the Outdoor Station with their face facing device camera, it automatically enters face recognition function to unlock the door.

  • Page 18: Unlock By Pin

    4.3 Unlock by PIN Interface of Unlock (public PIN/unlock PIN, resident PIN) User clicks on main screen and enters public PIN/unlock PIN/resident PIN. Public PIN: The door will be unlocked when user enters public PIN and it is recognised as correct. The default public PIN is 666666, which can be changed in "Setting - Unlock Setting".

  • Page 19: Calling

    4.4 Calling Interface of Contact List (outdoor station/gate station), Interface of Dialing (outdoor station/gate station) Interface of Dialing(villa outdoor station) (1) When the device is used as an outdoor station/gate station, visitors can call corresponding household through Contact List by clicking on main interface.
  • Page 20 Click in the top right corner to switch from Contact List screen to Dialing screen, where visitor can call corresponding household by entering room number. (2) When the device is used as a villa outdoor station, visitors can click on Call button directly without entering room number by clicking on main interface.

  • Page 21: Chapter 5 Setting

    Chapter 5 Setting Click in the top right corner of main interface to enter into engineering setting page---- input password “801801”(default engineering password), entering General Setting interface. Login interface of Setting...

  • Page 22: Sound Setting

    5.1 RingTone Setting Interface of Sound Setting （1）Unlock Tone: When it is switched on, there will be an audible feedback when the door is unlocked. （2）Card-swiping Tone: When it is switched on, there will be an audible feedback when user swipes the card. （3）Keyboard Tone: When it is switched on, there will be an audible feedback on the device's tapping actions.

  • Page 23: Time Setting

    5.2 Time Setting Interface of Time Setting （1）Auto Sync: When it is turned on, the device will automatically synchronise network date and time, and manual setting option will not be available. （2）Manual Setting: Turn off Auto Sync and you can set the year, month, day and hour of device manually.

  • Page 24: Unlock Setting

    （1）Available Languages: Simplified Chinese, Traditional Chinese, English. 5.4 Unlock Setting (1) Unlock by face recognition: When it is turned on, users with registered faces can unlock the door with face recognition through device camera. (2) Unlock by card: When it is turned on, users can unlock the door by placing registered access card close to card swipe area on device.
  • Page 25 Interface of Public PIN Setting (8) Unlock by face&card: When it is turned on, the device will be unlocked by both correct face recognition and card. Note: This function is not available in No Server Mode. (9) Unlock by face&public PIN: When it is turned on, the device will be unlocked by both correct face recognition and correct public PIN.

  • Page 26: Call Setting

    5.5 Call setting Call setting interface （1）Call management center:After turning on this option, turn on this function on the main interface and click Call Management Center. （2）Dial call: After turning on this option, turn on this function on the main interface, and enter the room number to call the corresponding household.

  • Page 27: Contact List Management

    5.6 Contact List Management Contact List Management Interface （1）Check: Enter the contact name in the search box, and the list below will display the searched contact information. （2）Name list: In this list, you can view contact name and corresponding room number information.
  • Page 28 Contact List Editing Interface Add contact interface &Delete all contact interface...

  • Page 29: Face Management

    5.7 Face management Face management(in server-less mode) face management interface (local/cloud) （1）In no server mode, you can register, check, delete, and clear face information on the device. Face data can be backed up and synchronized. The maximum storage capacity is 20,000 sheets. Registration: In the face registration interface, enter the face name first, click OK, enter the face input interface, and prompt "registration successful"...

  • Page 30: Access Card Management

    5.8 Access card management Car Management interface(No Server) 、 Access card management interface (local/cloud) （ 1 ） In no servers mode, you can register, check, delete, and clear the access card information on this device. Access card data can be backed up and synchronized. The maximum storage capacity is 20,000 sheets.

  • Page 31: Data Synchronization (Server-Less Mode)

    5.9 Data synchronization (no server mode) The data synchronization function on the device can only be used in the no server mode, and is mainly used to transfer card data and face data on this device to another device. The user needs to enter the region and device number of the target device, select the device type (Outdoor Station/Gate Station) and data type (card data, face data), and after clicking Sync, prompt "Sync Successfully"...

  • Page 32: Lift Control

    Data Backup Interface 5.11 Lift Control Lift Control Interface （ 1 ） Life control: After opening this item, open the door and unlock it through face recognition, card swiping, unlocking code, and user password. （ 2 ） Floor where the device is located: Select the floor where the device is located. Optional range: -8 ~ 64 floors, except 0.

  • Page 33: Alarm Setting

    5.12 Alarm Setting Alarm setting interface （1）Tamper alarm: After turning on this option, if the device is removed by external force, the device will beep and the management center will receive an alarm notification. （2）Disconnection alarm: When this option is enabled, if the device is disconnected, the device will beep and the disconnection icon will be displayed in the status bar.

  • Page 34: Engineering Setting

    5.13 Engineering Setting Engineering setting interface Device Property 5.13.1 Select the type of equipment Outdoor Station,Villa Outdoor Station, Gate station) according to the actual installation location of the current equipment. After selecting the equipment type, the door machine needs to enter "building number - unit number - code number", the Gate Station needs to enter "Code Number", and the Villa Outdoor Station needs to enter "building number - unit number - apartment number - code number".
  • Page 35 Face Recognition Setting 5.13.2 Face recognition settings include: face anti-spoofing, threshold value, camera wake-up distance adjustment. Face recognition setting （1）Face anti-spoofing: When this option is turned on, the device performs live detection, and non-living registered faces cannot be successfully unlocked. （2）Threshold value: Face recognition threshold (high, medium, low), the degree of matching of different levels corresponding to face recognition.
  • Page 36 Movement Detecting Setting Interface （1）Switch: When this option is turned on, the device camera will detect motion. If the moving object is close to the door station, the door station lights up the screen and enters the main interface. If the device detects a face, it enters the face recognition interface. （2）Sensitivity adjustment: The detection sensitivity of the device camera to the movement of the human body can be adjusted.
  • Page 37 Engineering PIN setting interface Community Code Setting 5.13.5 In cloud server mode or local server mode, it can be manually entering the community identification code or clicking the "Configured" button, the device scans the community QR code to associate the device to the corresponding community. Community code setting interface Wiegand Setting 5.13.6...
  • Page 38 sequence selection (forward and reverse sequence). Wiegand setting interface Lock #2 Interface Setting 5.13.7 Optional Lock2 interface functions, including: alarm output, electric lock control, doorbell control Lock2 interface setting 12V output setting. 5.13.8 You can choose whether to output 12V voltage. Select the output 12V voltage, and the...
  • Page 39 Lock2 interface function will take effect. 12V output setting interface Encrypted unlock instructions 5.13.9 When this option is turned on, the device enables the encrypted unlock command Allow data transfer 5.13.10 When this option is turned on, the device will allow data transfer. Allows sending and receiving data for contacts, faces, access cards.
  • Page 40 About interface 5.14.2 Device rebooted Click this option to confirm the reboot, and the device will restart. Device rebooted interface 5.14.3 Factory data resetting After clicking this option, after the confirmation, the device will execute the factory reset and the user needs to reconfigure it. Note: Factory reset within 60s of power-on, all data in the device is restored to default, and...
  • Page 41 the user needs to re-select the language and working mode. After 60s of power-on, the factory settings are reset, and all data in the device is restored to default, and the user only needs to select the language again. Factory reset interface...
  • Page 42 Chapter 6 Appendix 6.1 Procedure for data backup （1）Copy from device to PC (Figure 1) 1.Select“Tftp Server” 2.Current directory: Click the "Browse" button and select the path. The card data and face data are copied to this folder. 3.Server interfaces:Click the drop-down button to select the IP address of the computer. 4.In the "Data Backup"...
  • Page 43 5.After the data transfer is completed, the corresponding information can be seen in the "Access Card Management" and "Face Management" interfaces on the device, which means that the copy is successful. Figure 2 download interface 6.2 Procedure for local upgrade Please turn off the computer firewall before use.
  • Page 44 Local upgrade interface...
