User Manual

Indoor Station

T series 5 inch Indoor Station User Manual_V1.0

T-IS16

Need help?

Do you have a question about the T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GVS T Series

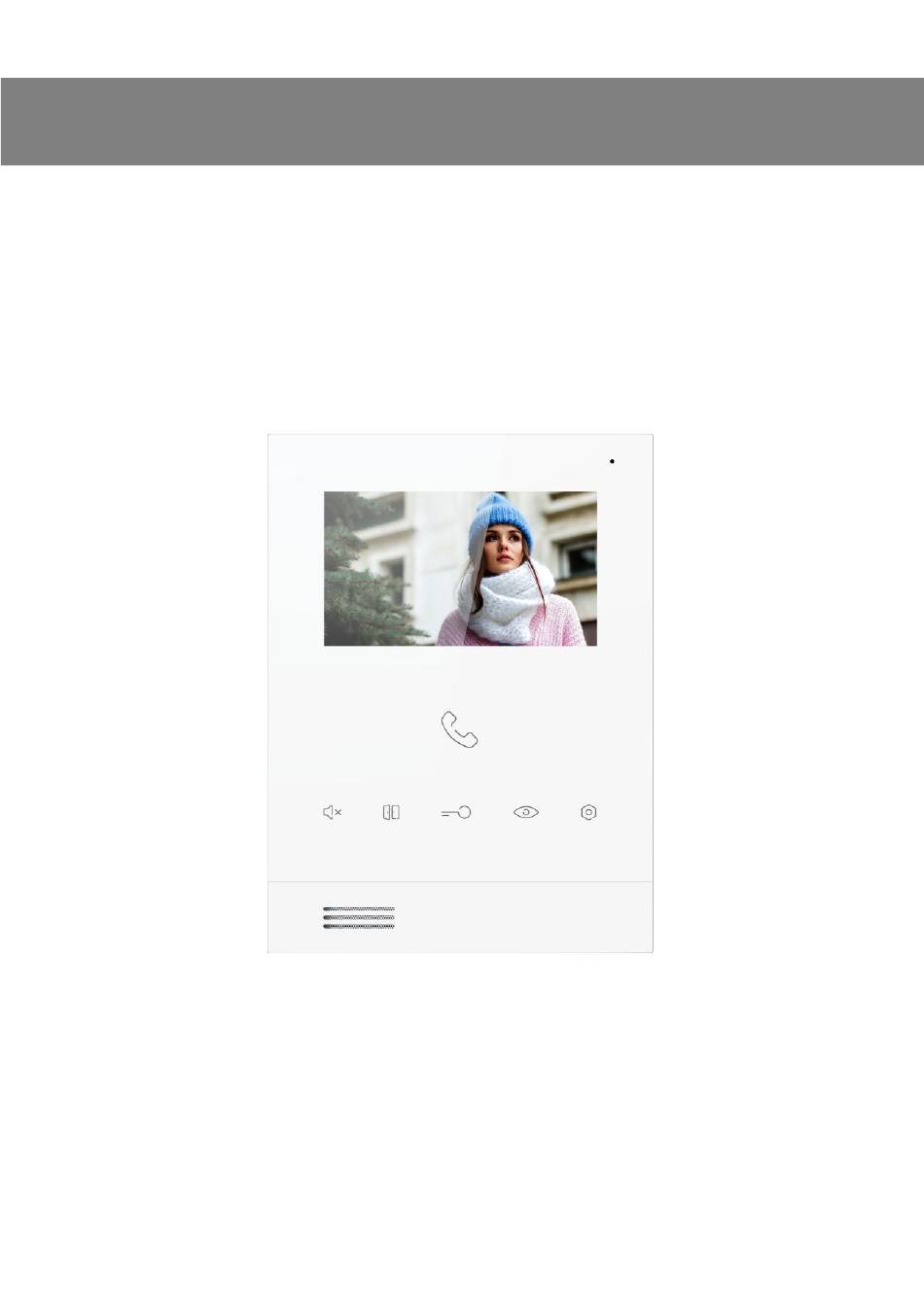

Page 1 User Manual Indoor Station T series 5 inch Indoor Station User Manual_V1.0 T-IS16...
Page 3 Content Chapter 1 Function in brief ................1 Chapter 2 Product Introduction ..............2 2.1 Product Appearance ................. 2 2.2 Product Dimension ................3 2.3 Interface Description .................4 2.4 Parameters ..................4 Chapter 3 Basic Functions ................5 3.1 Power-up ...................5 3.2 Call Answer ..................5 3.3 Function details .................6 3.3.1 Record ..................
Page 4 Chapter 1 Function in brief This product is a part of the 2-wire analog video door phone system. The system consist of Power Supply, Outdoor Station, and Indoor Station, each part is connected to the system via 2 core wires. The functions and characteristic of this product are as follows: Support visual intercom, unlock ...
Page 5 Chapter 2 Product Introduction 2.1 Product Appearance Touch Key Instruction: : Dial, answer, hang up the call （1） Sound off icon （2）： Unlock 1 icon （3）： Unlock 2 icon （4） Monitor icon （5）： Setting icon （6）：...
Page 6 2.2 Product Dimension...
Page 7 2.3 Interface Description (1) No.①: Two-wire bus interface (2) No.②: Independent power interface (DC 21 ~ 32V) (3) No.③: Primary and secondary extension selection/end matching switch) (4) No.④: Doorbell interface 2.4 Parameters Working voltage: DC 12 ~ 30V Quiescent current: ≤ 90mA (DC 30V) Working current: ≤...
Page 8 Chapter 3 Basic Functions 3.1 Power-up Power on for the first time (bus power +30V or independent power DC +12-30V) → Tap the screen to enter the language selection screen, select the corresponding language, and click OK → Enter the main screen. 3.2 Call Answer Basic workflow: Ring bell Call...
Page 9 Attention: (1) By default, the system automatically captures a photo of the visitor in the first 3S of the calling. You can manually capture the photo, and the captured photo will be saved in the call record. (2)When the outdoor station is equipped with a second lock, you can click the icon to unlock NO.2 lock for the visitor.
Page 10 3.3.1 Record Record is used to store the call records of the indoor monitor. Click the icon on the main interface to enter the Call Record interface, as shown in the figure below. 1. Clear: Click the Clean All button to clear all call records. 2.
Page 11 3.3.2 Wallpaper Wallpaper is used to set the background wallpaper of the indoor monitor. Click the icon on the main interface to display the Wallpaper Setting interface, as shown in the figure below. 1: Click to select the background image, and click Finish to set the selected image as the main interface background.
Page 12 3.3.3 Call Call is used for initiating external intercom and indoor intercom. Click the icon on the main interface to enter the Call interface, as shown in the figure below. 1. External Intercom Enter the correct room number (1-200) in the input box, click the icon to call the corresponding indoor monitor.
Page 13 3.3.4 Voice Message Voice Message is used for users to record messages. Click the icon on the main interface to enter the Voice Message interface, as shown in the figure below. 1. Record Message Click the red button on the left to start recording → click the red button again to end;...
Page 14 Attention: At present, a maximum of 30 voice messages can be recorded, and the earliest one will be overwritten when the number reaches 3.3.5 Monitor Click the icon on the main interface to enter the Monitor interface, where you can check the surveillance of the outdoor station, as shown in the figure below.
Page 15 3. Call in Surveillance (1) Basic workflow: Monitor Talk Call ended (2) During the surveillance of the outdoor station, resident can click the icon to talk with the visitor, and press to end the call. Attention: (1) Captured pictures and videos will be saved in the call log. (2) When the outdoor station is equipped with a second lock, you can click the icon to unlock NO.2 lock for the visitor.
Page 16 Short press to mute the unit and long press to mute the room for 3 seconds. 3.3.7 Bind Click the icon to jump to the cloud intercom binding setting interface, you can perform cloud intercom binding operation; After the binding is successful, the icon is hidden on the home screen.
Page 17 (1) Brightness: slide the slider to adjust the screen brightness; (2) Start screensaver(sec) : Set the screensaver time, which can be set to 30-255 seconds. (3) End screensaver(min) : sets the end time of the screensaver. The value ranges from 1 to 10 minutes. After the end of the screensaver, the system enters the standby state of black screen.
Page 18 (1) Do not disturb: Click the Do not disturb icon to mute the ringing, (2) When there are multiple monitors in one apartment, long press the Do not disturb icon to mute all monitors synchronously, and short press this icon to mute the current device only. 4.
Page 19 5. Network Click the Network item on the left menu bar to enter the Network Setting interface. (1) Wi-Fi switch: To turn on/off WiFi. (2) Available Networks: Available WiFi list, click to connect the selected available WiFi. 6. Cloud Intercom Setting Cloud Intercom Setting is mainly used to add/delete the APP account of Cloud Intercom.
Page 20 (1) Add new mobile account: Click the Add new mobile account button → enter the interface for adding a cloud intercom account, and open the Smart Home + APP to scan the QR code on the interface. 7. About About is mainly used to view the Software Version、MCU Version、Cloud intercom、Room number、IP、Mask、Gateway、...
Page 21 8. Password Setting Password Setting is mainly used to reset the user password. Click the Password Setting item on the left menu bar to enter the Password Setting interface.
Page 22 Reset user password workflow: Enter the project password, click the OK button, if the password is correct → jump to the user password setting interface, enter the old password, new password and the confirmed new password, click the OK button. 9.
Page 23 (1) Password Resetting: Reset the user password to the initial user password 666666. (2) Clear all data: Clear all data, including: passwords, images, videos, etc.  Enter the user password (the initial user password is 666666) to enter the User Setting interface.
Page 24 Chapter 4 Installation 4.1 Installation Height...
Page 25 4.2 Installation Illustration ① Step 1:Bracket installation Drive the screws on the bracket with the holes on the 86 box. (Attention:The direction of the frame, arrow facing up), Fasten the screws to fix the bracket Wall 86box Frame Screws ② Step 2: Install the whole machine Connect the cable to the...
