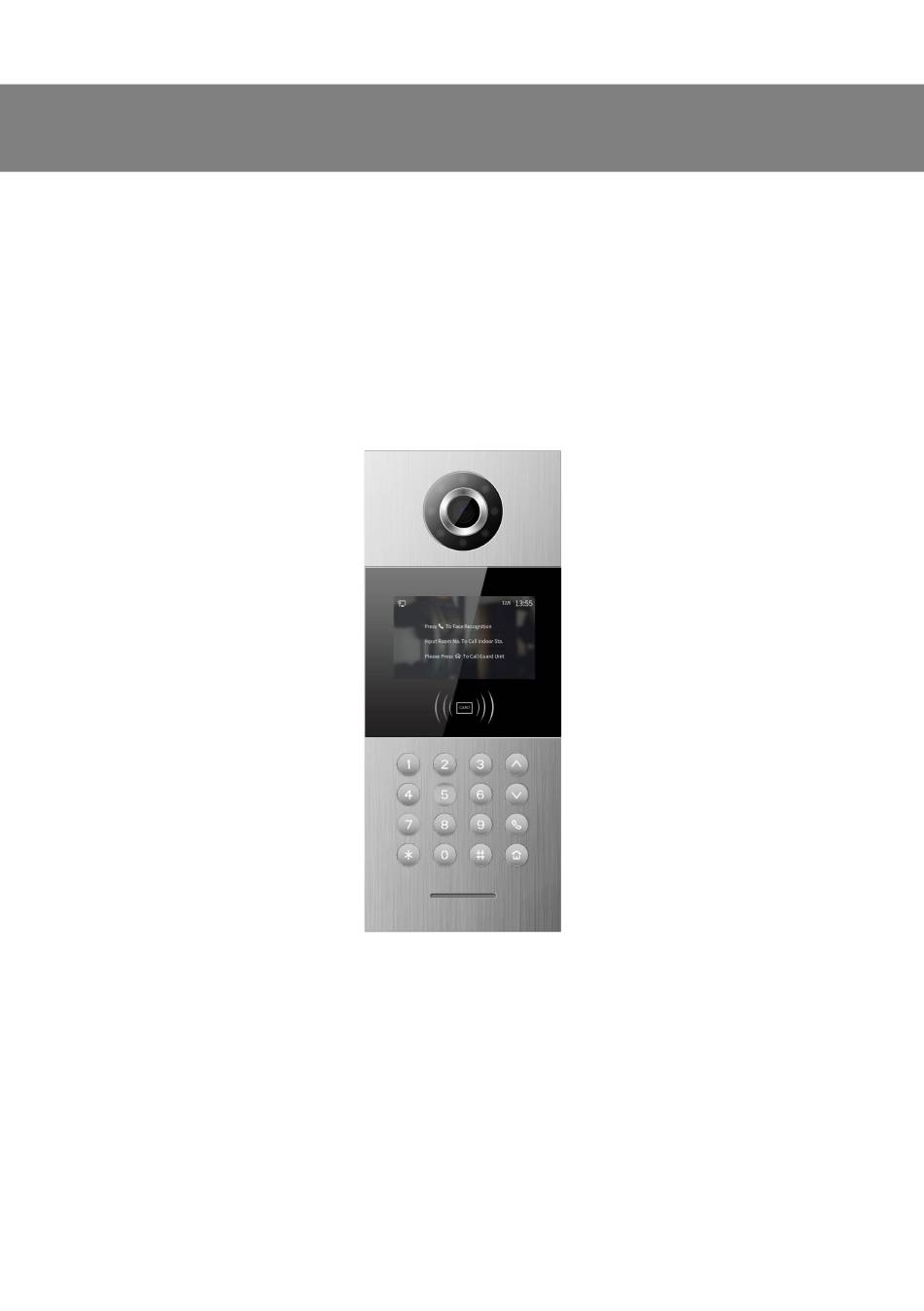

- Page 1 User Manual Outdoor Station H Series - Outdoor Station With Face Recognition User Manual_V1.0 Model Number: H-OS09...
-
Page 3: Table Of Contents
Content Chapter 1 Overview ........................1 1.1 Functions and Characteristics ..................1 1.2 Parameters ........................1 Chapter 2 Appearance and Interface ..................2 2.1 Front View ........................2 2.2 Product Dimension ....................... 3 2.3 Rear View ........................4 Chapter 3 Installation ........................ 5 3.1 Installation Illustration .................... - Page 4 7.5 Proximity Detection ....................27 7.6 Community Code Config....................27 7.7 Help ..........................28 7.8 Factory Test ......................... 28 Appendix: Frequently Asked Questions ................29...
-
Page 5: Chapter 1 Overview
Chapter 1 Overview The Outdoor station is one of the main parts in digital video door phone system .It’s connected with Indoor Monitor, Guard Unit and other devices in the system by standard CAT5 cable.It supports human approach detection, face recognition unlock and RFID (IC) access control. -
Page 6: Chapter 2 Appearance And Interface
Chapter 2 Appearance and Interface 2.1 Front View Carema Angle Adjustment Display Area Card Reading Area Keypad Area Wring Area Speaker... -
Page 7: Product Dimension
2.2 Product Dimension... -
Page 8: Rear View
2.3 Rear View ① Interface for power supply: DC 24V (interface for independent power supply, working voltage DC: 18-30V) ② +12V: Only when the Outdoor Station input voltage>18V, +12V is given. COM, NO, NC: Common pin, normally-open pin, and normally-closed pin. GS: Door status detection. -
Page 9: Chapter 3 Installation
Chapter 3 Installation 3.1 Installation Illustration ① Embedded box dimension（W/H/D）： 132×340×50 mm ② Embedded box Step 1: Put the embedded box into the Preformed groove preformed groove. After getting the cable out through the opening, fasten the box with nails or by cement. -
Page 10: Installation Height
3.2 Installation Height Recommended Installation Height: 1.6 meters... -
Page 11: Wiring Instructions
3.3 Wiring Instructions Unlock signal wiring Power Supply Normally closed lock wiring(Magnetic lock ) Power Supply Normally open lock wiring((Electronic lock) Note: If the lock powered by the outdoor station, the outdoor station should be powered by the independent power supply, and the current input should be less than 800mA, otherwise it will cause the damage. - Page 12 Note: The wiring is Non-polarity Door status alarm wiring Normally closed lock Note: There are 2 ways to turn off the door status alarm 1. Connecting the port of GS on the outdoor station to the ground 2. Enter the outdoor station menu,“Engineer Setting -> System Setting -> Door status alarm”...
-
Page 13: Chapter 4 Operation Instructions
Chapter 4 Operation Instructions 4.1 Call Indoor Monitor After inputting room number(like 0101) to start the call. it will have the ring-back tone during the call and press “*” to cancel the call. If there is no any answer within 30 seconds, it will be ended automatically. Remark: The room number of Gate Station is building(1～99)+unit(1～9)+room no., like 011+0107. - Page 14 4.3.4 Unlock by Face 1) When visitor is approach to the Outdoor Station and face the camera, the Outdoor Station will automatically enter the face recognition interface. Interface of face recognition 2) For registered face, keep standing in the middle of the screen, if identified successfully, a pop-up message of “Door Opened”...
-
Page 15: Face Registration And Management
4.4 Face Registration and Management Residents can register and manage faces via this device or PC. 4.4.1 Face Registration via Outdoor Station In Face Unlock Interface, click “ # ” to enter Face Registration Management, residents can choose using room number or user card for registration. 1.Register by room number Residents input the correct room number and user password to enter the face registration interface. - Page 16 2.Register by swiping user card Administrator can swipe the patrol card to enter the interface of administrator face registration. Remark: This card should be authorized by PC Management Center in advance. During the registration, please keep your face in the middle of the screen, a message “done”...
- Page 17 4.4.3 Face Management In Face Registration interface, click Manage to view the face list, user can press up and down button to check the registered face. Interface of face management Press “ # ” button to delete the registered face and “ * ” to return to the previous interface.
-
Page 18: Chapter 5 Setting
Chapter 5 Setting 5.1 Standby Interface Standby Interface 5.2 Login Setting Interface Press "#" and then "*" key, enter into the login interface of engineering settings. Default password is "801801" Login interface of settings 5.3 Setting Interface Input the correct password then press "#" key to confirm and enter. Press the up/down button to choose the item of setting and enter it. -
Page 19: Chapter 6 System Setting
Chapter 6 System Setting System setting interface is shown as below, including Volume Setting, Date And Time Setting, Language, Unlock Setting, Card Management, Face Registration, Unlocking Duration and Wiegand Setting. Press the up/down button to choose each option and enter the corresponding setting interface. System setting interface 6.1 Volume Setting Volume Setting interface is shown as below, users can press the up/down button to... -
Page 20: Time Setting
6.2 Time Setting Time Setting interface is shown as below, users can press the up/down button to select each option and modify it’s number. After setting is done, press “#” to confirm. Date And Time interface 6.3 Language Setting Language Setting interface is shown as below, users can press the up/down button to choose the language, then press “#”... -
Page 21: Unlock Setting
6.4 Unlock Setting Unlock Setting interface includes: QR Code Unlock, Face Unlock, Random Password Unlock, Public Password Unlock and Public Password Modification. Users can press the up/down button to the corresponding interface . After setting is done, press “#” to confirm or “*”... - Page 22 User card interface Registration and Deletion In card registration interface, swipe a card or input the card numbers to register. After finishing registration, press “*” to return to previous menu. While inputting wrong numbers, press the deletion key “*” to delete each number. The operation of Card Deletion is same as Card Registration.
-
Page 23: Unlocking Duration
Card information interface Delete All Users Click this option, a message will pop-up for confirming the operation (delete all?), press “#”to confirm and all users will be erased, or press “*” to return to previous menu. Copy Card Data ... -
Page 24: Wiegand Setting
to confirm and return to previous menu. Interface of unlocking duration 6.7 Wiegand Setting This function offers user to turn on/off Wiegand and set the sequence. Wiegand setting interface Sequence setting interface... -
Page 25: Chapter 7 Config. Setting
Chapter 7 Config. Setting Configuration Setting includes System Property, Device Property, Face recognition, Configuration Password, Proximity Detection, Community Code Config., Help and Factory Test. Press up/down button to enter the related setting. Configuration setting interface 7.1 System Property System Setting interface is shown as below, including: Unit Dialing Digit Setting，Door State Alarm, Tamper Alarm and Auto Push. - Page 26 Interface of dialing setting While setting as Gate Station: Users can choose 1, 2 or 3 digits for dialing Unit number, and choose 3 or 4 digits for dialing Indoor Monitor number. Related instruction please refer to the dialing Illustration shown as below.
- Page 27 Illustration of Units: 1-digit 2-digit 3-digit 1 digit of unit No. Digit number 1 digit of unit No. 2 digit of unit No. (building number of units + 1 digit of building automatic + 1 digit of building No. zero-filling) Illustration of Indoor Monitor number: 3-digit 4-digit...
-
Page 28: Device Property
Auto Push To open or close the Auto Push for cloud intercom function. 7.2 Device Property The device can either be used as Outdoor Station or Gate Station, depending on the definition of device property. Select the device type, an “•” icon will show behind the option, then press “#”to confirm. -
Page 29: Face Recognition Setting
7.3 Face Recognition Setting Interface of Face Recognition setting Live Detection Users can chose whether to open Live Detection or not, press “#” to confirm, “*” to return to Face Recognition Setting interface. Remark: If Live Detection is opened, resident need to turn their face to left and right side slightly while they are using Face Unlock;... -
Page 30: Config. Password
Users can setup the maximum number of face storage of each apartment, optional: 10, 20, 30. Press “#” to confirm, “*” to return to Face Recognition Setting interface. Threshold Setting Interface of Threshold Setting In this interface user can configure the threshold of face recognition(High, Medium, Low), each level corresponds to the accuracy of face matching. -
Page 31: Proximity Detection
7.5 Proximity Detection User can choose to open/close this function, press “#” to confirm and “*” to return Face Recognition interface. Proximity detection interface 7.6 Community Code Config. To add the Community Code to the Outdoor Station. After adding successfully, the Community Code will show on the interface. -
Page 32: Help
7.7 Help The company information interface can be customized(reserved). In “Version No.” you can find version of the system, IP address, MAC address, etc. Help interface 7.8 Factory Test There are various testing programs on factory testing interface, most frequently used are “Reboot System ”... -
Page 33: Appendix: Frequently Asked Questions
Appendix: Frequently Asked Questions Question 1: Unable to open the door with signal lock? Please go to the lock type settings in the unlocking configuration and select signal lock.
