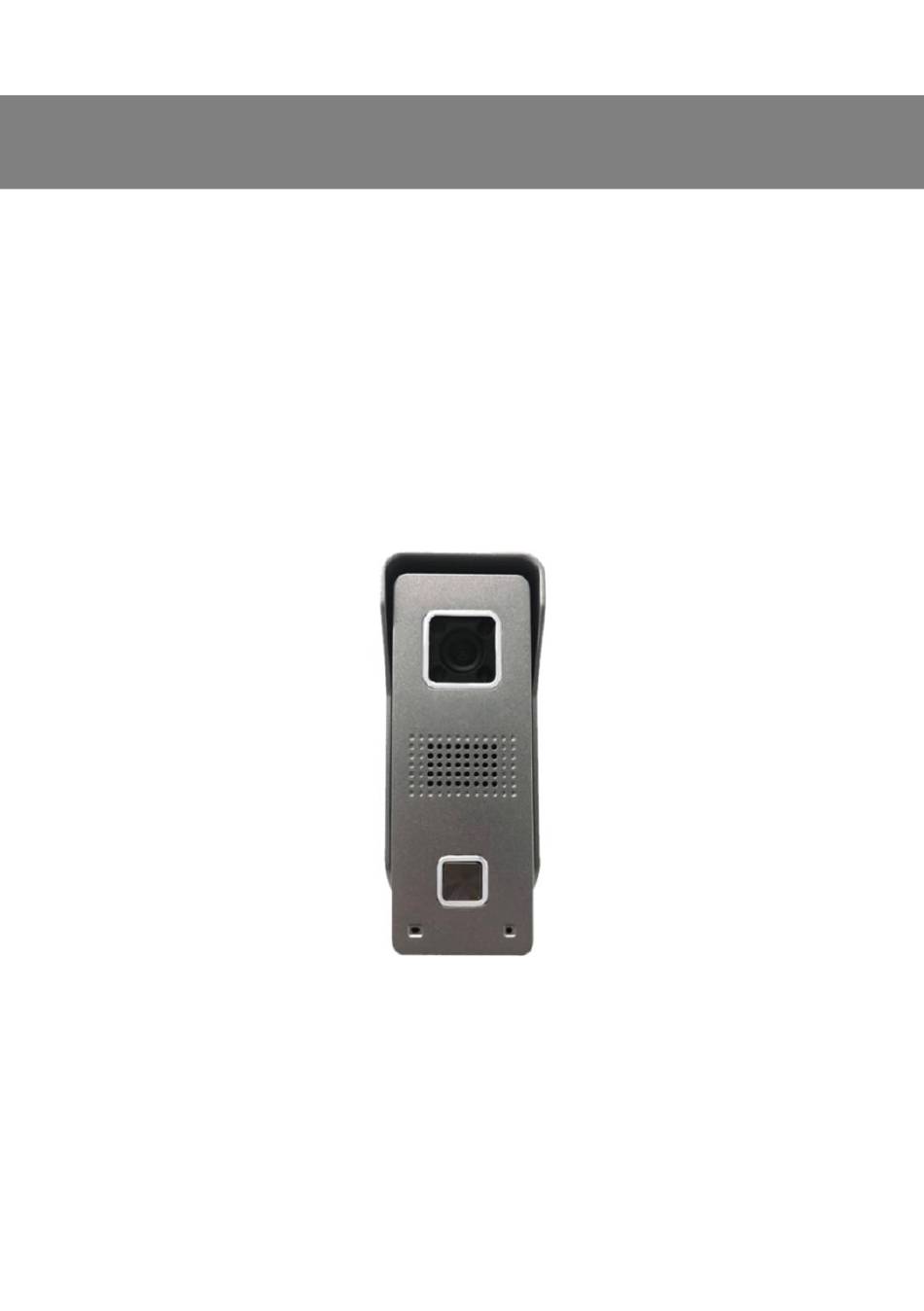

- Page 1 User Manual Slim Mini Outdoor Station H Series Digital System Slim Mini Outdoor Station Manual_V1.0 Model Number：H-VS05...
-
Page 3: Table Of Contents
Content Chapter 1 Product Overview....................1 1.1 Function...........................1 1.2 Parameter........................1 Chapter 2 Product Introduction..................2 2.1 Product appearance....................2 2.2 Interface description....................3 Chapter 3 Installation......................4 3.1 Installation Steps......................4 3.2 Installation Height......................5 3.3 Wiring Instructions......................5 Chapter 4 Settings........................8 4.1 Paring of Mini Outdoor Station and Indoor Monitor..........8 4.2 Key Synchronization...................... -
Page 4: Chapter 1 Product Overview
Chapter 1 Product Overview The product is the slim mini outdoor station of the H Series Digital System VDP. By using standard CAT5 cables, it makes audio intercom call to indoor monitor and guard station possible. 1.1 Function Support calling to indoor monitor and guard unit ... -
Page 5: Chapter 2 Product Introduction

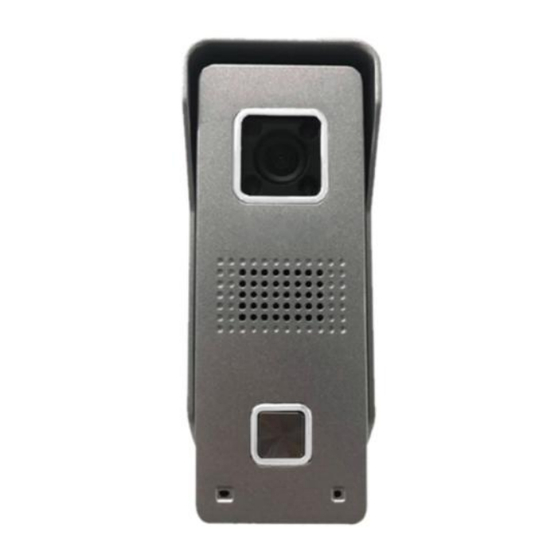

Chapter 2 Product Introduction 2.1 Product appearance Fill in Light Camera Speaker Call Button Indicator light... -
Page 6: Interface Description
2.2 Interface description H-VS05 Interface Description RJ45: cable interface, connecting non-standard 24V POE switch NO(blue wire), COM(black wire), NC(yellow wire): normal open/close interface;... -
Page 7: Chapter 3 Installation
Chapter 3 Installation 3.1 Installation Steps Step 1: Align the screw holes of wall the wall bracket (rain cover) with screw the holes on the wall of the 86 86 box box, and tighten the screws to wire outlet secure the wall bracket (rain cover). -
Page 8: Installation Height
3.2 Installation Height 1.6m Suggested Installation Height: camera is 1.6m above the ground 3.3 Wiring Instructions Unlock signal wiring Power Supply ... - Page 9 Normally closed lock wiring(Magnetic lock ) Power Supply Normally open lock wiring((Electronic lock) Note: If the lock powered by the outdoor station, the outdoor station should be powered by the independent power supply, and the current input should be less than 800mA, otherwise it will cause the damage.
- Page 10 Normally closed lock Note: There is1 way to turn off the door status alarm 1. Connecting the port of GS on the outdoor station to the ground...
-
Page 11: Chapter 4 Settings
Chapter 4 Settings 4.1 Paring of Mini Outdoor Station and Indoor Monitor Within 3 minutes after powering the mini outdoor station, long press the keypad until 3 times short beeps, then short press the keypad with a long beep to enter setting. Press in indoor monitor project setting (code: 801801), then choose mini... -
Page 12: Key Synchronization
4.2 Key Synchronization In the case of multiple extension of indoor monitors in one apartment, if only one indoor monitor has been paired with the mini outdoor station, then that’s the only indoor monitor which unlocks the door and owns the admins rights, in which case, only this indoor monitor shows a highlighted mini outdoor station icon in relevant page while other indoor monitors not. -
Page 13: Chapter 5 User Instruction
Chapter 5 User Instruction 5.1 Calling Resident By short press the keypad of outdoor station, visitor starts to call the indoor monitor, whose ringtone will echo back. If the keypad is short pressed again during the call, then the waiting time will be recounted (each call waits for 30 seconds); if the keypad is long pressed during the call, the call will be diverted to the guard unit/management center;...
