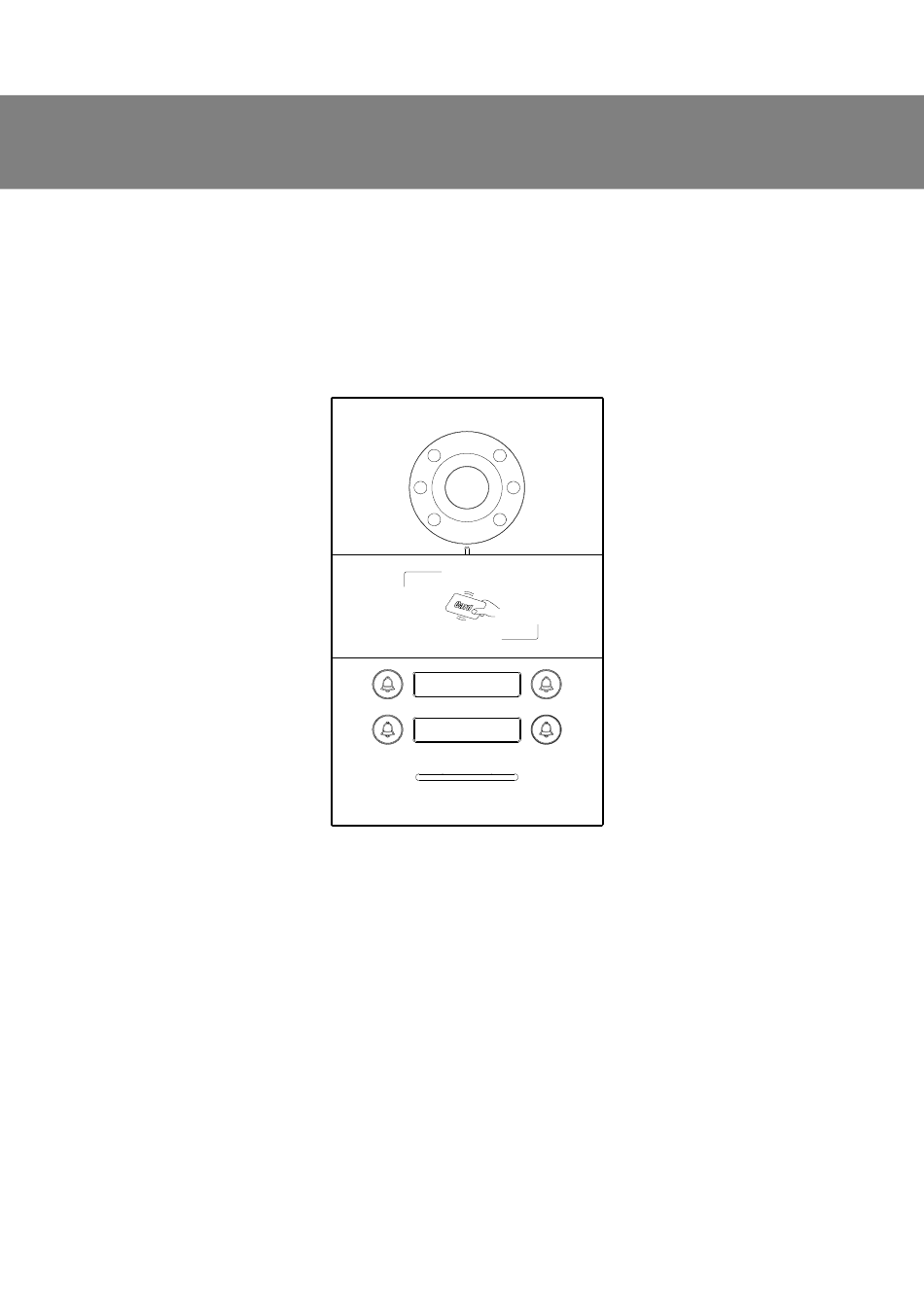

- Page 1 User Manual Mini Outdoor Station H Series VDP Mini Outdoor Station Manual_V1.1 H-OS04-IC...
-
Page 3: Table Of Contents
Content Chapter 1 Overview ....................... 1 1.1 Function ........................1 1.2 Parameter ........................1 Chapter 2 Product Introduction ..................2 2.1 Product Appearance ....................2 2.2 Product Dimension ....................3 2.3 Interface Introduction ....................3 Chapter 3 Installation ......................4 3.1 Installation Height ...................... 4 3.2 Installation Steps ......................5 Chapter 4 Function Description .................. -
Page 4: Chapter 1 Overview

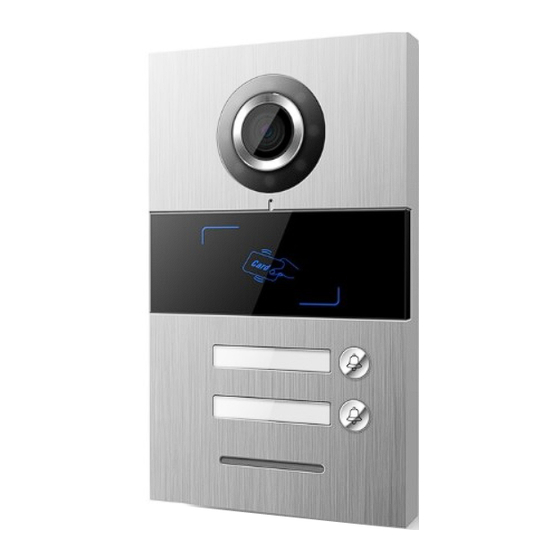

Chapter 1 Overview This product is the mini outdoor station (button type) of the H series IP Video Door Phone system, the cable used to connect is standard CAT 5, which enables video communication to indoor monitor/guard unit, it also supports IC card. -
Page 5: Chapter 2 Product Introduction
Chapter 2 Product Introduction 2.1 Product Appearance Camera Supplement Lamp Card Sensor Area Name Card Slot Call Button (User 001) Call Button (User 002) Call Button (User 003) Call Button (User 004) Speacker... -
Page 6: Product Dimension
2.2 Product Dimension 120.00mm 38.7 2.3 Interface Introduction ① ② Interface ①: RJ45: connect to 24V non-standard PoE switch Interface ②: NO, COM, NC: normal open/close interface GS, GS-GND: door status detection interface GND, DC+: independent power supply interface... -
Page 7: Chapter 3 Installation
Chapter 3 Installation 3.1 Installation Height 1.6M Suggested Installation Height: Camera is 1.6 meter above the ground. -
Page 8: Installation Steps
3.2 Installation Steps Step 1: install the backbox in the wall. Size of backbox (W/H/D)100.6×175.5×38.7mm Step 2: put the outdoor unit into the backbox and fasten with screws. -
Page 9: Chapter 4 Function Description
Chapter 4 Function Description 4.1 Factory Reset Cut off the power of mini outdoor station and reconnect with power, long press any key in the machine for THREE seconds within 180 seconds to enable factory reset, when it’s successful, the machine will beep (short di-di-di-sound). Then short press any key, when it’s successful, the machine will beep in a long di-sound. - Page 10 count down for another delete. If there’s no delete for 15 seconds, the machine will beep ONCE and return to stand-by. When finished delete, swipe admin card again the system will stand by. 3) Continuous Admin Card Registration When it’s in Card Registration Mode, swipe admin card THRICE to enter Continuous Admin Card Registration Mode (the machine will beep thrice), register admin card within every seconds continuously.
-
Page 11: Call
If there’s no delete for 15 seconds, the machine’ll beep ONCE and return to stand-by. NOTE: Admin Card + User Card ≤ 200pcs 4.3 Call By short press the button (0-3s), visitor starts to call indoor monitor, mini outdoor station will echo back the ring of indoor monitor and end in 30s if there’s no answer. -
Page 12: Unlock
You can select Unlock Timer to modify the configuration, and tap Execute. 4.8 Unlock 1) Entrance Card Unlock Swipe the registered card on the mini outdoor station to open the door. 2) Indoor Monitor Unlock When a call is received, the user can unlock the door from the indoor monitor. 3) Switch Unlock The monitor has built-in interfaces for connection with normal door unlock switch, when it’s connected, the door con be opened by pushing the switch (normally installed in the...
