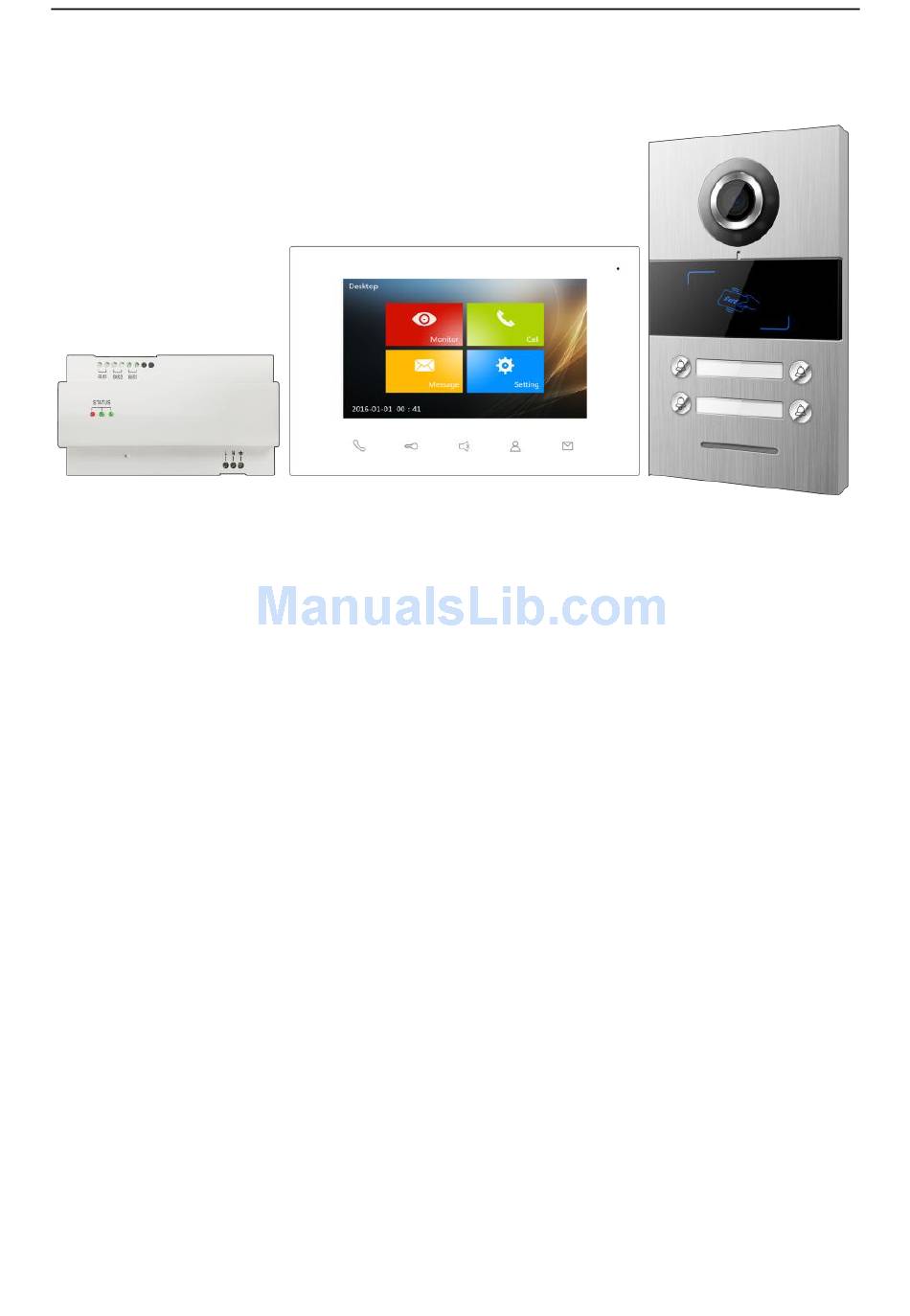

- Page 1 User Manual_T series T-OS01/T-IS01 T-PS01...
-
Page 3: Table Of Contents
Catalog Overview ............................. 1 Product Introduction ........................2 Indoor Station Appearance ....................2 Indoor Station Size ......................4 Interface Instruction of Indoor Station ................5 Indoor Station Specification .....................6 Outdoor Station Appearance ....................7 Outdoor Station Size ......................10 Interface Instruction of Outdoor Station ..............11 Outdoor Station Specification .................. - Page 4 How to install outdoor station: ..................32 Where to install the indoor station .................. 33 How to install indoor station: ................... 34...
-
Page 5: Overview
Overview This product is a video intercom system based on two wire analog solution, the system uses two core wire to connect power supply, the outdoor station and indoor station. The functions are as below: Visual Intercom, Unlock; Monitor;... -
Page 6: Product Introduction
Product Introduction Indoor Station Appearance Model：T-IS01-W H Model：T-IS01-W L... - Page 7 Model：T-IS01-W H Model：T-IS01-W L...
-
Page 8: Indoor Station Size
Indoor Station Size Model：T-IS01-W H Model：T-IS01-W L... -
Page 9: Interface Instruction Of Indoor Station
Interface Instruction of Indoor Station ② ④ ③ ①... -
Page 10: Indoor Station Specification
①： BUS1-A BUS1-B ： Bus Port 1 ； BUS2-A BUS2-B ： Bus Port 2 ； EXT-DC24V GND ： Auxiliary Power Supply 24V ； GND DoorBell ： Interface of doorbell button ； ②： 1 ： Setting on Master-Slave devic ； 2 ： Impedance matching of video terminal ； ③：Doorbell port；... -
Page 11: Outdoor Station Appearance
Outdoor Station Appearance Model：T-OS01-S-IC-01 Model: T-OS01-S-IC-02 Note: These models are for IC card only. Model：T-OS01-S-IC-04... - Page 12 Model：T-OS01-S-IC-01 Model：T-OS01-S-IC-02...
- Page 13 Model：T-OS01-S-IC-04 Note: The Call button are related to different indoor station, please refer to the indoor station settings.
-
Page 14: Outdoor Station Size
Outdoor Station Size Note：The above image is based on T-OS01-S-IC-02, the other models are the same size. -
Page 15: Interface Instruction Of Outdoor Station
Interface Instruction of Outdoor Station ① ③ ② Unlock timing settings, details in page 30 ①： BUS-A 、BUS-B：Bus Port； NO、 COM 、NC ：Normal on/off port； ③： GS ：Door status checking； Outdoor Station ADD Settings, details in DOOR SW：Unlock inside； page 30 GND ：Public Area；... -
Page 16: Outdoor Station Specification
Outdoor Station Specification Working voltage ： DC 24~32V Idle current ：≤ 25 mA (DC32V) Working current ：≤ 150 mA (DC32V) Camera type ： CMOS PAL Camera pixel ： 30W Visual angle ： 90 ° Fill-in light ： White light Size (L*W*D): 120 * 194 * 44.7 mm... -
Page 17: Power Supply Appearance
Power Supply Appearance Model：T-PS01... - Page 18 Front Side: Back Size:...
-
Page 19: Power Supply Size
Power Supply Size... -
Page 20: Interface Instruction Of Power Supply
Interface Instruction of Power Supply BUS1 、 BUS2 、 BUS3 ： Bus Interface ； L 、 N 、 :AC Port ； L connect Live wire ， N connect null wire ， connect earth wire. Note: ① The left red light will flash while the working in the bus line. ②... -
Page 21: System Connection
System Connection Note: ① The most devices of system: 2 outdoor station+16 indoor station. ② The distance Ais the longest length between outdoor station 1 & 2, the distance B is the whole length between the power supply and the last indoor station. -
Page 22: Indoor Station-Basic Function & Settings
Indoor Station-Basic Function & Settings Standby Interface 1、 Monitor 3、 Message touch icon to enter the touch icon to enter Message monitor interface ， you can operate to interface ， you can view the snap, video ； make snap or video record. 4、... -
Page 23: Visitors' Intercom
Visitors’ intercom Ringing Procedure：Ringing Intercom Unlock Incoming calls： 1 、 Visitors use the outdoor station to call the indoor station and the indoor station will ring. 2 、 After residents touch , the conversation begins. 3 、 During the conversation ， the residents can touch to unlock the door ，... - Page 24 Setting Setting： 1 、 While the visitors calling, you can touch for setting operation. 2 、 Setting: Brightness, contrast and chroma Snap： 1 、 While the visitors calling, you can touch to make screenshot. 2 、 The snap pictures are stored in the call records. Video Record：...
-
Page 25: Monitor
Monitor Monitor Monitor & Unlock Visitors’ intercom Procedure： Procedure：Monitor Intercom While monitoring the outdoor station, the Select the monitor Monitor Unlock resident can touch to communicate 1 、 Touch icon, select with visitors. the monitor device type. The outdoor station 1 (ADD 1) will be monitored acquiescently 2 、... -
Page 26: Call Out
Call Out On the main interface, touch to enter calling interface. Call out Units’ intercom Rooms’ intercom Procedure：Call Ring Procedure：Call Conversation Conversation 1 、 Touch to start 1 、 Enter the room no and touch the intercom. 2 、 Hear ring back tone. 2 、... -
Page 27: Message
Message Touch to enter message interface, check the snap/video Message Photos Touch for checking. Photos Touch to select the next photo, touch to select the previous one. to delete photos ， touch Touch to delete all photos. - Page 28 Video Touch to check the videos. Video Touch to select the next video, touch to select the previous one. to delete vido ， touch Touch to delete all photos. Version to check the version info ， including the MCU and Address. Touch Version...
-
Page 29: Indoor Station Setting
Indoor Station Setting Ring Setting On the main interface, touch ring setting: Ring setting Ringtone Of OS: to set the ringtone of outdoor station or indoor station ； Ringtone Volume: to set the ringtone volume of outdoor station or indoor station ； Ringtone Of IS: to set the ringtone of indoor station Time setting On the main interface, touch... -
Page 30: Language Setting
Language setting On the main interface, touch Language, to set the language. Language It’s a must to set the language when the device is started at 1 time. Advanced Setup Advanced setup ， input the password to enter On the main interface, touch Password Note1：... - Page 31 Address Settings 高级设置界面 Touch the and set the address. Address Note： A. Address should be the number of 1 to 100 B. The address of indoor stations in one house should be the same.
- Page 32 Password Setting Touch the and set the password. Password Input the Old password and the new password to confirm Default Setting and “Yes” to reset the device. Touch Default...
-
Page 33: Outdoor Station Settings
Outdoor Station Settings Default Setting Cut off the power of outdoor station, and restart it; The outdoor station ADD is 0, long touch any key for 3s, it will long ring after setting successfully. Register Card Settings Register Admin Card After the outdoor station reset, the first card to swipe will be the Admin card, it will long ring after setting successfully. -
Page 34: Unlock Time Setting
Clear User Card In standby mode, swipe the Admin card 5 times to enter the Clear User Card Mode and it rings 10 times. Within 15s’ time, it will delete all user cards. It will long ring after success. When it fails to delete, it will keep ringing and return to standby mode automatically;... -
Page 35: Installation
Installation Where to install the outdoor station: Suggesting height of installation：1.6m... - Page 36 How to install outdoor station: Step 1：Install the wall-in box， installation dimension （W/H/D） 100 * 180 *40mm Step 2：Put the outdoor station into the wall-in box, and fix it with screw.
- Page 37 Where to install the indoor station Suggesting height of installation：1.5m...
- Page 38 How to install indoor station: Step 1 ： Aim the screw hold of bracket with the holes of 86 box. Tighten the screw and fix the bracket Step 2 ： Connect the indoor station with wire, and aim the slot with the hanger of bracket. Then, move down the device a little bit.
- Page 39 How to install the power supply 第一步 Step 1: Install the holding bracket and Tighten the screw and fix the bracket. Step 2 ： Aim the power supply box to bracket, and insert the fixing slot first, then spin the power supply and press till you hear the “Ka ta”.
