DIGIWAY PLUS
Fully automated operator for inward or outward opening doors

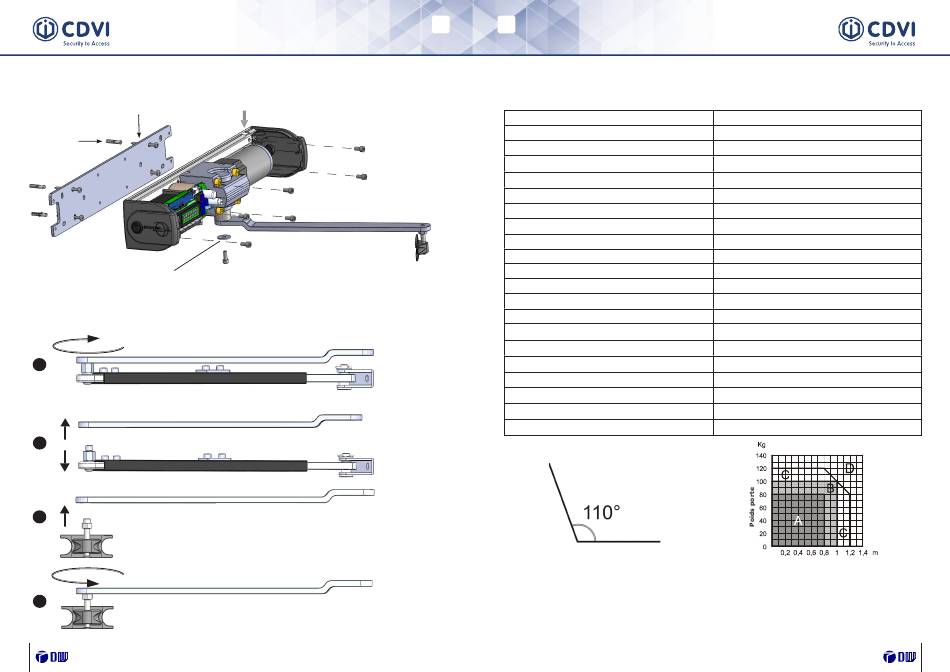

Mounting diagram

Screws for plugs SX 8 Screws for plugs SX 8
Plugs SX 8
Washer Washer
Universal arm: articulated arm into sliding arm conversion
I
Turn clockwise with a 15 mm spanner Turn clockwise with a 15 mm spanner
II
III
Replace with sliding block Replace with sliding block
IV
Turn anti-clockwise with a 13 mm spanner Turn anti-clockwise with a 13 mm spanner
8
Cover lift point Cover lift point
M6x14 M6x14
M6x14 M6x14
M6x14 M6x14
EN EN
Fully automated operator for inward or outward opening doors

Technical specifications

General features General features
Power supply Power supply
Motor torque Motor torque
Max power Max power
Operating class Operating class
Battery Battery
Overall dimensions Overall dimensions
Weight Weight
Operating temperature Operating temperature
IP Grade IP Grade
Opening / closing time Opening / closing time
Pause time Pause time
Power for auxiliary devices Power for auxiliary devices
Power for electrolock Power for electrolock
Electrolock output relay Electrolock output relay
Open door output relay Open door output relay
Electrolock hold time Electrolock hold time
Power failure autonomy Power failure autonomy
Transmitters security protocol Transmitters security protocol
Receiver memory Receiver memory
Integrated receiver main specifications Integrated receiver main specifications
Fire voltage input Fire voltage input
Angle d'ouverture maximal de la porte Angle d'ouverture maximal de la porte
Use conditions Use conditions
Zone A : Very intense use : 600 cycles / day Zone A : Very intense use : 600 cycles / day
Zone B : Intense use : 200-300 cycles / day Zone B : Intense use : 200-300 cycles / day
Zone C : Use at reduced speed Zone C : Use at reduced speed
Zone D : Not allowed Zone D : Not allowed
DIGIWAY PLUS
230 Vac - 50 Hz 230 Vac - 50 Hz
15 Nm 15 Nm
50 W 50 W
5 (heavy duty 5 ( heavy duty) )
12 Vdc 1,3 Ah 12 Vdc 1,3 Ah
511 x 90 x 110 mm 511 x 90 x 110 mm
5kg 5kg
-10°C ÷ +55°C -10°C ÷ +55°C
IP40 IP40
3 ÷ 15 sec. 3 ÷ 15 sec.
3 ÷ 90 sec. 3 ÷ 90 sec.
13.5 Vdc / 500 mA [max] 13.5 Vdc / 500 mA [max]
12 Vdc / 1A [max] 12 Vdc / 1A [max]
(C-NO-NC) 10A / 12V (C-NO-NC) 10A / 12V
(C-NO) - 24 VA (C-NO) - 24 VA
Réglable Réglable [0.1 sec. ÷ 5 min] [0.1 sec. ÷ 5 min]
270 cycles / 16 hours 270 cycles / 16 hours
KeeLoq® Hopping Code KeeLoq® Hopping Code
50 transmitters 50 transmitters
433.92 MHz ASK / -107 dBm 433.92 MHz ASK / -107 dBm
24 ÷ 48 Vac/dc 24 ÷ 48 Vac/dc
Largeur de la porte / poids de la porte Largeur de la porte / poids de la porte
