DIGIWAY PLUS
Fully automated operator for inward or outward opening doors

5] INSTRUCTIONS FOR USE

If the door is working properly the LP LED is stable green. If the door is working properly the LP LED is stable green.
How to open the door
Depending on the peripherals installed, the door driven by this operator can be opened by the
following devices:
• An exit device
• A remote control transmitter
• A radar (internal/ external)
• By pressing the 'DOWN' Button on the keyboard.
DOOR ALWAYS DOOR ALWAYS
OPEN OPEN
DOOR FREE DOOR FREE
FULLY AUTOMATIC FULLY AUTOMATIC

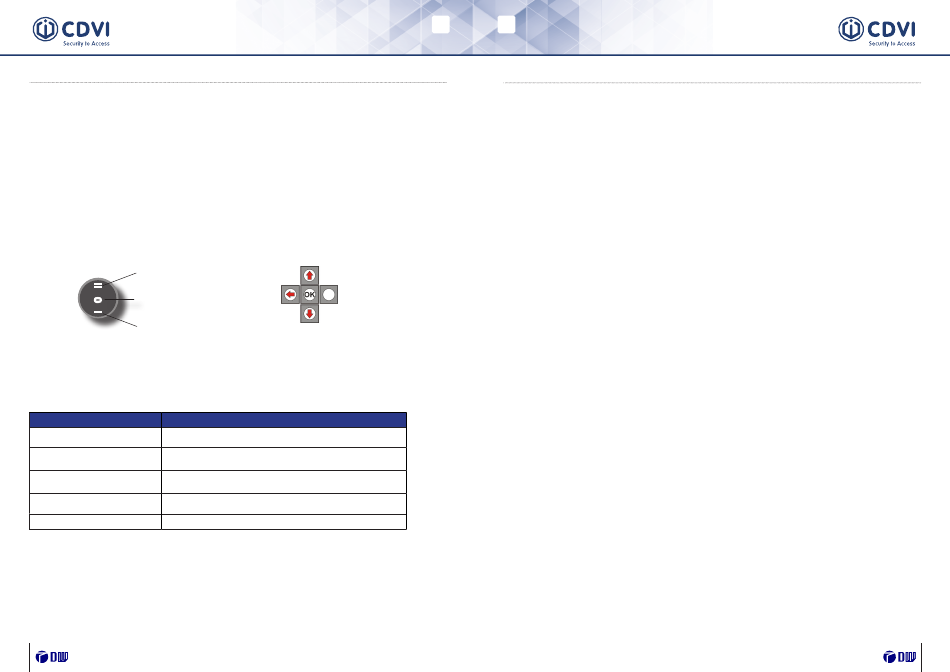

How to set door positions
Door Position
Move the external switch to position "I" Move the external switch to position "I"
Automatic Mode Automatic Mode
The LP LED will turn GREEN The LP LED will turn
Move the external switch to position "II" Move the external switch to position "II"
Always Open Always Open
The LP LED will turn ORANGE The LP LED will turn
Move the external switch to position "0"
Free (DIGIWAY functionality
The LP LED will switch OFF
off)
Move the external switch to NIGHT Move the external switch to NIGHT
Night Mode (when connected)
The LP LED will turn ORANGE BLINKING The LP LED will turn
The LP LED blinks GREEN The LP LED blinks
Battery operated
42
UP UP
ESC ESC
DOWN DOWN
Parameter
GREEN
ORANGE
OFF
ORANGE BLINKING
GREEN
EN EN
Fully automated operator for inward or outward opening doors

6] MAINTENANCE

An automatic door, installed with the DIGIWAY Plus operator, needs periodic checks (at least
every 12 months) as listed in the following points:
1) Check the door balancing and the functionality of the hinge.
2) Installation with a sliding arm:
2A) Check the fixing solidity of the sliding guide to the door and its horizontal
alignment;
2B) Check the fluency of the sliding block;
2C) Check the drive shaft bolt is tight;
2D) Check the correct coupling of the arm-motor shaft (solidity of the driving pins)
2E) Clean the sliding guide. DO NOT LUBRICATE AS THIS MAY CAUSE DEBRIS TO
STICK AND RESULT IN FRICTION OF THE SLIDING BLOCK.
3) Installation with an articulated arm:
3A) Check the fixing of the bracket to the door;
3B) Check the solidity of the articulated arm pivot;
3C) Check the drive shaft bolt is tight;
3D) Check the solidity of the adjustable forearm where it fixes to the door (2 screws
M5x12);
4) Check the fixing of the motor to the backplate and the backplate to the wall;
5) Check the absence of friction through the run of the door;
6) Check of the functionality of the peripherals (radar, electrolock or magnet);
7) In the case of double doors with overlapping, check the synchronisation of the 2 leaves is
correct;
8) You may need to replace the battery is the LP LED indicates this.
DIGIWAY PLUS
43
