DIGIWAY PLUS
Fully automated operator for inward or outward opening doors
2) Connect the radars and the Day/Night switch to the unit identified as MASTER (if required)
3) The contacts NC of the safety devices (photocells) can be connected in 2 ways:
• Connect the photocells, contacts to terminals 5,6,7 of the corresponding unit's electronic
card (recommended).
• Put in serial the contacts of all the photocells, connect them to terminals 5,6,7 of the
MASTER unit, and make a bridge to contacts 5,6,7 of the SLAVE unit.
4) Connect the electrolock to the MASTER unit.
5) On the SLAVE unit memorise only the 4-channel remote control needed to navigate in the
SLAVE unit menu. On the Master unit memorise the navigation transmitter and any other
transmitter used to open the door.
ATTENTION: Do not configure the same 4-channel Master transmitter
on both units!
Part III : Final Set Up
Follow the setup procedure here for projects involving both 2 x single motors (DWPSxx) and
for a double door unit (DWPDxx). This can be completed only if the mechanical and electrical
installations have been completed.
1
Move the external switches of both units to position "0".
Open the MASTER leaf completely and leave it open.
Close the SLAVE leaf.
2
Verify that the safety inputs (terminals 5-6-7) of the SLAVE unit are shorted or connected
to the corresponding safety photocells (FTC and FTC-S) and that the L3 and L4 LEDs are
stable ON.
Using the keyboard or using the 4-channel transmitter memorised on the SLAVE unit,
3
temporarily set the unit of the SLAVE door to ONE DOOR configuration (default value).
Follow the DOOR CALIBRATION procedure, corresponding to the STEP III, described on
4
page 22 of this manual, up to the end, and leave the door CLOSED.
Close the MASTER leaf.
Verify that the safety inputs (terminals 5-6-7) of the MASTER unit are shorted or connected
5
to the corresponding safety photocells (FTC and FTC-S) and that the L3 and L4 LEDs are
stable ON.
Using the keyboard or using the 4-channel transmitter memorised on the MASTER unit,
6
temporarily set the unit of the MASTER door in ONE DOOR configuration (default value).
NOTE: The MASTER functions as the reference for the double door: the radars and the
other devices must be connected to this unit only.
Follow the DOOR CALIBRATION procedure, corresponding to STEP III, described on page
7
22 of this manual, up to the end. The door remains OPEN.
40
EN EN
Fully automated operator for inward or outward opening doors
Set the ENGAGE POSITION: This is the point (in case of overlapping doors) where the 2
8
leaves are free to open and close without any interference.
Set the value at 25 (factory setting) for both the leaves. In case you need increase to the
9
value, note that greater values delay the closing of the Master leaf which starts and stops
waiting for the Slave.
Enter the CONFIGURATION menu of the SLAVE unit and set the following parameters:
Number of doors
10
2 doors overlap
Door type
Enter the CONFIGURATION menu of the MASTER unit and set the following parameters:
Number of doors
11
2 doors overlap
Door type
Move both the external switches to position "I": the 2 doors close very slowly. Test the
function by pressing either the OK button of the transmitter configured to the MASTER,
12
or the down key of the keypad, or the exit button connected to terminal 15 and 16 of the
MASTER.
The procedure is complete.
SLAVE SLAVE
15 16 15 16
DIGIWAY PLUS
Door Calibration
Door Engage Pos.
Door Engage Pos.
025
|||||||||||||||||...................
= TWO DOORS
= ENABLE (only if there is door leaf overlap)
= SLAVE
= TWO DOORS
= ENABLE (only if there is door leaf overlap)
= MASTER

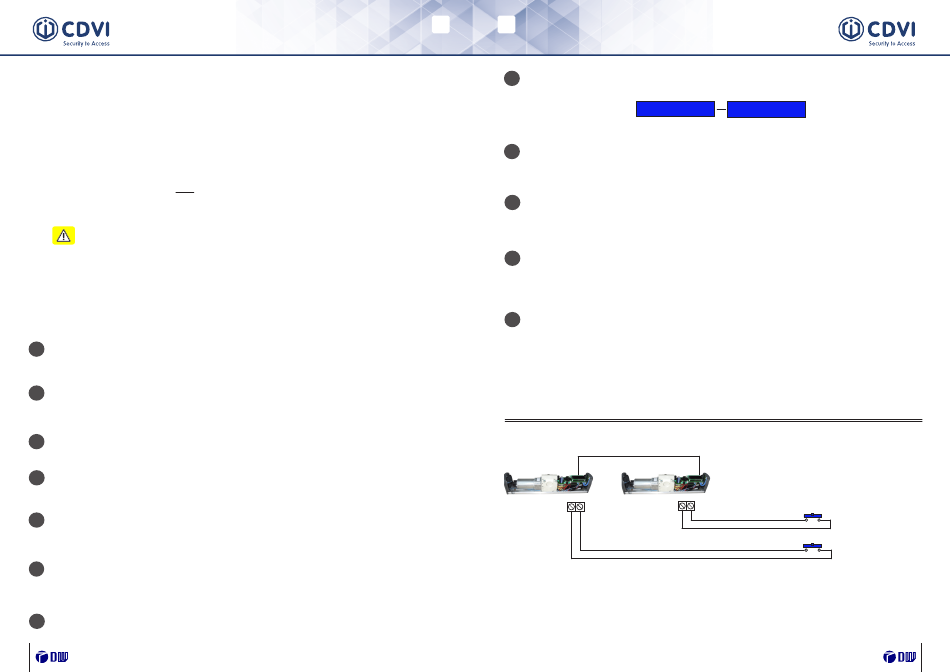

HOW TO OPEN ONE OR BOTH DOORS HOW TO OPEN ONE OR BOTH DOORS
MASTER MASTER
15 16 15 16
OPEN BOTH DOORS OPEN BOTH DOORS
OPEN THE MASTER ONLY OPEN THE MASTER ONLY
