DIGIWAY PLUS
Fully automated operator for inward or outward opening doors

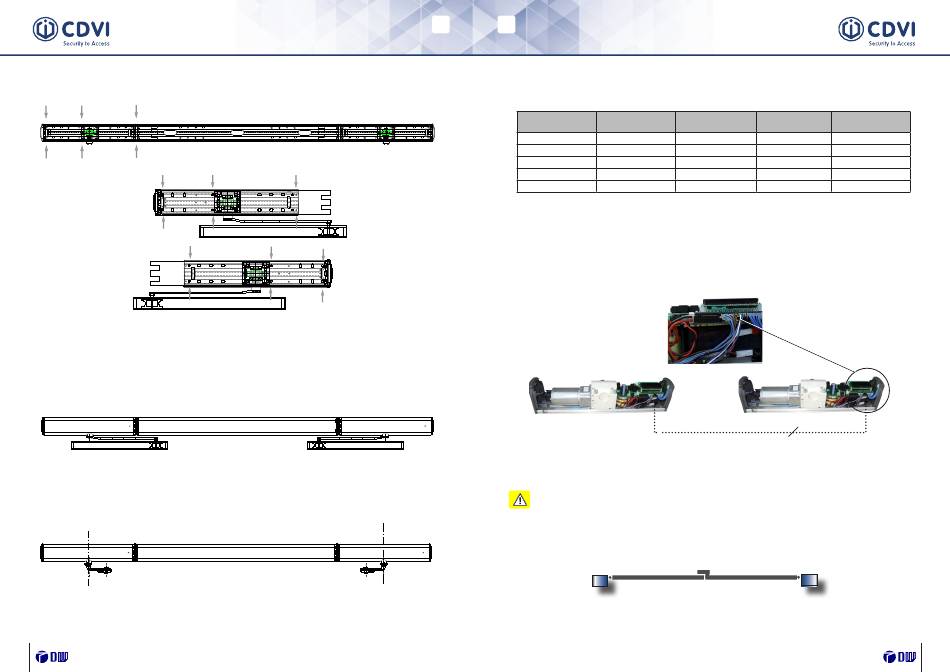

3. Motor fixing
Fix each motor with the 6 M6x14 screws provided.
6 x M6x14 screws for fixing to the backplate 6 x M6x14 screws for fixing to the backplate
Left Motor Left Motor
Right Motor Right Motor
4. Door guides fixing (inward opening)
• Fix the 2 arms on the motor shafts with the M6x12 screws provided;
• Insert the guide on the sliding blocks;
• Set the external switch to position 0 and move the door to find the best position for the door
guide;
• Fix the guides on the doors with the 4 screws provided.
5. Articulated arm fixing (outward opening)
• Fix the 2 articulated arms to the motor shafts with the M6x12 screws provided;
• Hold the door plate to the door;
• Fix the plate with the 2 screws provided.
6. Mechanical check
Move the side switches to position 0 and check the fluency of the motion both in opening and
in closing.
38
EN EN
Fully automated operator for inward or outward opening doors
Part II : Electrical Connections
The range of motors for the double door is described in the following table:
Double door
Leaves width
total width
1600 mm 1600 mm 70 - 80 mm 70 - 80 mm
1700 mm 1700 mm 81 - 85 mm 81 - 85 mm
1800 mm 1800 mm 86 - 90 mm 86 - 90 mm
1900 mm 1900 mm 91 - 95 mm 91 - 95 mm
2000 mm 2000 mm 96 - 100 mm 96 - 100 mm
With the DWPD operators, with central profile, the product comes already equipped with a
synchronisation cable.
It is also possible to use 2 single door units (DWP102x) to automate a double leaf door by the
syncronisation of each leaf using the DWPCS serial cable (optional).
The cable is terminated with 2 special 3-way connectors and must be inserted in the corresponding
slot located under the PCB controller of the DIGIWAY (see below).
1) Connect the motors according to the electrical diagram of the single door.
WARNING: In double door mode, with leaves overlapping (rebated), it is very important WARNING: In double door mode, with leaves overlapping (rebated), it is very important
to identify the type of unit: to identify the type of unit:
The MASTER unit drives the leaf which opens first and closes first.
The SLAVE unit drives the leaf which opens last and closes first.
DIGIWAY PLUS
p/n Articulated p/n Sliding
Arm Arm
DWPD10216ACD DWPD10216ACD DWPD10216SCD DWPD10216SCD
DWPD10217ACD DWPD10217ACD DWPD10217SCD DWPD10217SCD
DWPD10218ACD DWPD10218ACD DWPD10218SCD DWPD10218SCD
DWPD10219ACD DWPD10219ACD DWPD10219SCD DWPD10219SCD
DWPD10220ACD DWPD10220ACD DWPD10220SCD DWPD10220SCD
3 3 3 3
DWPCS Cable DWPCS Cable
Master Master
Slave Slave
p/n Universal
Arm
DWPD10216UCD DWPD10216UCD
DWPD10217UCD DWPD10217UCD
DWPD10218UCD DWPD10218UCD
DWPD10219UCD DWPD10219UCD
DWPD10220UCD DWPD10220UCD
