DIGIWAY PLUS
Fully automated operator for inward or outward opening doors
Calibration Completion
At the end of auto-calibration, the door is operational. However, for the door to be fully functional
a couple of full complete cycles must be carried out. During these two cycles the current profile
is calculated for the opening and closing. This is necessary for functional obstacle detection. At
the end of these cycles the external LED changes to GREEN and the letters "i" and "I" appear
on the display indicating the acquisition of the current levels.
I...C......................
P = 000,0 V=00,0
It is highly recommended to ensure the door completes these 2 cycles without any interruption. It is highly recommended to ensure the door completes these 2 cycles without any interruption.
When completed, the external LED will illuminate Green, and the door calibration is completed. When completed, the external LED will illuminate Green, and the door calibration is completed.
24
I...C.........iI...........
P = 000,0 V=00,0
EN EN
Fully automated operator for inward or outward opening doors

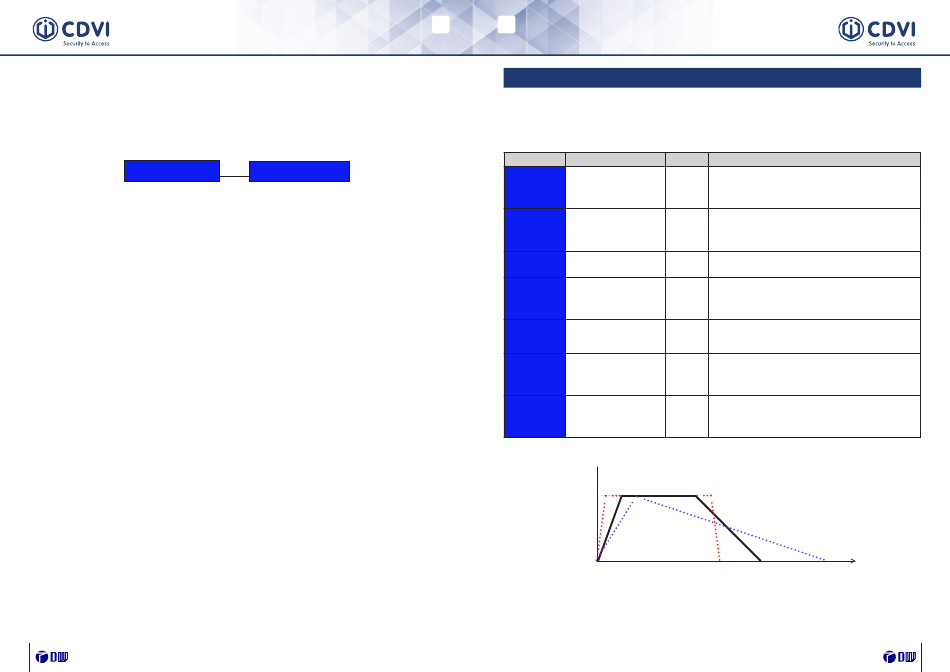

The maximum speed, the torque, and the pause time are automatically calculated by the
system during door calibration. If you need to change any of these settings, enter the submenu
'Main Functions'. See the following table for the explanation of the parameters. Each
parameter can be adjusted using the keyboard buttons or transmitter keys.
Functions Description
Sets the maximum speed
Open Speed
reached by the door during
opening.
Sets the maximum speed
Close Speed reached by the door during
closing.
This is the time the door
Pause Time
remains open before
automatically closing again.
Pause Time
Extended pause time
ext
Max torque of the door
Open Torque
during opening.
Max torque of the door
Close Torque
during closing.
Velocity of the door: rapidity
of the door to reach the max
Velocity
speed set, and to mantain
this value along all its travel.
v v
Vmax Vmax
DIGIWAY PLUS
PART III: MAIN FUNCTIONS
Values Notes
At the end of the door calibration the system automatically sets
the max open speed at a particular value. By increasing this
0-100% value, the total open time can reduce - be aware that in order
to meet the end opening point, the door may slow down before
reaching the max speed.
At the end of the door calibration the system automatically sets
the max close speed at a particular value. By increasing this
0-100% value, the total close time can reduce - be aware that in order
to meet the end closing point, the door may slow down before
reaching the max speed.
1-99 sec The preset factory value is 10 sec.
When Disabled Mode is enabled, if the door is opened through When Disabled Mode is enabled, if the door is opened through
a command at inputs 15-16, it will re-close after the Ext Pause a command at inputs 15-16, it will re-close after the Ext Pause
1-99 sec time. The Pause Time for the remaining commands (radar, time. The Pause Time for the remaining commands (radar,
push&go, remote controls) the pause time remains the regular push&go, remote controls) the pause time remains the regular
one. one.
Le couple maximum en ouverture est définit automatiquement
par le système à la fin de l'auto apprentissage à la valeur
0-100%
maximum de 100%. Dans le cas d'une porte très légère ou
sensible, il est nécessaire de diminuer cette valeur.
Le couple maximum en fermeture est définit automatiquement
par le système lors de l'auto apprentissage à la valeur
0-100% maximum de 100%. Diminuez cette valeur en cas de porte
sensible ou très légère, ou pour respecter la réglementation
des personnes à mobilité réduites.
The default value for this parameter is 70%. The higher
this value, the lower the total travel time, because the door
0-100% maintains a high value of speed for a longer time. If this value
is too high, it can cause "door bounce", especially for heavy
doors (see motion diagram).
Velocity = 100% Velocity = 100%
Velocity = 0% Velocity = 0%
t t t t
2 2
1 1
Motion Motion
Diagram Diagram
t t
t t
3 3
