1. Press the operating button for 3 s.
⇒ Menu 1.00 appears.
2. Turn the operating button until menu 4 appears.
3. Press the operating button.
▶ Menu 4.xx appears.

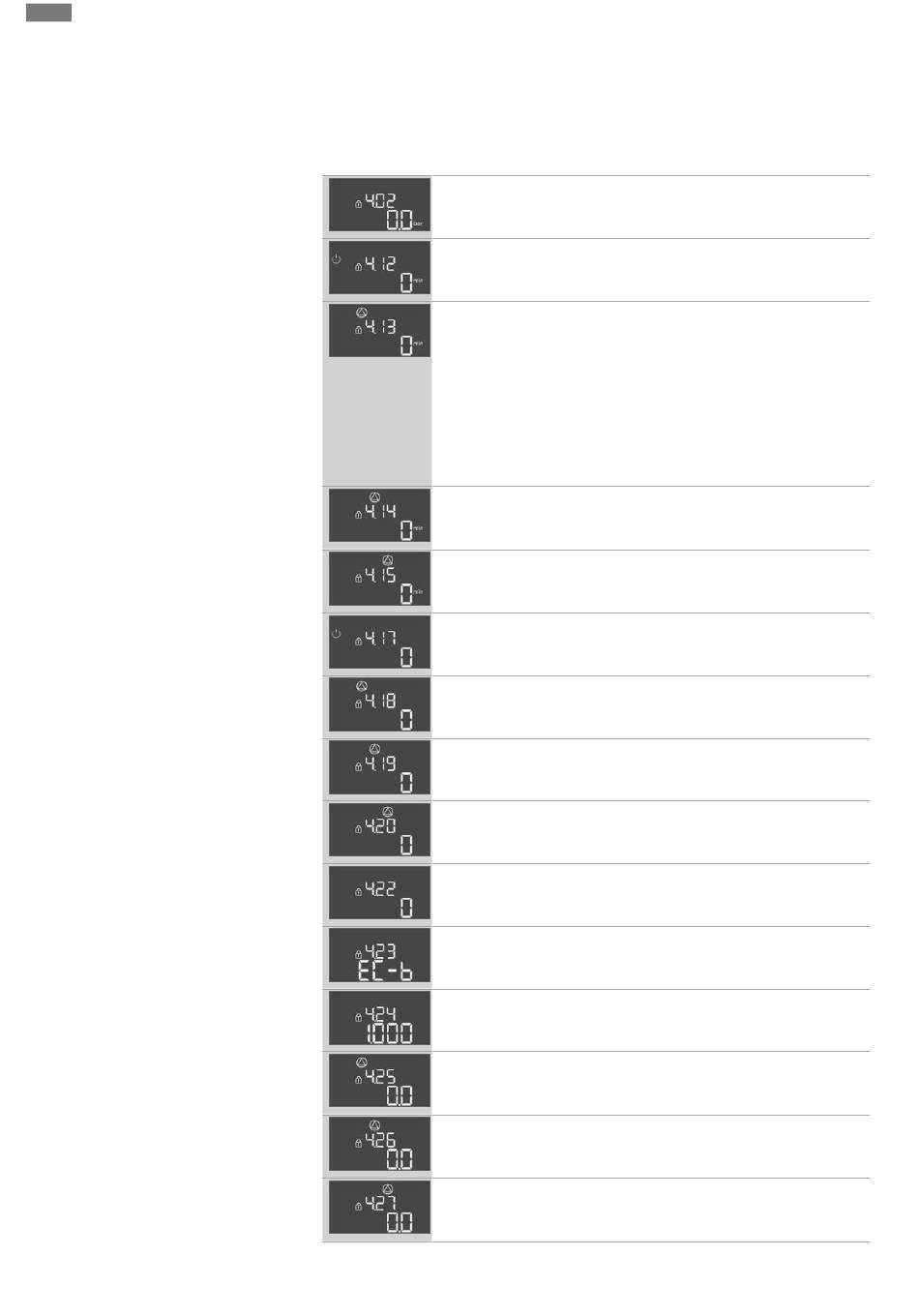

Actual pressure value in bar
Switchgear running time
The time will be displayed in minutes (min), hours (h) or days (d) de-
pending on the unit.
Running time: Pump 1
The time is stated in minutes (min), hours (h) or days (d) depending on
the unit. The display varies depending on the timespan:
• 1 hour: Display in 0 ... 59 minutes, unit: min
• 2 hours to 24 hours: Display in hours and minutes separated by a
decimal point, e.g. 10.59, unit: h
• 2 days to 999 days: Display in days and hours separated by a decimal
point, e.g. 123.7, unit: d
• From 1000 days: Display in days, unit: d
Running time: Pump 2
The time is stated in minutes (min), hours (h) or days (d) depending on
the unit.
Running time: Pump 3
The time is stated in minutes (min), hours (h) or days (d) depending on
the unit.
Switchgear switching cycles
Switching cycles: Pump 1
Switching cycles: Pump 2
Switching cycles: Pump 3
Serial number
Display switches between the 1st and 2nd four digits.
Switchgear type
Software version
Set value for the motor current monitoring: Pump 1
Max. rated current in A
("Control EC-Booster" only)
Set value for the motor current monitoring: Pump 2
Max. rated current in A
("Control EC-Booster" only)
Set value for the motor current monitoring: Pump 3
Max. rated current in A
("Control EC-Booster" only)
