8.3.6 Menu 3: Enable pumps

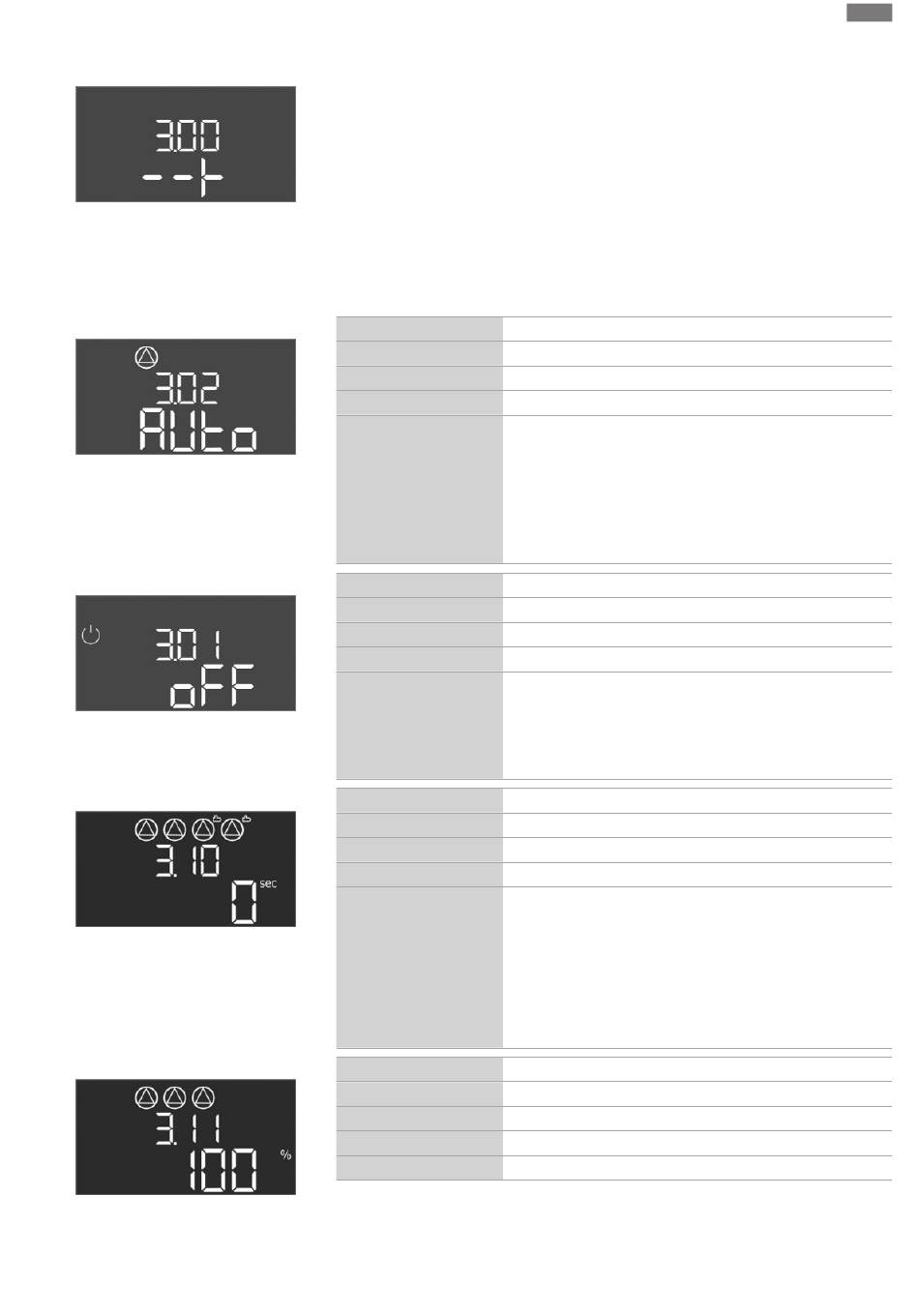

Fig. 77: Menu 3.02
Fig. 78: Menu 3.01
Fig. 79: Menu 3.10
Fig. 80: Menu 3.11
Installation and operating instructions • Wilo-Control EC/ECe-Booster • Ed.02/2023-08
To operate the system, the operating mode must be set for each pump and the pumps en-
abled:
• Every pump is set to the "auto" operating mode as the factory setting.
• Automatic mode starts after the pumps have been enabled in Menu 3.01.
Required settings for the initial configuration
Carry out the following work during initial configuration:
• Check direction of rotation of the pumps
• Set precise motor current monitoring ("Control EC-Booster" only)
Use the following settings to perform the initial configuration:
• Switch off the pumps: Set menu 3.02 to 3.04 to "off".
• Enable pumps: Set menu 3.01 to "on".
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Explanation
3.02 ... 3.04
Pump 1 ... Pump 3 operating mode
off, Hand, Auto
Auto
• off = pump switched off
• Hand = manual operation of pump. Operation time and op-
eration speed are set in Menu 3.10 and 3.11.
• Auto = automatic operation of the pump depending on the
pressure control
NOTICE! Change the value to "off" for the initial configura-
tion!
3.01
Enable pumps
on, off
off
• off = pumps are locked and cannot be started.
NOTICE! Manual operation or forced switch-on are also
not possible!
• on = pumps are switched on/off, depending on the operat-
ing mode set
3.10
Running time of pumps in manual operation
0 to 999 s
0 s
0 s: The pump runs in manual mode as long as the button is
pressed and then switches back to the previous mode.
1 to 998 s: The pump runs in manual mode for the specified
amount of time.
999 s: The pump runs in manual mode until the mode is
changed again.
The corresponding speed is set in Menu 3.11.
3.11
Operating speed of pumps during manual operation
0 to 100%
100%
In manual operation, the pumps run at the set speed.
