Code* Faults
E080.x Pump fault
8.2.2 Activating the device
1
2

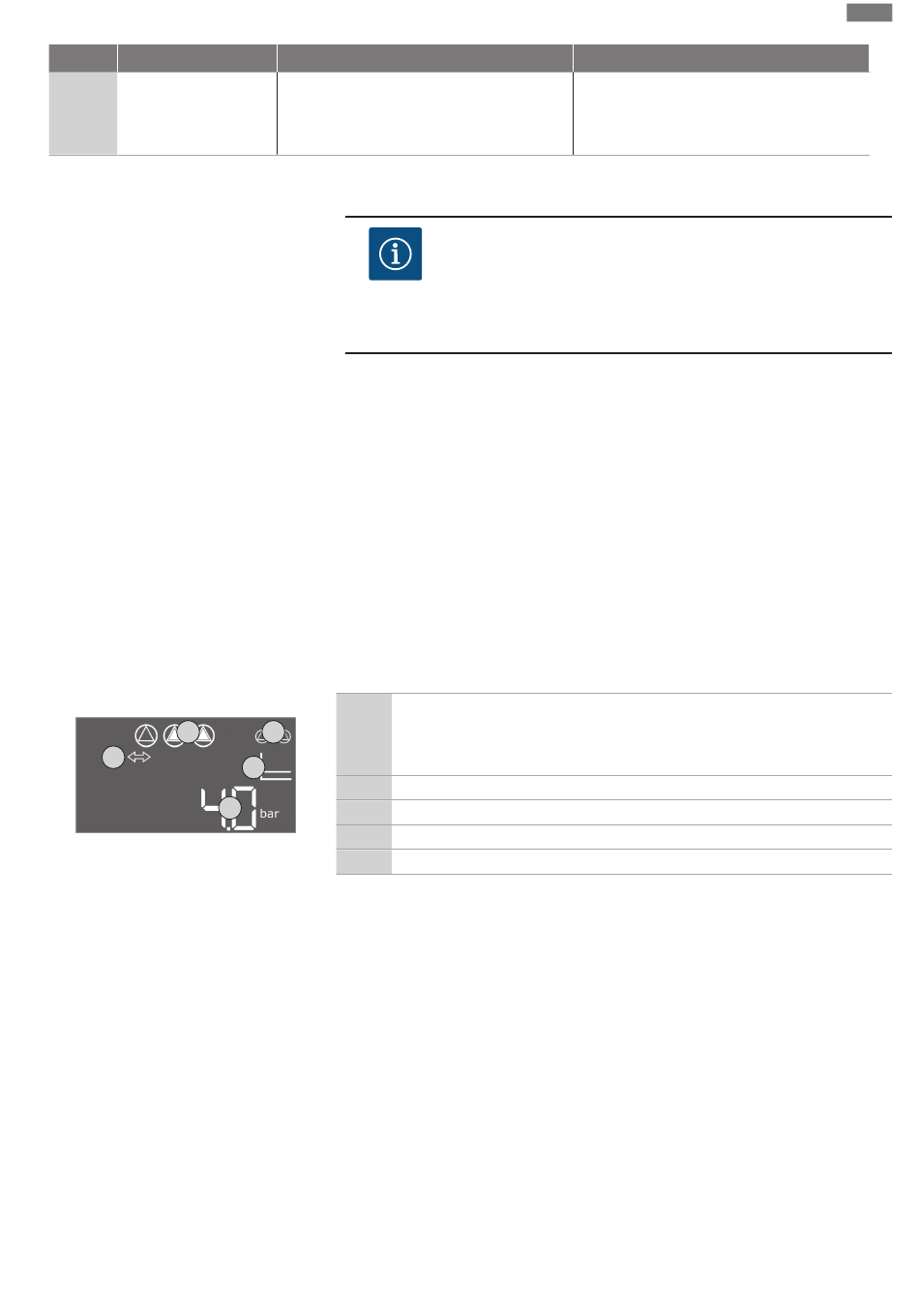

Fig. 34: Start screen
8.3

Start initial configuration

Installation and operating instructions • Wilo-Control EC/ECe-Booster • Ed.02/2023-08
Cause
• No pump connected.
• Motor current monitoring not set.
Key:
* "x" = represents the pump to which the fault shown applies.
✓ Switchgear is closed.
✓ Installation has been performed correctly.
✓ All signal transmitters and consumers are connected and installed in the operating
space.
✓ If a low-water cut-out switchgear (dry-running protection) is available, the switching
point has been correctly set.
✓ Motor protection is preset according to the pump data ("Control EC-Booster" only).
1. Turn the main switch to the "ON" position.
2. Switchgear starts.
– All LEDs light up for 2 s.
– The display illuminates and the start screen appears.
– The standby symbol appears in the display.
▶ The switchgear is ready for operation. Start the initial configuration or automatic
mode.
1 Current pump status:
– Number of registered pumps
5
– Pump activated/deactivated
4
– Pumps On/Off
2 Fieldbus active
3
3 Actual pressure value
4 Control mode (e.g. p-c)
5 Standby pump function activated
Set the following parameters during initial configuration:
• Enable parameter input.
• Menu 5: Basic settings
• Menu 1: Activation/deactivation values
• Menu 2: Fieldbus connection (if available)
• Menu 3: Enable pumps.
• Set motor current monitoring.
• Check the direction of rotation of the connected pumps.
Observe the following points during the configuration:
• If there is no input or operation for 6 minutes:
–
the display illumination is switched off.
–
the display returns to the main screen.
–
parameter input is locked.
• Some settings can only be adjusted when there is no pump in operation.
• The menu is automatically adapted based on the settings. Example: The Menus 5.41 ...
5.43 are only visible when the "pump kick" function (Menu 5.40) is activated.
• The menu structure is valid for all EC switchgears (e.g. HVAC, Booster, Lift, Fire, etc.).
This may lead to gaps in the menu structure.
Remedies
• Connect pump or deactivate minimum cur-
rent monitoring (menu 5.69)!
• Set the motor current monitoring to the
pump's rated current.
NOTICE
Observe the error code on the display
If the red fault LED lights up or flashes, observe the error code on the dis-
play! If the error has been confirmed, the previous error will be stored in
menu 6.02.
