8.3.1 Enable parameter input
1
2
3
5
7

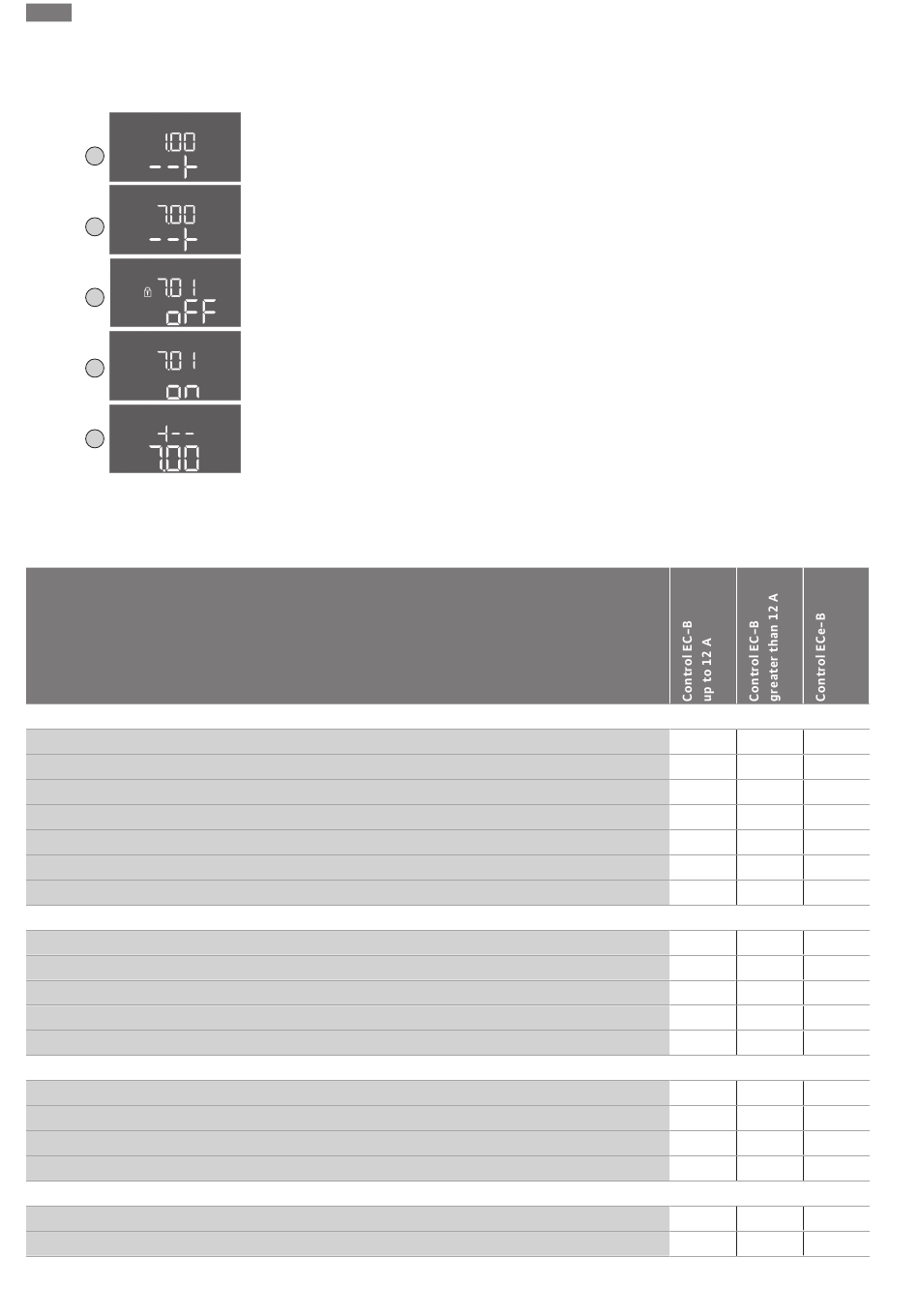

Fig. 35: Enable parameter input
8.3.2 Overview of available parameters
Parameter (menu item)
1.00 Values for switching on and off
1.01 Pressure setpoint
1.04 Activation threshold of the pump in % of pressure setpoint
1.07 Deactivation threshold of the base-load pump in % of pressure setpoint
1.08 Peak-load pump deactivation threshold in % of pressure setpoint
1.09 Deactivation delay base-load pump
1.10 Activation delay peak-load pump
1.11 Deactivation delay peak-load pump
2.00 Fieldbus connection for ModBus RTU
2.01 ModBus RTU interface On/Off
2.02 Baud rate
2.03 Standby pump address
2.04 Parity
2.05 Number of stop bits
3.00 Enable pumps
3.01 Enable pumps
3.02 Pump 1 to Pump 3 operating mode
3.10 Running time of pumps in manual operation
3.11 Operating speed of pumps during manual operation
4.00 Information
4.02 Current pressure value in bar
4.12 Running time of switchgear
30
As standard, the values are only displayed. To change the values, the parameter input in
Menu 7.01 must be enabled:
1. Press the operating button for 3 s.
⇒ Menu item 1.00 appears
2. Turn the operating button until menu 7 appears.
3. Press the operating button.
⇒ Menu 7.01 appears.
4. Press the operating button.
5. Change the value to "on": Turn the operating button.
6. Save value: Press the operating button.
⇒ The menu is enabled and can be changed.
7. Turn the operating button until the end of menu 7 appears.
8. Press the operating button.
⇒ Back to the main menu level.
▶ Start initial configuration.
The available parameters differ for the Control EC-B and Control ECe-B switchgear. The
following table displays the differences.
