Wilo Control EC-Booster Installation And Operating Instructions Manual page 15

7
9
Current Pump1
A(+) B(-) GND
4
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
6
41 42 43 44 45 46 47 48 49 50 51 52 53 54
4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
2
PE
1 3 5 1 3 5 1 3
5
2 4 6 2 4 6 2 4

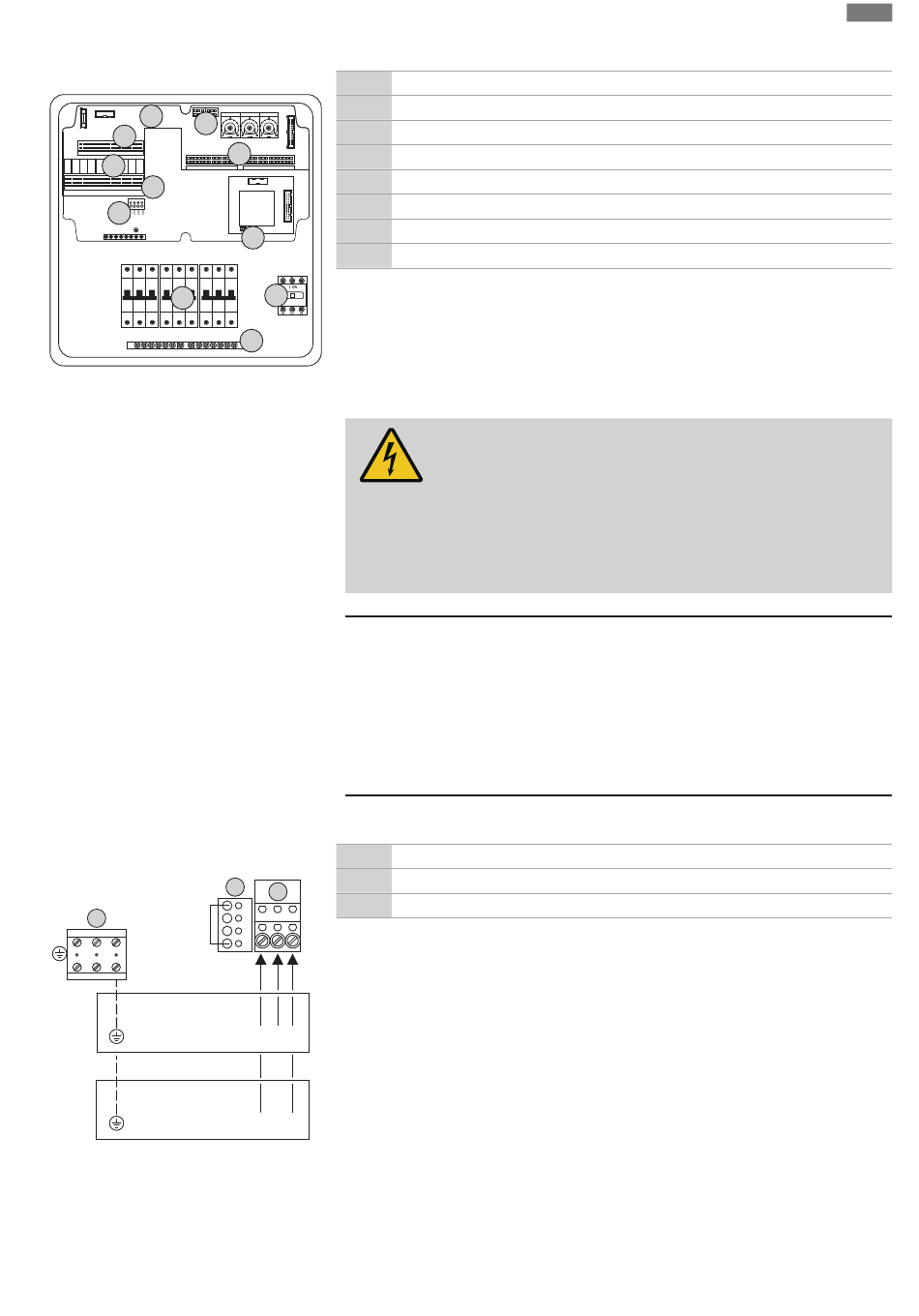

Fig. 8: Control ECe-B 3 ...
6.5.3 Switchgear mains connection:
Control EC-Booster
com
3
230
380
400
3~ 50/60 Hz
1~ 50/60 Hz
Fig. 9: Mains connection Wilo-Control EC-B
1.../EC-B 2...
Installation and operating instructions • Wilo-Control EC/ECe-Booster • Ed.02/2023-08
Overview Control ECe-B 3 ...
1 Main switch/mains connection
3 Terminal strip: Earth (PE)
Current Pump2 Current Pump3
4 Terminal strip: Controls/sensors
4
5 Circuit breaker 3-pole (3~) / 2-pole (1~)
55 56 57 58 59 60 61 62 63 64 65 66 67 68
6 Output relay
7 Control board
9 ModBus RTU: RS485 interface
10
10 ModBus RTU: Jumper for termination/polarisation
5
1
6
3
Mains connection Wilo-Control EC-B 1 .../EC-B 2 ...
1 Terminal strip: Mains connection
2 Mains voltage adjustment
2
1
3 Terminal strip: Earth (PE)
Insert the connection cables laid by the customer through the threaded cable glands and se-
cure. Connect the wires to the terminal strip according to the connection diagram.
Mains connection 1~230 V:
• Cable: 3-core
• Wire: L, N, PE
L1 L2 L3
• Mains voltage adjustment: Converter bridge 230/COM
Mains connection 3~230 V:
• Cable: 4-core
• Wire: L1, L2, L3, PE
L N
• Mains voltage adjustment: Converter bridge 230/COM
Mains connection 3~380 V:
• Cable: 4-core
• Wire: L1, L2, L3, PE
• Mains voltage adjustment: Converter bridge 380/COM
Mains connection 3~400 V:
DANGER
Danger of death due to electrical current when the main switch
is switched off!
Even when the main switch is switched off, there is mains voltage power
to the voltage selection terminal.
• Make the voltage selection before connecting the product to the
mains.
CAUTION
Risk of property damage due to incorrectly set mains voltage!
If the wrong mains voltage is set, the switchgear will be destroyed. The
switchgear can be operated at different mains voltages. The mains
voltage is set to 400 V at the factory.
• To use another mains voltage, change the position of the cable
jumper before connection.
en
15
