8.3.4 Menu 1: Values for switching on
and off

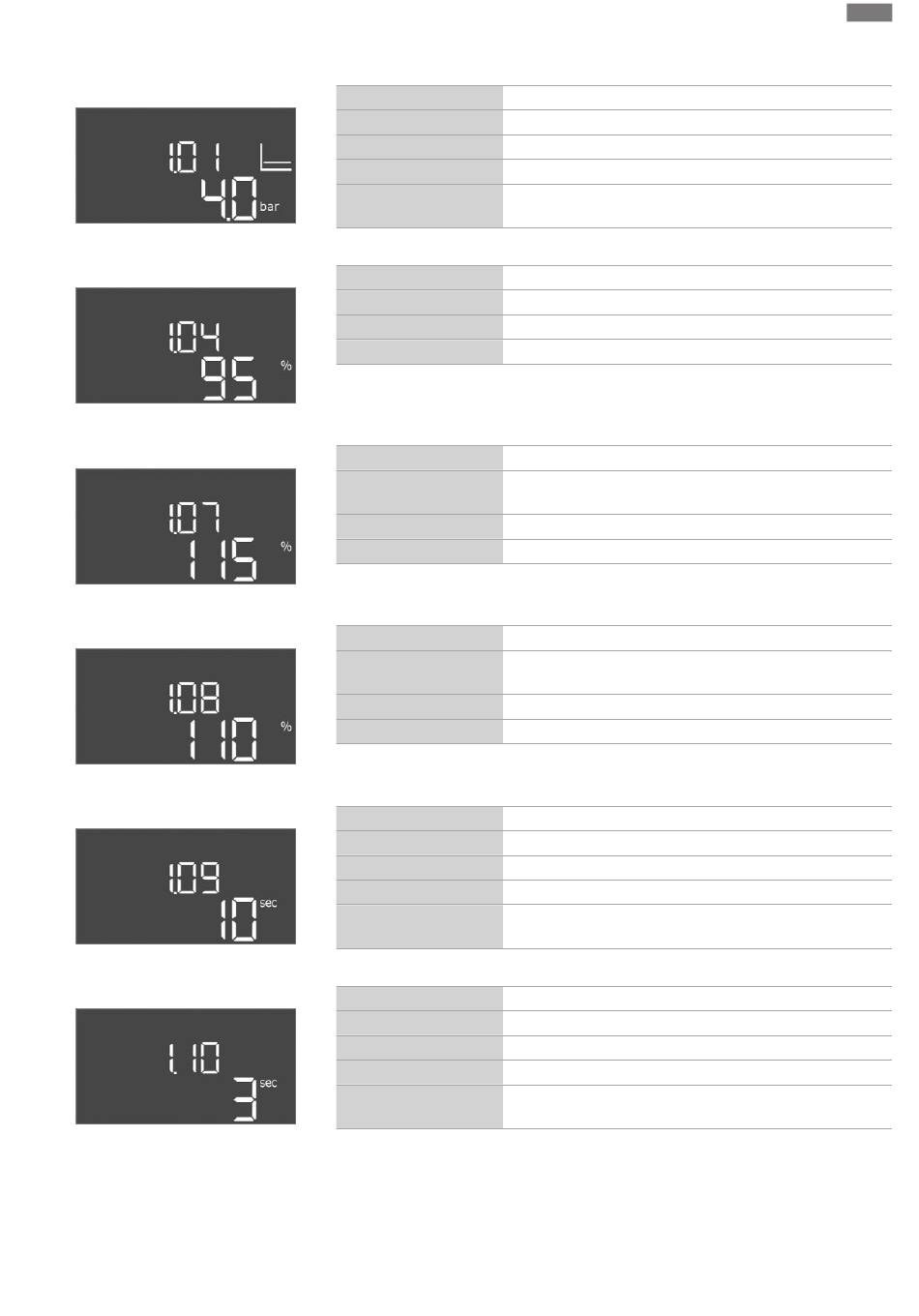

Fig. 65: Menu 1.01
Fig. 66: Menu 1.04
Fig. 67: Menu 1.07
Fig. 68: Menu 1.08
Fig. 69: Menu 1.09
Fig. 70: Menu 1.10
Installation and operating instructions • Wilo-Control EC/ECe-Booster • Ed.02/2023-08
Menu no. 1.01
Description Pressure setpoint
Value range 0.1 ... 25.0* bar
Factory setting 4 bar
Explanation * The maximum value is dependent on the set measurement
range of the pressure sensor (Menu 5.11).
Menu no. 1.04
Description Activation threshold of the pump in % of the pressure setpoint
Value range 75 ... 99%
Factory setting 95 %
Menu no. 1.07
Description Base-load pump deactivation threshold in % of pressure set-
point
Value range 101 ... 125%
Factory setting 115 %
Menu no. 1.08
Description Peak-load pump deactivation threshold in % of pressure set-
point
Value range 101 ... 125%
Factory setting 110 %
Menu no. 1.09
Description Base-load pump deactivation delay
Value range 0 ... 180 s
Factory setting 10 s
Explanation Time until the base-load pump is switched off when the deac-
tivation threshold is reached.
Menu no. 1.10
Description Peak-load pump activation delay
Value range 0 ... 30 s
Factory setting 3 s
Explanation Time until the peak-load pump is switched on when the activa-
tion threshold is reached.
