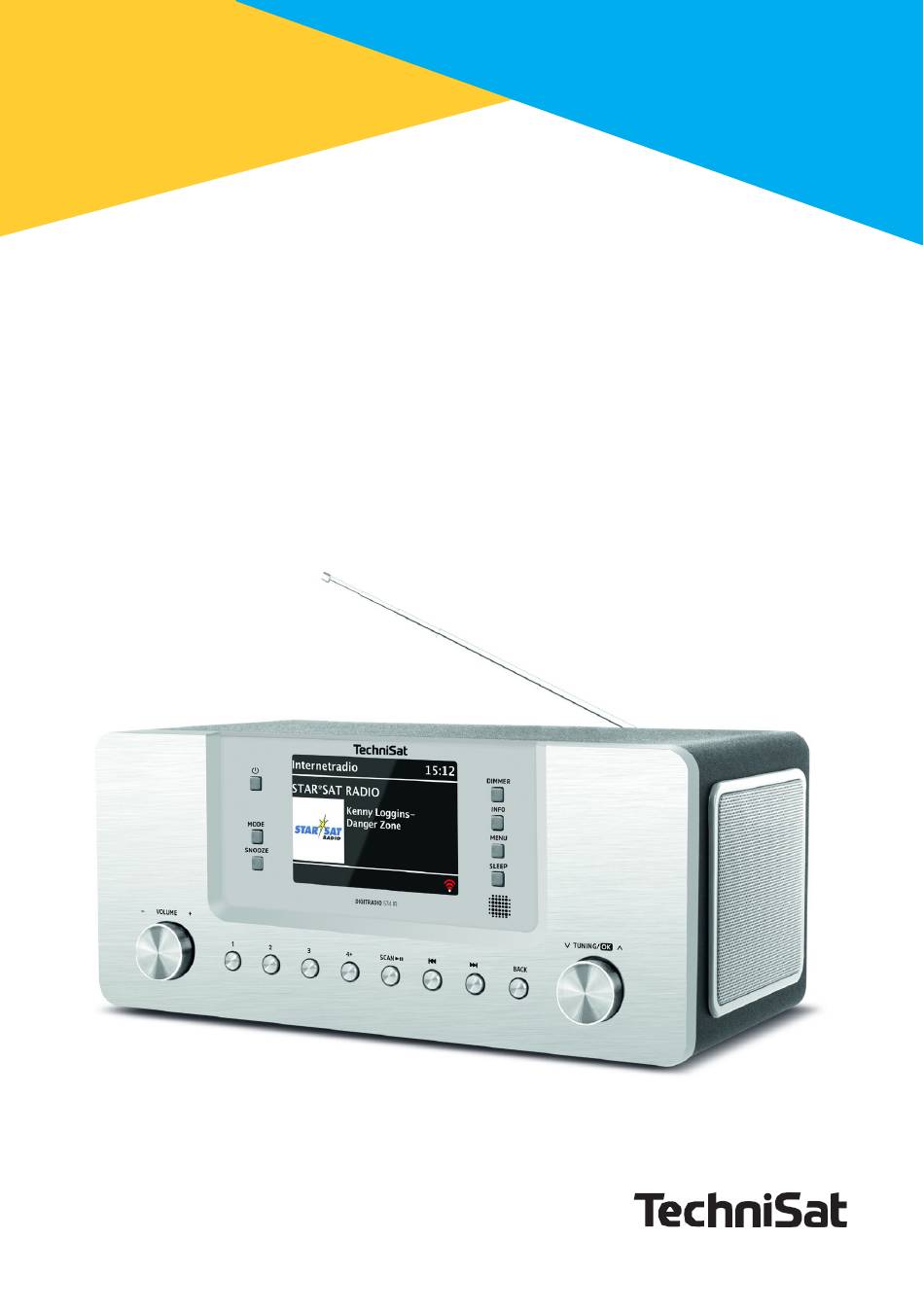

- Page 1 Operating instructions DIGITRADIO 574 IR...
-
Page 2: Figures

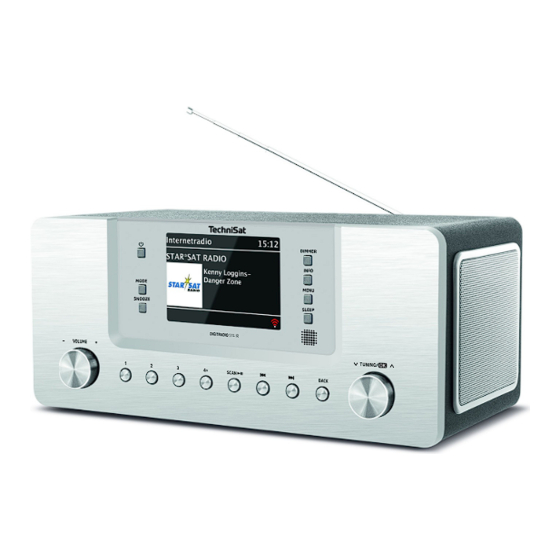

1 Illustrations 1.1 Front view 1.2 Rear view 18 19... - Page 3 On/Standby Display MODE Source selection SNOOZE Snooze DIMMER Display brightness INFO Display information MENU Device menu SLEEP Timer Infrared receiver VOLUME +/- rotary control Direct dialling buttons 1, 2, 3 Direct selection button 4+ (favourites memory) SCAN/ Search/play/pause Previous title/search Next title/search BACK ▼...
-
Page 4: Remote Control
1.3 Remote control SNOOZE Snooze Play/pause Previous title Repetition Shuffle INFO BACK MODE Source selection OK Confirm Volume - MENU Numeric keys MUTE Mute On/Standby Next title STOP WECKER SLEEP Timer EQ Equaliser SCAN channel search ▲ Arrow key Volume + ▼... -
Page 5: Table Of Contents
Legal information ................11 Service instructions ..................12 Description of the DIGITRADIO 574 IR ..........13 The scope of delivery..................13 The special features of the DIGITRADIO 574 IR..........13 Preparing the DIGITRADIO 574 IR for operation ........13 Setting up the appliance ..................13 Align antenna....................14 Connecting the power supply unit..............14... - Page 6 DAB+ Radio ..................20 11.1 What is DAB+ ....................20 11.2 Switch on DAB+ radio reception..............20 11.3 Perform search run ..................21 11.3.1 Manual search ....................21 11.4 Call up channel list ..................21 11.5 Saving DAB+ stations..................22 11.6 Selecting the programmed stations ..............22 11.7 Deleting a programme position memory............22 11.8 Signal strength ....................22...
- Page 7 17.5 Auto standby....................31 17.6 Language......................32 17.7 Factory setting ....................32 17.8 Sokware Update ....................32 17.9 Setup wizard ....................33 17.10 Info........................34 17.11 Display illumination ..................34 17.12 Data protection information ................34 Cleaning..................35 Eliminate errors ................36 Technical data / manufacturer's information ........37 Disposal instructions..............39...
-
Page 8: Safety Instructions
3 Safety instructions 3.1 Characters and symbols used Indicates a safety instruction that can lead to serious injury or death if ignored. Observe the following signal words: DANGER - Serious injuries with fatal consequences WARNING - Serious injuries, possibly fatal ATTENTION - Injuries Indicates a note that you must observe to avoid device defects, data loss/misuse or unintentional operation. -
Page 9: Intended Use
The operating instructions are intended for any person who sets up, operates, cleans or disposes of the appliance. 3.4 Safe handling of the DIGITRADIO 574 IR Please observe the following instructions to minimise safety risks, avoid damage to the appliance and contribute to environmental protection. - Page 10 If the appliance or the power supply unit is damaged, it must not be put into operation. Do not operate the appliance near bathtubs, showers, swimming pools or running/splashing water. There is a risk of electric shock and/or device defects. Foreign objects, e.g.
-
Page 11: Legal Information
Alternatively, you can also find the declaration of conformity in the download area of your product on the TechniSat website www.technisat.de. TechniSat is not liable for product damage due to external influences, wear and tear or improper handling, unauthorised repairs, modifications or accidents. -
Page 12: Service Instructions
Mon. - Fri. 8:00 - 18:00 under Tel.: 03925/9220 1800. Repair orders can also be ordered directly online at www.technisat.de/reparatur. If you need to return the device, please use only the following address: TechniSat Digital GmbH Service Centre Nordstr. 4a 39418 Staßfurt... -
Page 13: Description Of The Digitradio 574 Ir
1x remote control + batteries 1x operating instructions 5.2 The special features of the DIGITRADIO 574 IR The DIGITRADIO 574 IR consists of a DAB+/UKW/Internet radio receiver with the following functions: You can store up to 20 DAB+/ FM/Internet radio stations. -
Page 14: Align Antenna
If the appliance is not to be used for a longer period of time, e.g. before travelling, unplug the mains plug. > Connect the DC plug of the power supply unit to the socket labelled DC-IN (21) on the back of the DIGITRADIO 574 IR. > Insert the mains plug into a mains socket. -
Page 15: Insert Bageries Into Remote Control
Only use headphones with a 3.5 millimetre stereo jack plug. Insert the plug of the headphones into the headphones socket (18) on > the back of the DIGITRADIO 574 IR. The sound is now played exclusively via the headphones, the loudspeakers are muted. >... -
Page 16: Switch On The Device
Setup wizard" on page 33. 7.2 Switch off the device > You can switch the DIGITRADIO 574 IR to standby by pressing the On/Standby button (1) on the device or the On/Standby button (14) on the remote control. The date and time appear on the display. -
Page 17: Setting The Volume
7.4 Setting the volume Set the volume using the VOL +/- buttons (10, 23) on the remote control or by > turning the VOLUME +/- rotary control (10) on the device. The set volume is shown on the display. 7.5 Switch on mute You can mute the volume using the MUTE button (13) on the remote >... -
Page 18: Menu Operation
Use the ▲ or ▼ buttons to select the desired source and confirm your selection with OK. 9 Internet radio and podcasts The DIGITRADIO 574 IR is equipped with an Internet radio receiver. To be able to receive Internet radio stations/stations/podcasts, you need a WLAN router with Internet access. -
Page 19: Channel List
9.1 Channel list Press the MENU button and select [Channel list] or [Poscast list]. Press > the OK button. Under Station list, all Internet radio stations are displayed in different categories. Select a channel using a category/country/genre and press the OK button. >... -
Page 20: Playing Music (Usb Media)
10 Play music (USB media) You have the option of playing MP3 music media on a USB data carrier via the DIGITRADIO 574 IR. To do this, the USB medium must be connected to the USB port (20) must be connected. -
Page 21: Perform Search Run
Alternative: Press the MENU button and then select [Main menu > DAB+]. > When DAB+ is started for the first time, a complete station search is carried out. The station list is then displayed (see point 11.4). 11.3 Perform search run The automatic search scans all DAB Band III channels and thus finds all stations broadcast in the reception area. -
Page 22: Saving Dab+ Stations
11.5 Saving DAB+ stations The favourites memory can store up to 20 stations. The saved transmitters are retained even after a power failure. > Play the desired station. Press one of the number buttons 0 ... 10 on the remote control and hold it >... -
Page 23: Dynamic Label Plus
Pressing the INFO button several times switches through various information, e.g. programme type, multiplex name, frequency, signal error rate, data bit rate, programme format, date. 11.9 Dynamic Label Plus If supported by the programme provider, the Dynamic Label Plus service allows, for example, the name of the current programme or the title and artist to be displayed additionally. -
Page 24: Fm Reception With Rds Information
When switching on for the first time, the frequency 87.5 MHz is set. If you have already set or saved a station, the radio will play the last station set. The station name appears for RDS stations. Align the aerial to improve reception. 12.2 FM reception with RDS information RDS is a procedure for transmitting additional information about FM stations. -
Page 25: Set Mono/Stereo
12.5 Set mono/stereo Press the MENU button and use ▲ or ▼ to select [Audio setting]. > Select [YES] to play back the sound in mono only when FM reception is weak > or [NO] to play back the sound in stereo (only in good reception conditions). Confirm by pressing OK. -
Page 26: Pairing
> Select the list of Bluetooth devices found on your music player. Search for the entry DIGITRADIO 574 IR in the list and select it. If you are > prompted to enter a PIN, enter "0000" (4x zero). -
Page 27: Audio Input
574 IR. Connect the external device to the AUX-IN connection (19, 3.5 mm > stereo jack) on the back of the DIGITRADIO 574 IR. Use the MODE button to select the AUX-IN audio input. The display shows > [Aux-In] is displayed. -
Page 28: Switch Off Alarm Clock After Alarm
Alarm clock Here you can choose between Off, Daily (every day of the week), Once, > Weekdays (Mon. - Fri.) or Weekends (Sat. and Sun.). Press the OK button to accept the setting. Wake-up time > Here you can enter the alarm time and, if necessary, the date. First select the hours using the ▲/▼... -
Page 29: Snooze Function
Use the original charging cable (USB) of your external device and insert the USB plug into the USB port (20) on the back of the DIGITRADIO 574 IR. The external device can be charged with a maximum of 5 V and 1 A. -
Page 30: Internet Settings
Please refer to your router's operating instructions to find out how to activate WPS on your router. > After selecting the WLAN network on the DIGITRADIO 574 IR, select Press [button]. Follow the instructions on the display. > Start WPS on your router by pressing the corresponding button. -
Page 31: Time Settings
Update from NET in the update settings. 17.6 Auto standby Under the Auto standby option, you can specify whether and after what time the DIGITRADIO 574 IR should switch to standby if it has not been operated before. -
Page 32: Language
(point 17.9). 17.9 Software Update Software updates may be provided from time to time, which may contain improvements or bug fixes. The DIGITRADIO 574 IR is therefore always up to date. Press the MENU button and then select >... -
Page 33: Setup Wizard
17.10 Setup wizard Press the MENU button and then select > [System settings] > [Setup wizard]. The setup wizard starts automatically the first time you switch on the device. First select the language with ▲ /▼ and confirm your selection with OK. As soon as [Execute now] appears on the display, select [YES] and >... -
Page 34: Info
and press the OK button. If you To cancel the entry, select the field have made a typing error, you can delete the last letter entered by pressing . and press the OK button. If the password was correct, a >... -
Page 35: Cleaning
18 Cleaning To avoid the risk of electric shock, do not clean the appliance with a wet cloth or under running water. Disconnect the mains plug before cleaning! Do not use scouring pads, scouring powder or solvents such as alcohol or petrol. -
Page 36: Eliminate Errors
Disconnect the appliance from the mains and reapply power. Reception via DAB+/FM is poor. Change the position of the antenna or the DIGITRADIO 574 IR. Device cannot be operated. Disconnect the appliance from the mains and reapply power. No WLAN connection possible Restart the WLAN wizard and check that the password has been entered correctly. -
Page 37: Technical Data / Manufacturer's Information
20 Technical data / manufacturer's information Technical changes and errors excepted. Operating modes Internet radio/podcasts, DAB+, FM, Bluetooth, USB, AUX-IN. Power supply DC 9 V, 3 A via supplied external power supply unit Display 4" TFT Frequencies FM: 87.5 - 108 MHz DAB+: Band III 174 - 240 MHz Bluetooth V4.2+EDR: 2402 - 2480 MHz... - Page 38 Technical data of the supplied power supply unit Manufacturer TechniSat Digital GmbH, Julius-Saxler- Straße 3, D-54550 Daun Model identifier BQ30A-0903000-G Input voltage AC 100 - 240 V Input alternating current frequency 50/60 Hz Output voltage DC 9.0 V Output current...
-
Page 39: Disposal Instructions
21 Disposal instructions The packaging of your appliance consists exclusively of recyclable materials. Please sort them accordingly and return them to the "Dual System". This product is labelled in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and must not be disposed of with normal household waste at the end of its service life, but rather must be handed in at a collection point for the recycling of electrical and electronic equipment.
