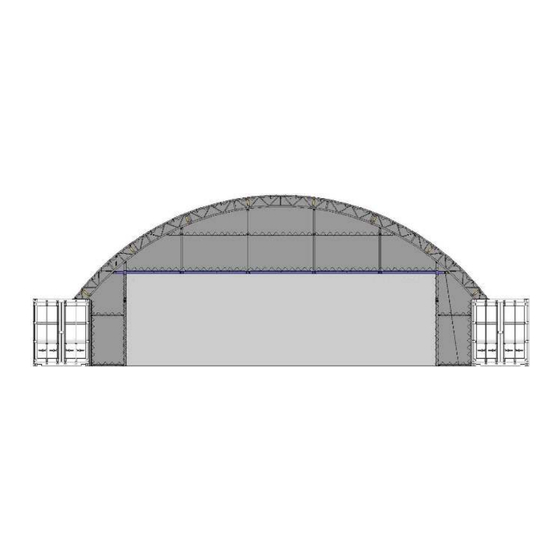

- Page 1 End Wall ( Customized) Model# EWC6040DTR For Shipping Container Roof Double Truss Round Style 60’x40’x15’ Assembly Instructions...
-
Page 2: Equipment List
Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment... - Page 3 YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter.
- Page 4 ANCHORING THE CONTAINER Make sure you have: Welder. Cement. Four 3” x 3” x 6 feet ¼” Square steel angle As shown in the diagram 1, make a 3 ft deep hole right beside one of the front and opposite rear corners of the container, in which the 6ft square steel will be installed.
- Page 5 Highly Recommended 1. All container canopy covers need to be removed during windstorm of 60 mph, leaving frame assembled. Customer responsibility. 2. All container canopy covers need to be removed before a snowstorm of 1-2 inches (for single truss Shipping container roofs) and 3-4 inches (for double truss Shipping container roofs), leaving the frame assembled.
- Page 6 End Wall with Sliding Curtain Door Parts List Part Qty/ Description Code lower square tube door post upper square tube door post left short cross beam right short cross beam with pulley-2pcs left long cross beam with track and pulley-1pc right long cross beam with track middle cross beam with track connection plate for door post...
- Page 7 square tube with velcro, left & right cable tie for auxiliary hanging cover roller, connecting buckle, carabiner spring buckle for door curtain 23 sets (already installed) tube clip for bracing tube No.32 and rail No.34 bolt M10x30 for connection plate of post No.29, No.30, and rail No.33, No.35 bolt M10x50 for post connection...
-
Page 8: Frame Installation
FRAME INSTALLATION Installation for End Wall Basing on 40ft high cube container (9’6’’ high) Sliding curtain door size: W44ft x H13.12ft... -
Page 10: Cover Installation
COVER INSTALLATION Installation for End Wall Basing on 40ft high cube container (2.9m, 9’6’’ high) Sliding curtain door size: W13.4xH4m (44ftx13.12ft) -
Page 11: Door Opening
Door Curtain Installation Put one end of the rope (No.46) through the pulley (welded to Part No. 25) and through the D-ring on the door frame (welded on Part No.27), then pass through the upper pulley (welded on Part No.24). Make the rope naturally sag to the ground.
