Page 3
YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter. Please read these instructions before you begin.

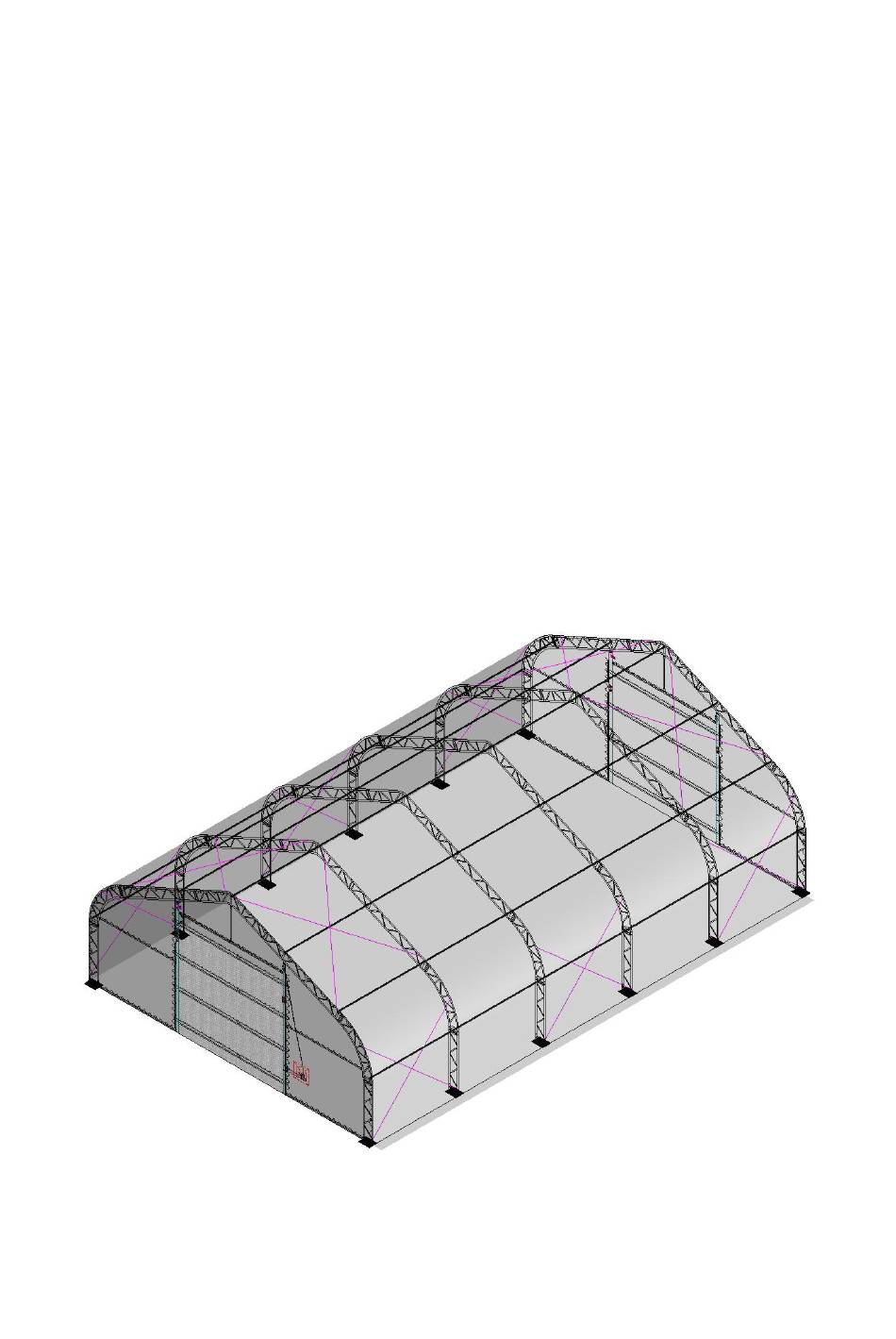

Fabric Building FB335017 (W10xL15.25xH5.2m) Parts List Part Qty/ Description Code top truss for 2nd to 5th arch top truss for 1st and 6th arch roof truss for 2nd to 5th arch roof truss for 1st and 6th arch shoulder truss for 2nd to 5th arch shoulder truss for 1st and 6th arch upright truss purlin...
Page 5
end plug (Φ32) for tensioning tube No.7 belt for ratchet on base plate rope for roof cover, 4 bundles 1 pack roof cover duct tape expansion bolt steel wire turnbuckle steel wire clamp steel wire steel wire square tube post on the lower left side of the front and back door square tube post on the lower right side of the front and back door...
Page 6
door winch bracket support tube for winch bracket pole for door opening door bracing tube 2pcs/set 6 sets bottom bracing tube with hole 2 sets 2pcs/set bolt M10x30 for rail and connection plate bolt M10x50 for post and truss bolt M6x40 for door bracing tube No.34, No.35 bolt M12x130 for square tube post No.22, 23, 24, 25...
INSTALLATION PROCESS A—BASE PLATES INSTALLATION Please refer to the below diagram to mark the position of base plate. The measurement is from center to center of base plates. Referring to the diagram and confirm the place of base plates. ENSURE THAT THE FOUNDATION IS SQUARE. Note: The expansion bolt (No.18, No.43) applies for fixing base plate on concrete ground.
Page 8
B—FRAME INSTALLATION First & Sixth Arch and Front & Back Wall 1. Find Trusses (No.1A, 2A, 3A, 4) for first and sixth arch and connect them by bolt M8x60 (No.11). 2. Find relative parts of posts and rails for front and back wall and assemble them according to the below diagram.
Page 9
Second Arch to Fifth Arch Installation 3. Find Trusses (No.1, 2, 3 and 4) for second to fifth arch and connect them by bolt M8x60 (No.11). Page 9...
Page 10
Purlin and Steel Wire Installation 4. Lift the assembled arches onto base plates (No.8 and No.9) and connect them by bolt M8x60 (No.11). 5. When finish installing the first and second arches, install purlin (No.5) and connect them by bolt M10x70 (No.12).
Page 11
C-INSTALLING COVER Front & Back Cover and Winch Door Installation Install the winch door refer to the diagram bellow. Winch Door Installation Page 11...
Page 12
1. Install the front door frame and door winch bracket 2. Fix the winch to the bracket. Make sure the winch handle faces the outside. Refer to Figure 1. Page 12...
Page 13
3. Take out the door curtain cloth and lay it on the ground. Pay attention to the direction. The side with pipe pockets faces inward. 4. Connect the door bracing tube (2pcs/set) with M6x40 bolt. 5. Thread the door bracing tube into the pocket from top to bottom. Pay attention to the bottom bracing tube.
Page 14
6. Put the steel wire rope through the pulley on the door frame as shown in Figure 3, so that the steel wire rope is located on the inner side of the door frame and on the same plane as the pulley, and then the steel wire rope sags naturally.
Page 15
9. Adjust the length of the steel wire rope to be equal on both sides.Fix the wire rope fold to the hole in the winch. Refer to Figure 4. Page 15...
Page 16
10. Turn the winch clockwise to lift the door curtain cloth and bracing tubes to a position about 40-50cm away from the cross beam. Lace the eyelets on the cloth to cross beam with a rope. Refer to Figure 5. Page 16...
Page 17
11. Now the winch door installation is completed.Turn the winch clockwise to raise and counterclockwise to lower the door. The steel wire rope shall be evenly wound on the winch so that the door can rise and fall smoothly. Page 17...
Page 18
Front & back Cover Installation Install front & back cover (No.47) to the first and sixth arch and posts and rails on front and back wall with rope (No.41) and cable tie (No.42). Roof Cover Installation NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation.
