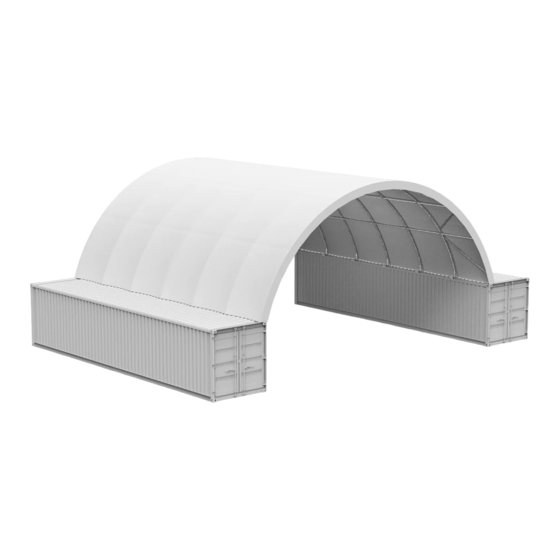

- Page 1 SHELTER ASSEMBLY MANUAL Model #C4040 Back wall & frame of Container Shelter C4040 Back wall & frame...
- Page 2 SPECIFICATION Width:40ft Length:40ft Height:15ft IMPORTANT ----- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
- Page 3 Parts List Part Code Description Base plates for winch door Side base plates Lower standing leg at left Bottom standing leg for front endwall at left Bottom middle standing leg for front endwall at right Top middle standing leg for front endwall Top side standing leg for front endwall Bottom door post at left Bottom door post at right...
- Page 4 Plastic Plug Rope for pull door Front cover Added legs Added door frame...

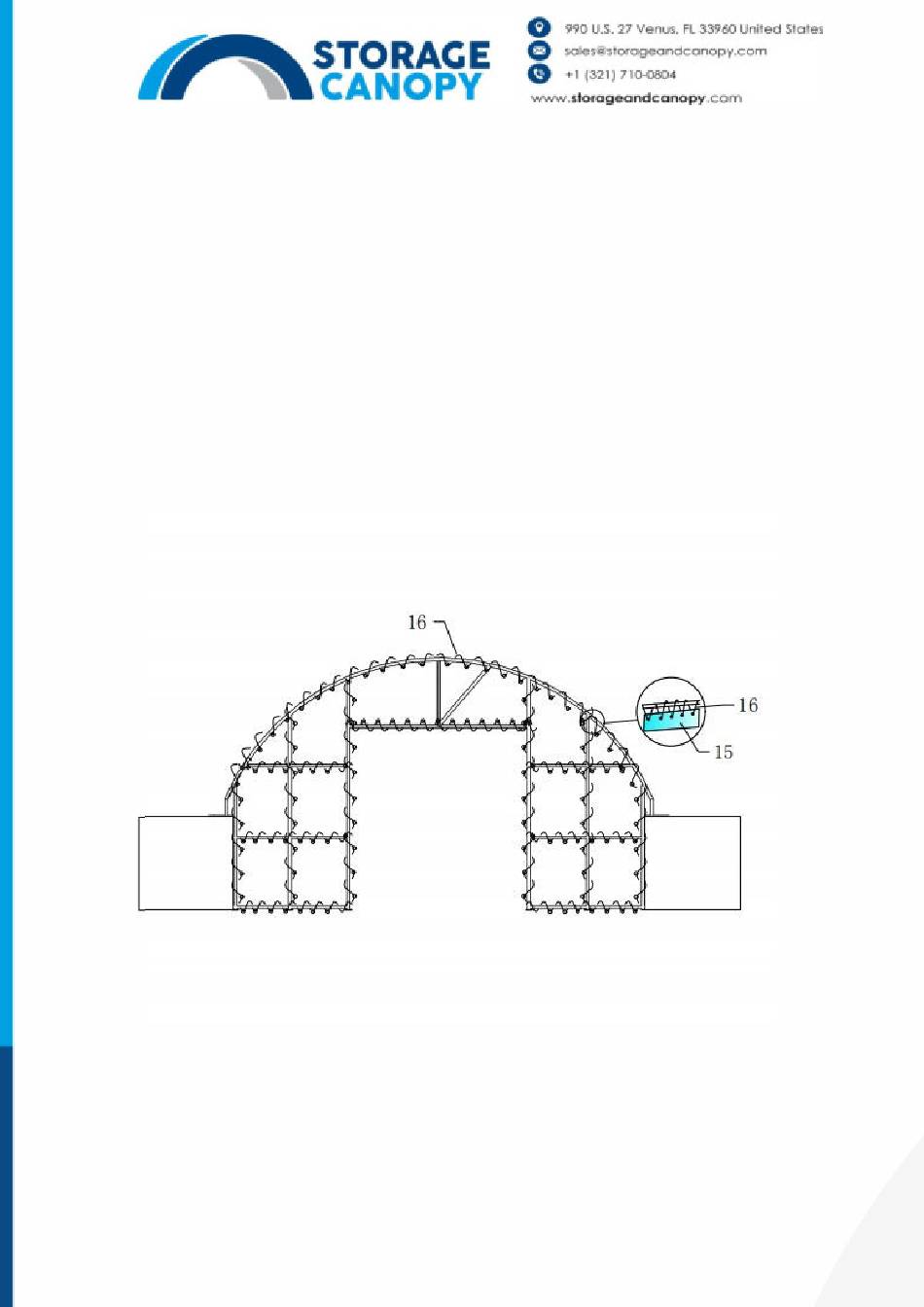

- Page 5 EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—FRAME INSTALLATION Figure 1 There are four base plate comes with the back endwall. Each of them should be placed in the right position(especially the two base plate close to the containers.)
- Page 6 C--INSTRUCTION FOR COVER ATTACHED Assembly the end cover first. NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with a...
- Page 7 Figure 3 The process is quite easy. But some tightening adjustments will be necessary to produce a flat. Please adjust the cover timely.
