SHELTER ASSEMBLY
MANUAL

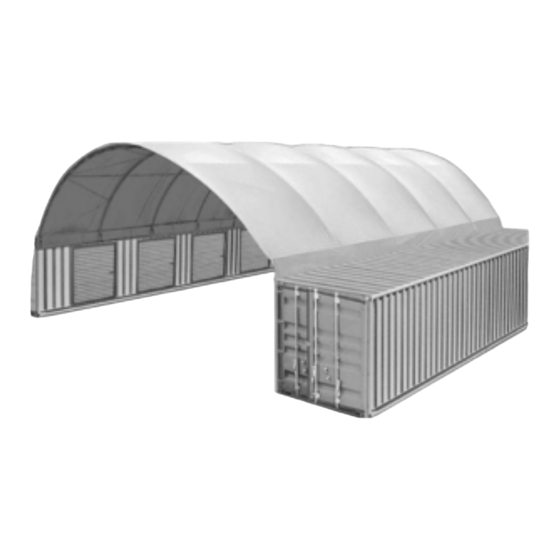

40x60x15 ST Container shelter
Single truss
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40x60x15 ST Container shelter and is the answer not in the manual?

Questions and answers

Related Manuals for Storage Canopy 40x60x15 ST Container shelter

Summary of Contents for Storage Canopy 40x60x15 ST Container shelter

  • Page 1 SHELTER ASSEMBLY MANUAL 40x60x15 ST Container shelter Single truss...

  • Page 2: Parts List

    PARTS LIST Part Code Description Left base plate Rigth base plate Roof bent tube Upside bent tube Underside bent tube Lower bent tube Purlin Inclined support tube Clip for inclined support tube Bolts M12x100 Bolts M10x90 Ratchet Nylon band for ratchet Angle seats Roof cover ∮...

  • Page 3: Specifications

    SPECIFICATIONS Width: 40 ft Length: 60 ft Height: 15 ft IMPORTANT: READ MANUAL FIRST Improper site preparation, assembly and maintenance may invalidate warranty and cause unnecessary and costly mistakes. If you have any questions, contact your local dealer. For an easy assembly process, we have identified each individual component with the part code as indicated in the parts list.

  • Page 4: Installation Process

    EQUIPMENT AND TOOLS FOR INSTALLATION 1. Measuring tape 2. Alignment string 3. Step ladder 4. Welder 5. Sledgehammer 6. Wrench 7. Scissors INSTALLATION PROCESS A - BASE PLATES INSTALLATION Please refer to the Figure 1 to place the base plates. Figure 1 1.
  • Page 5 B - FRAME INSTALLATION (Refer to figure 2 for the entire diagram) Figure 2 1. Connect the Roof Bent Tube (part code 1), the Upside Bent Tube (part code 2), the Underside Bent Tube (part code 3) and the Lower Bent Tube (part code 4) with the Bolts M10x90 (part code 9);...
  • Page 6 2. Insert one end of the assembled arch into one base plate and insert the other end of the arch into the opposite base plate, then secure them using the bolts. Figure 4 3. After installing the first two arches, connect the Purlin (part code 5) onto them using the Bolts M12x100 (part code 8).
  • Page 7 4. Install the Inclined Support tube (part code 6) using Clip for Inclined Support Tube (part code 7). 5. Then install the third arch into the base plate and connect the purlins. 6. Assemble the arches one by one until the frame is finished.
  • Page 8 C - ROOF COVER INSTALLATION NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
  • Page 9 3. On the Roof cover, cut pockets over each ratchet on the base plates, then use the Nylon band for ratchet (part code 11) to tie down the Tensioning tubes. Figure 8 4. Weld the Angle seats (part code 12) on each container and use Knitting rope for cover (part code 14) to knit the cover on the two side arches and tie the Roof cover to the Angle seats.
  • Page 10 Please, check the detailed installation pictures below: NOTES: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANYCIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy, but some tightening adjustments will be necessary to get a flat, tensioned roof cover.
