SHELTER ASSEMBLY
MANUAL
20x40x6.5 ST Container shelter
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST Container shelter and is the answer not in the manual?

Questions and answers

Summary of Contents for Storage Canopy ST Container shelter

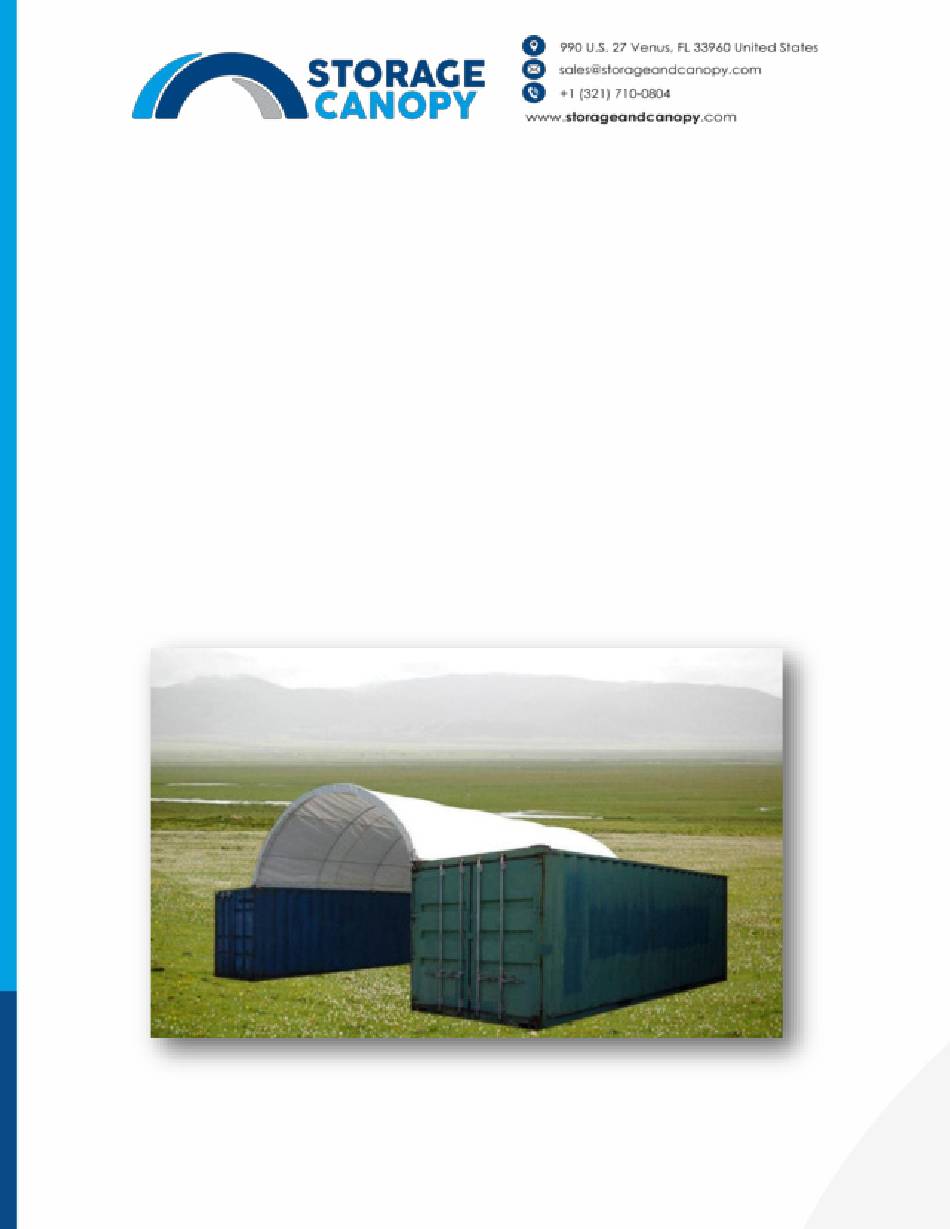

  • Page 1 SHELTER ASSEMBLY MANUAL 20x40x6.5 ST Container shelter...
  • Page 2 PARTS LIST Part Code Description Left base plate Rigth base plate Three way fitting Four way fitting Top bent tube Sidewall bent tube Top roof purling Connection purlin Lower tensioning tube for roof cover 2 groups Angle seat for roof cover Roof cover Plastic plug Ropes...
  • Page 3 SPECIFICATIONS Width: 20 ft Length: 40 ft Height: 6.5 ft IMPORTANT: READ MANUAL FIRST Improper site preparation, assembly and maintenance may invalidate warranty and cause unnecessary and costly mistakes. If you have any questions, contact your local dealer. For an easy assembly process, we have identified each individual component with the part code as indicated in the parts list.
  • Page 4 EQUIPMENT AND TOOLS FOR INSTALLATION 1. Measuring tape 2. Alignment string 3. Step ladder 4. Welder 5. Sledgehammer 6. Wrench 7. Scissors INSTALLATION PROCESS A - BASE PLATES INSTALLATION Please refer to the Figure 1 to place the base plates. Figure 1 1.
  • Page 5 B - FRAME INSTALLATION (Refer to figure 2 for these steps) Figure 2 1. Connect the Three way fitting (part code 1), the Top bent tube (part code 3) and the Sidewall bent tube (part code 4) with the Bolts M8x70 (part code 13); these make the external group of arches.
  • Page 6 C - ROOF COVER INSTALLATION NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
  • Page 7 3. On the Roof cover, cut pockets over each ratchet on the base plates, then use the Ratchet strap (part code 14A) to tie down the Lower tensioning tubes. Figure 5 4. Weld the Angle seats (part code 8) on each container and use Rope (part code 11) to knit the cover on the two side arches and tie the Roof cover to the Angle seats.
  • Page 8 Please, check the detailed installation pictures below: NOTES: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANYCIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy, but some tightening adjustments will be necessary to get a flat, tensioned roof cover.
