Fabric building double truss peak style (20 pages)
Summary of Contents for Storage Canopy W33 x L40 x H12 ft
Page 1

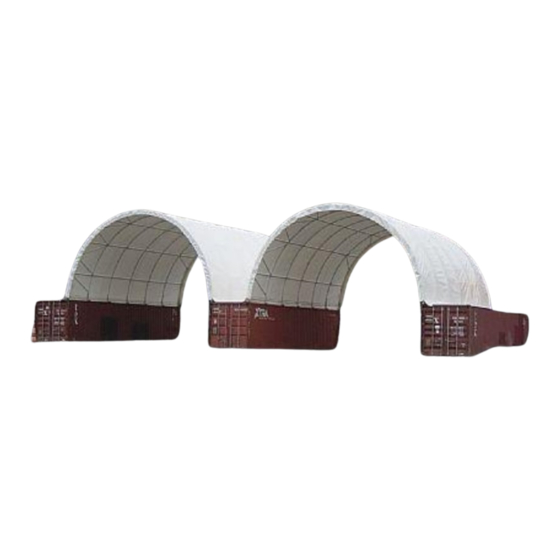

SHELTER ASSEMBLY MANUAL Model # W33 x L40 x H12 ft...
Page 2
SPECIFICATION Width: 33 Length: 40 Height: 12 IMPORTANT ---- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
Page 3
Parts List Part Code Description Base Plate Diagonal Base Plate for two corners Top bent tube Middle bent tube Sidewall bent tube Connection purlin Support tube Clip Lower tensioning tube for roof cover 2groups Roof cover Bolt M8x70 Bolt M10x80 Ropes 1dozen ∮32 Plastic Plug for end of tensioning tube...
Page 4
EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—BASE INSTALLATION Please refer to the diagram (Figure 1) to place the base plates. Figure 1 1.
Page 5
B—FRAME INSTALLATION Please refer to the diagram (Figure 1) to install the Frame. Figure 2 As Figure 2 shown find Top bent tube (part code 1), Middle bent tube (part code2) and Sidewall bent tubes (part code3). To connect them by Screw M8x70(part code 9), which makes one group of arches.
Page 6
C- INSTRUCTION FOR COVER ATTACHED Install the Roof Cover NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
Page 7
NOTE: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDERANY CIRCUMSTANCES until the final assembly and tightening has been completed.The process is quite easy. But some tightening adjustments will be necessary to produce a flat, tensioned roof cover. Please adjust the roof cover every month.
