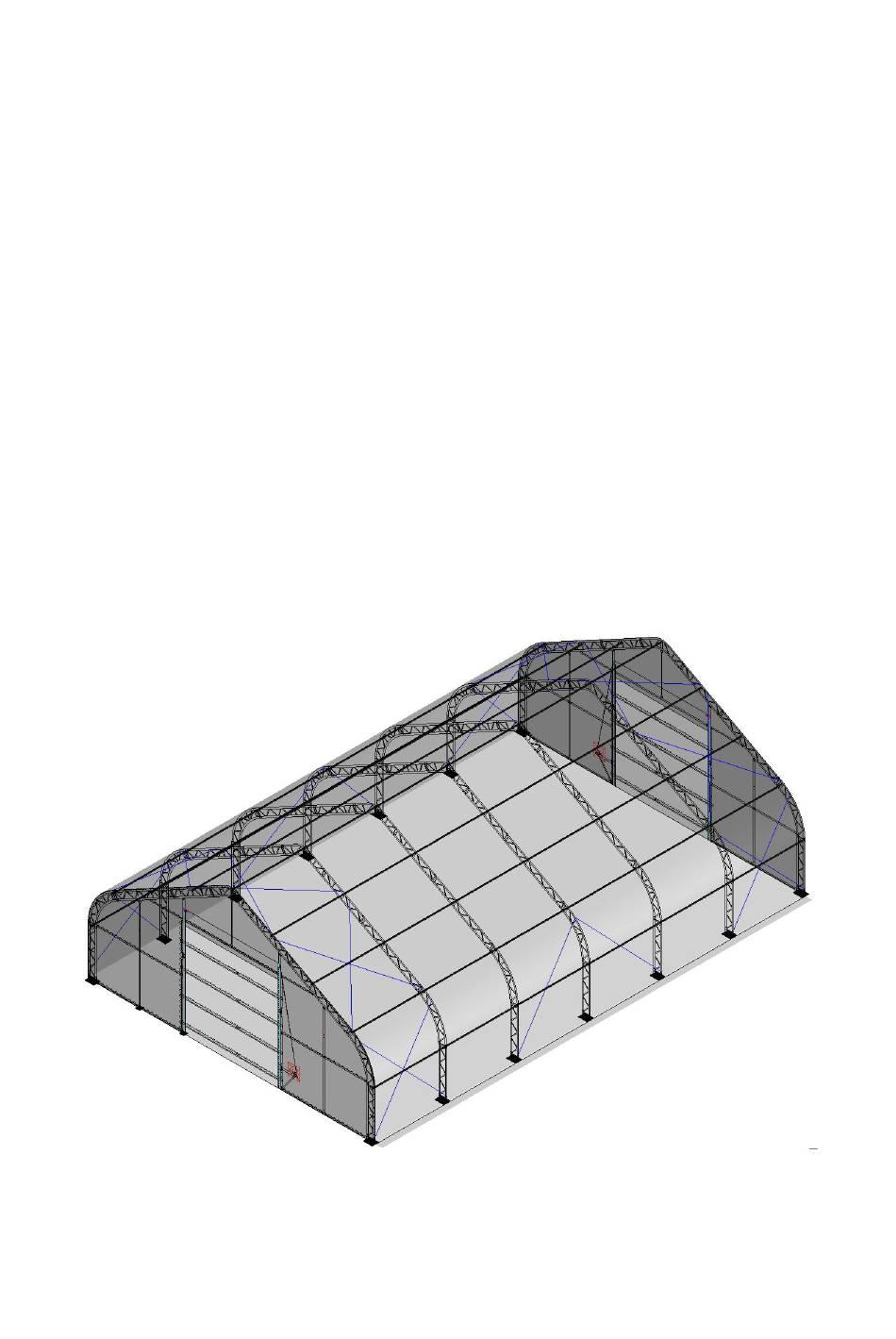

- Page 1 Fabric Building Model# FB406021P 40’x60’x21’ W12.2x L18.3 x H6.4m Assembly Instructions 20220301 Page 1...
-
Page 2: Recommended Tools
RECOMMENDED TOOLS Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment 20220301 Page 2... - Page 3 YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter. Please read these instructions before you begin.
-
Page 4: Parts List
Fabric Building FB406021 (W12.2xL18.3xH6.4m) Parts List Part Qty/ Description Code Roof top truss for 2nd to 6th arch top truss for 1st and 7th arch roof truss for 2nd to 6th arch roof truss for 1st and 7th arch lower roof truss for 2nd to 6th arch lower roof truss for 1st and 7th arch... - Page 5 corner base plate (left & right) for 1st and 7th arch, installed with ratchet interior base plate for 2nd to 6th arch, installed with ratchet tube clip for steel wire No.22 bolt M8x70 for truss swaged end connection bolt M10x70 for purlin connection end plug (Φ40) for tensioning tube No.8...
- Page 6 square tube post on the upper left side of the front and back door square tube post on the upper right side of the front and back door connection plate for square tube post No.23, 24, 25, 26 interior lower post interior upper post base plate for front and back wall...
- Page 7 bolt M10x50 for post and truss bolt M6x40 for door bracing tube No.40, No.41 bolt M12x130 for square tube post No.23, 24, 25, 26 bolt M10x70 for square tube post No.23, 24, 25, 26 rope for front and back 2 packs cover,6 bundles cable tie for fixing front and back cover...
-
Page 8: Installation Process
INSTALLATION PROCESS A—BASE PLATES INSTALLATION Please refer to the below diagram to mark the position of base plate. The measurement is from center to center of base plates. Referring to the diagram and confirm the place of base plates. ENSURE THAT THE FOUNDATION IS SQUARE. Note: The expansion bolt (No.19, No.49) applies for fixing base plate on concrete ground. - Page 9 B—FRAME INSTALLATION First & Seventh Arch and Front & Back Wall 1. Find Trusses (No.1A, 2A, 3A, 4A, 5) for first and seventh arch and connect them by bolt M8x70 (No.12). 2. Find relative parts of posts and rails for front and back wall and assemble them according to the below diagram.
- Page 10 Second Arch to Sixth Arch Installation 3. Find Trusses (No.1, 2, 3, 4, 5) for second to sixth arch and connect them by bolt M8x70 (No.12). 20220301 Page 10...
- Page 11 Purlin and Steel Wire Installation 4. Lift the assembled arches onto base plates (No.9 and No.10) and connect them by bolt M8x70 (No.12). 5. When finish installing the first and second arches, install purlin (No.6) and connect them by bolt M10x70 (No.13).
- Page 12 C-INSTALLING COVER Front & Back Cover and Winch Door Installation Install the winch door refer to the diagram bellow. Winch Door Installation 20220301 Page 12...
- Page 13 1. Install the front door frame and door winch bracket 2. Fix the winch to the bracket. Make sure the winch handle faces the outside. Refer to Figure 1. 20220301 Page 13...
- Page 14 3. Take out the door curtain cloth and lay it on the ground. Pay attention to the direction. The side with pipe pockets faces inward. 4. Connect the door bracing tube (2pcs/set) with M6x40 bolt. 5. Thread the door bracing tube into the pocket from top to bottom. Pay attention to the bottom bracing tube.
- Page 15 6. Put the steel wire rope through the pulley on the door frame as shown in Figure 3, so that the steel wire rope is located on the inner side of the door frame and on the same plane as the pulley, and then the steel wire rope sags naturally.
- Page 16 9. Adjust the length of the steel wire rope to be equal on both sides.Fix the wire rope fold to the hole in the winch. Refer to Figure 4. 20220301 Page 16...
- Page 17 10. Turn the winch clockwise to lift the door curtain cloth and bracing tubes to a position about 40-50cm away from the cross beam. Lace the eyelets on the cloth to cross beam with a rope. Refer to Figure 5. 20220301 Page 17...
- Page 18 11. Now the winch door installation is completed.Turn the winch clockwise to raise and counterclockwise to lower the door. The steel wire rope shall be evenly wound on the winch so that the door can rise and fall smoothly. 20220301 Page 18...
- Page 19 Front & back Cover Installation Install front & back cover (No.53) to the first and seventh arch and posts and rails on front and back wall with rope (No.47) and cable tie (No.48). Roof Cover Installation NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation.
- Page 20 Now your assembly is completed 20220301 Page 20...
