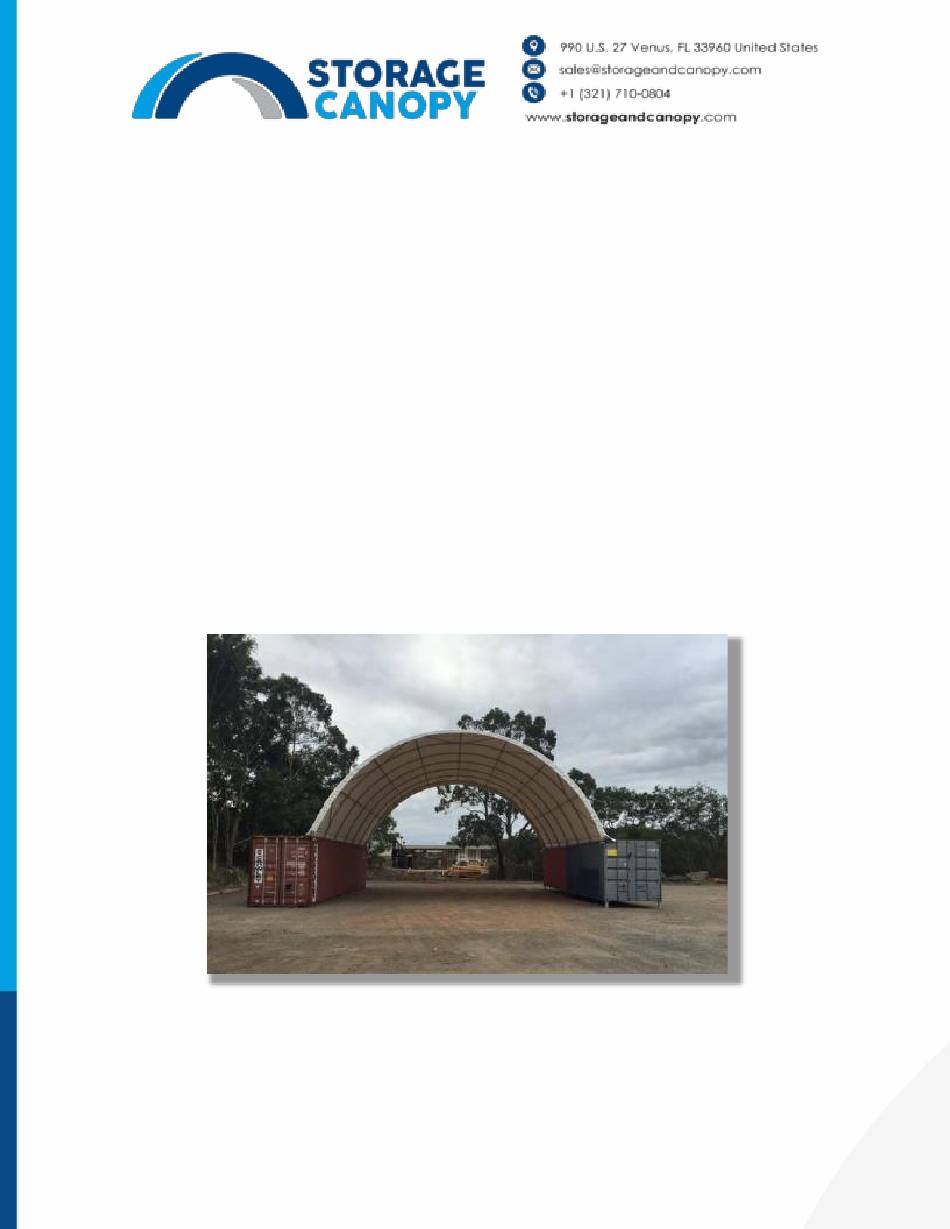

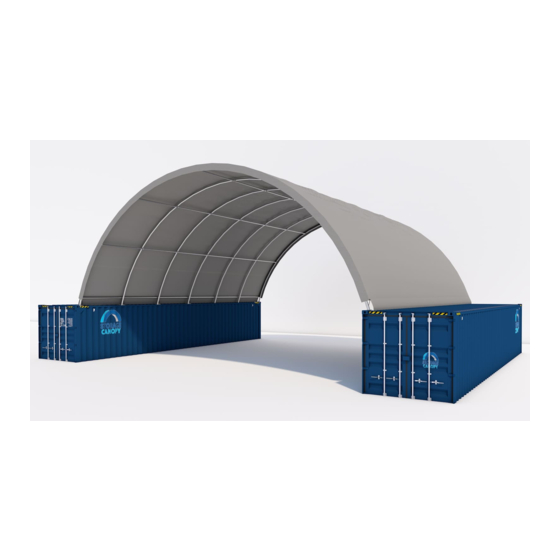

SHELTER ASSEMBLY
MANUAL
40x40x15 ST Container shelter
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40x40x15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Storage Canopy 40x40x15

Summary of Contents for Storage Canopy 40x40x15

  • Page 1 SHELTER ASSEMBLY MANUAL 40x40x15 ST Container shelter...

  • Page 2: Parts List

    PARTS LIST Part Code Description Left base plate Rigth base plate Roof bent tube Upside bent tube Underside bent tube Lower bent tube Purlin Inclined support tube Clip for inclined support tube Bolt M12x110 Bolt M10x100 Winch (ratchet?) Belts for winch Angle seats Roof cover ∮...
  • Page 3 ANCHORING THE CONTAINER Make sure you have: • Welder. • Cement. • Four 3” x 3” x 6 feet ¼” Square steel angle 1. As shown in the diagram 1, make a 3 ft deep hole right beside one of the front and opposite rear corners of the container, in which the 6ft square steel will be installed.
  • Page 4 Highly Recommended 1. All container canopy covers need to be removed during windstorm of 60 mph, leaving frame assembled. Customer responsibility. 2. All container canopy covers need to be removed before a snowstorm of 1-2 inches (for single truss Shipping container roofs) and 3-4 inches (for double truss Shipping container roofs), leaving the frame assembled.

  • Page 5: Specifications

    SPECIFICATIONS Width: 40 ft Length: 40 ft Height: 15 ft IMPORTANT: READ MANUAL FIRST Life span is only on the is only on the material itself not on the installation on the canopy structure. 7 to 10 years on the tarp and 15 years on the frame. Improper site preparation, assembly and maintenance may invalidate warranty and cause unnecessary and costly mistakes.

  • Page 6: Installation Process

    EQUIPMENT AND TOOLS FOR INSTALLATION 1. Measuring tape 2. Alignment string 3. Step ladder 4. Welder 5. Sledgehammer 6. Wrench 7. Scissors INSTALLATION PROCESS A - BASE PLATES INSTALLATION Please refer to the Figure 1 to place the base plates. Figure 1 1.
  • Page 7 B - FRAME INSTALLATION (Refer to figure 2 for the full diagram) Figure 2 1. Connect the Roof Bent Tube (part code 1), the Upside Bent Tube (part code 2), the Underside Bent Tube (part code 3) and the Lower Bent Tube (part code 4) with the Bolt M10x100 (part code 9);...
  • Page 8 3. After installing the first two arches, connect the Connection purlin (part code 5) onto them using the Bolts M12x110 (part code 8). There are 7 pieces of Connection purlins (part code 5) between each arch. 4. Install the Inclined Support tube (part code 6) using Clip for Inclined Support Tube (part code 7).
  • Page 9 C - ROOF COVER INSTALLATION NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
  • Page 10 3. Cut pockets over each ratchet on the base plates and put the Tensioning Tube for roof cover (part code 16) into the pocket of Roof cover. Then use the Nylon band (part code 11) to tie down the Lower tensioning tubes as shown in Figure 6. Figure 7 4.
  • Page 11 Please, check the detailed installation pictures below: NOTES: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANYCIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy, but some tightening adjustments will be necessary to get a flat, tensioned roof cover.
