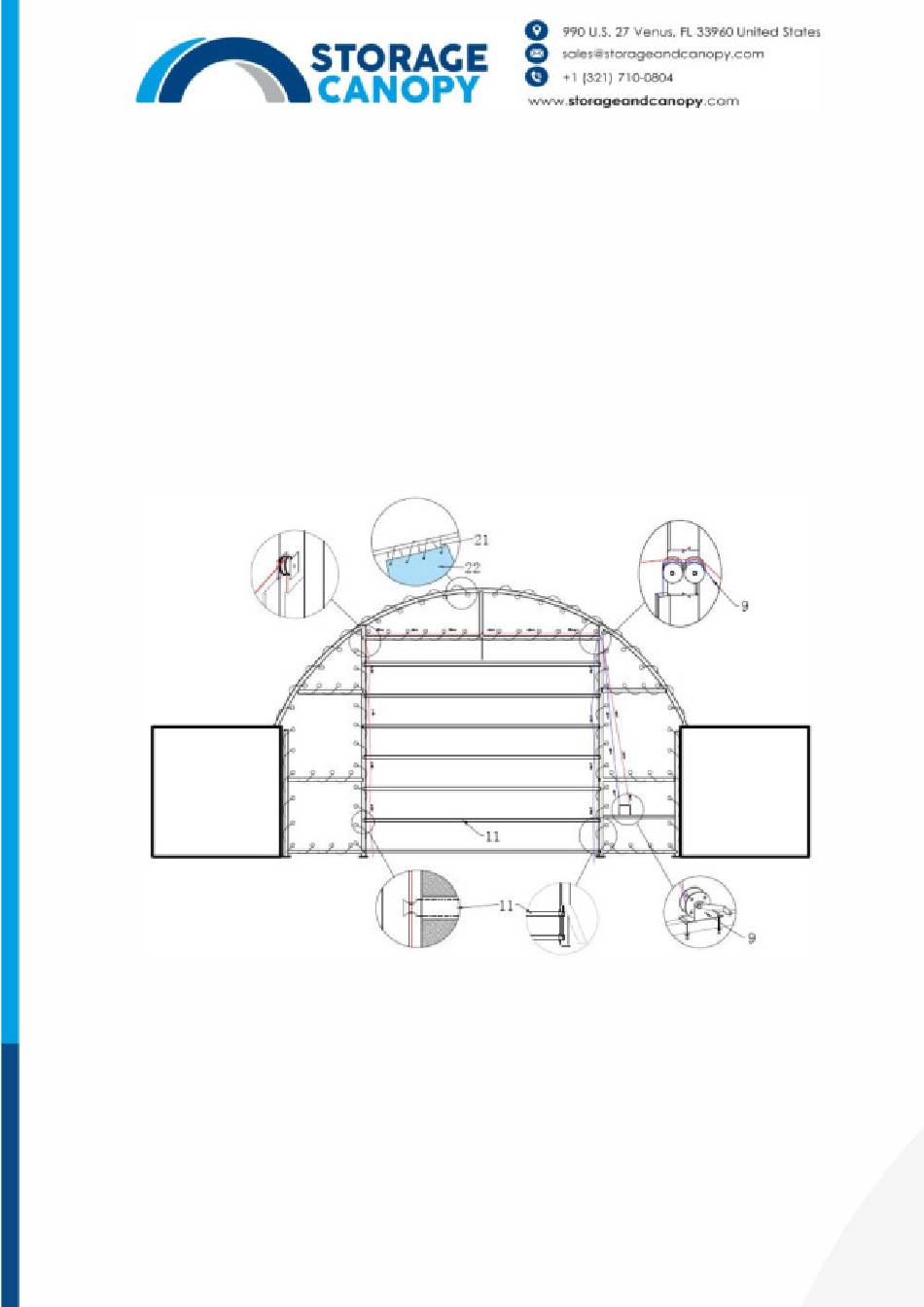

- Page 1 SHELTER ASSEMBLY MANUAL Model # C2620 Back wall & Frame C2260 Back wall & frame...
- Page 2 Part Number Description Number Base plates for winch door Base plates for door side Lower standing leg at left Lower standing leg at right Lower door frame at left Lower door frame at right Upper door frame at left Upper door frame at right Door beam 1 Group Door boom...
- Page 3 Soldering iron for door leg Bolts M10*90 Carriage Bolts M8*80 Carriage Bolts M10*90 Bolts M10*30 Plastic Plug Rope for pull door Front cover Added legs Added door frame...
- Page 4 SPECIFICATION Length: 20 ft Width: 26 ft Height: 10ft IMPORTANT ----- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
- Page 5 EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A--FRAME INSTALLATION Please refer to the diagram (Figure 1) to install the base plate. UNIT: mm Figure 1 There are four base plate comes with the back endwall.
- Page 6 Figure 2 C--INSTRUCTION FOR COVER ATTACHED Assembly the end cover first. NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
- Page 7 Figure 3 The process is quite easy. But some tightening adjustments will be necessary to produce a flat. Please adjust the cover timely.
