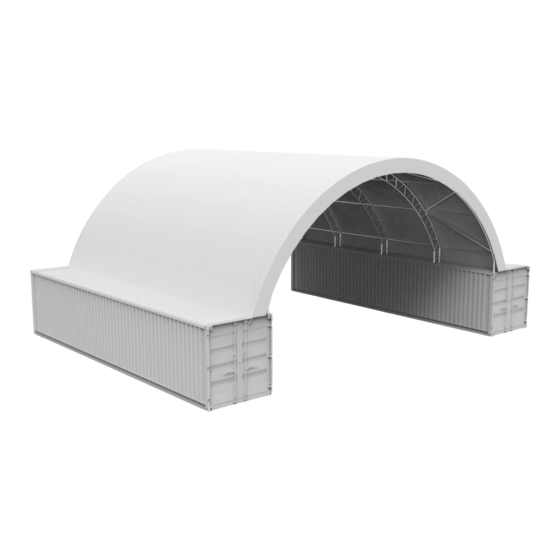

- Page 1 SHELTER ASSEMBLY MANUAL Model # W12xL12xH 4.5m C4040S Back wall & frame of Container Shelter C4040S Back wall & frame...
- Page 2 SPECIFICATION Width:12m Length:12m Height:4.5m IMPORTANT ---- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
- Page 3 Parts List Description Part Code Base Plate for endwall door Base plate at both site Base plate for container side of back wall Lower standing leg Middle standing leg Upper standing leg for the door Upper standing leg for the middle back wall Standing leg for the outside back wall...
- Page 4 φ60 Half arc burning iron Belay pendant Wheels for pull door 1set Rope for pull door 60m...
- Page 5 SPECIFICATION Width: 12m Length: 12m Height: 4.5m IMPORTANT ---- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
- Page 6 EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—FRAME INSTALLATION Please refer to the diagram (Figure 1) to install the base plate. UNIT: Figure 1 There are four base plate comes with the back endwall.
- Page 7 Figure 2 1. The measure is from center to center of the tubes. Referring to the above diagram. 2. As the Figure 2 Shows, please find all the parts accordingly. 3. Connect all parts together by using clips(Part No. 21) and bolts. C--INSTRUCTION FOR COVER ATTACHED Assembly the end cover first.
- Page 8 Figure 3 1. Use rope(NO.16) to tie the end cover (No.15) to the end wall. 2. Use rope(NO.28) to tie the Wheels (No.27) to pull door. The process is quite easy. But some tightening adjustments will be necessary to produce a flat. Please adjust the cover timely.
