Lockly FLEX TOUCH PRO Installation Manual page 12

Step 4
continued
4 Attach the adapter assembly
Ensure assembly mated with the torque blade or spindle and it
is level with the lock and the mounting plate. Check alignment of
the mounting plate before securing it with adhesives.

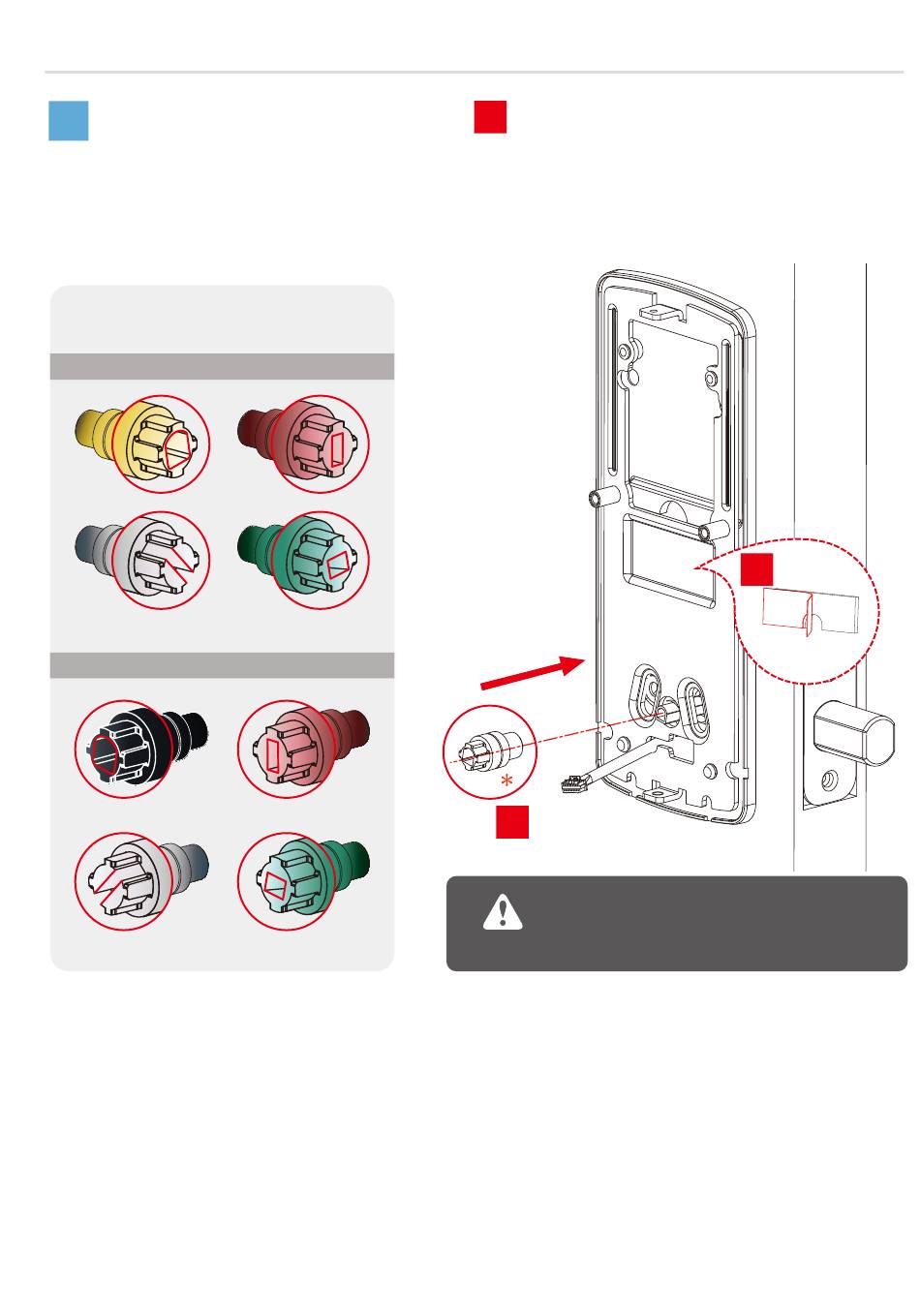

INSTALLATION DIRECTION OF THE
BUSHING ASSEMBLY
Left Swing Door
Glod
Sliver
Right Swing Door
Black
Sliver
Red
Green
Red
Green
INSTALLING THE INTERIOR ASSEMBLY
to the torque blade or spindle.
Z
Z
NOTE: It has to be at the right Angle.
* Turn the adapter assembly to the correct
direction and insert the torque blade or spindle.
According to the right figure, the direction of
IMPORTANT:
each bushing assembly can be corresponding.
