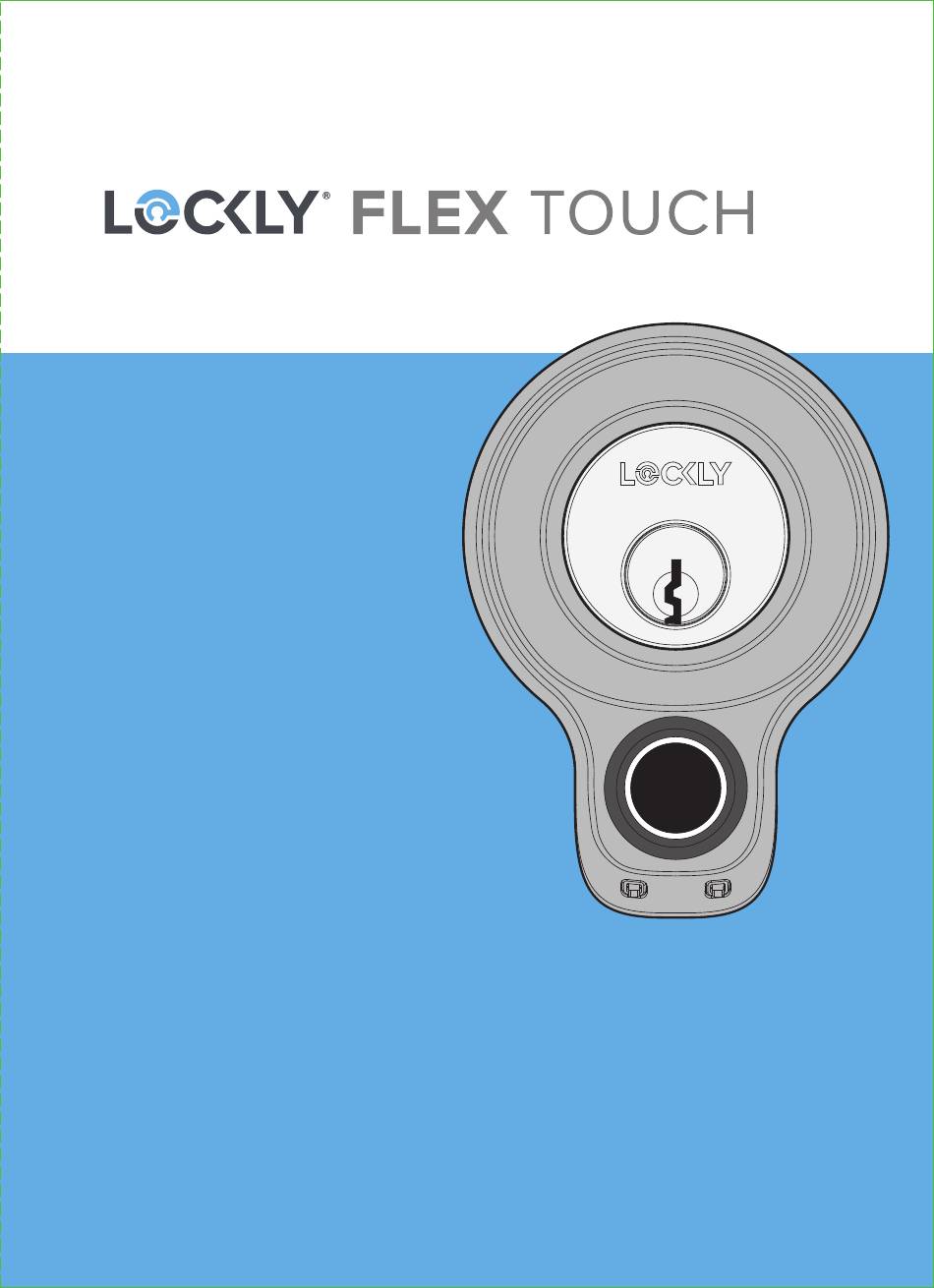

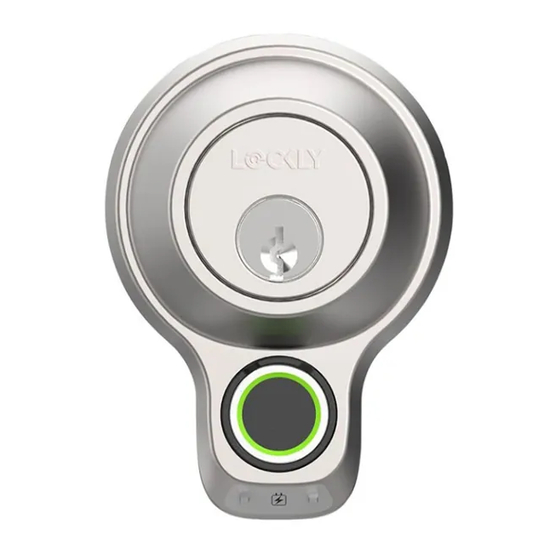

- Page 1 INSTALLATION GUIDE FINGERPRINT DEADBOLT...
-
Page 2: Connect With Us
Connect with us @meetlockly | #LOCKLY... - Page 3 This guide will walk you through step-by-step how to install and get your LOCKLY up and running. Installation generally ® takes less than 30 minutes. If you have any questions please reference our online support at: LOCKLY.com/support or call (669) 500-8835 for help.
- Page 4 PM5×60mm Screw Battery Cover PM4*12MM Screw Deadbolt KA4*20MM Screw Strike Plate Dust Box Activation Card LOCK SERIAL PGDXXXXXXXXXXXXXXXX ACTIVATION CODE XXXXXXXX SCAN & SAVE ® LOCKLY Flex Touch can be fitted for both right swing doors and left swing doors.
- Page 5 Preparation To complete installation, you would need the following: Phillips Screwdriver Tape measure or ruler Prepare door and remove existing lock. If necessary, use provided Installation Template to prepare door. 2-⅜" (60mm) or 2-¾" (70mm) 1-⅜" (35mm) to 2" (50mm) 1"...
- Page 6 Step 1 ADJUST DEADBOLT AND INSTALL Deadbolt slot must align to the center of the door hole. Adjust as shown if needed. 2-3/4" (70mm) or 2-3/8” (60mm) The deadbolt comes set to 2-3/4" (70mm). Adjust length to 2-3/8” (60mm) if necessary. (wear gloves to protect from possible pinching). Push the crank extend the deadbolt Deadbolt comes set at 2-3/4"...
- Page 7 Step 1 ADJUST DEADBOLT AND INSTALL continued Extend the deadbolt by inserting Insert deadbolt to the door edge, a flat-head screwdriver into the make sure that the right side is up slot and turning clockwise. and the slot is in the vertical posi- tion.
- Page 8 Step 2 INSTALLING EXTERIOR ASSEMBLY (B) Before mounting exterior lock assembly (B) make sure torque blade is in the vertical position while deadbolt is extended [1]. Place assembly and torque blade through the deadbolt slot and guide connection cables through the cross-bore hole under the deadbolt as shown.
- Page 9 Step 3 INSTALLING INTERIOR ASSEMBLY (F) 1: Check mounting plate 2: Align and secure mounting plate alignment to door hole before with adhesive strips. Guide con- securing with adhesive strips. nection cable through and secure to the lower left notched hole. Remove key when finished Leave deadbolt extended 4: Use the key to ensure deadbolt...
- Page 10 Step 3 INSTALLING NTERIOR ASSEMBLY (F) continued Plug the cable coming through mounting plate into the interior assem- as shown. Tuck cable under eyelet hooks and route to the right on interior assembly Plug into , match red side of plug with red on socket - insert tightly.
- Page 11 Step 3 INSTALLING NTERIOR ASSEMBLY (F) continued Torque Blade Thumb turn shaft Align torque blade with thumb turn shaft, make sure both are in the vertical position. Before placing the Place the interior assem- Secure the interior interior assembly onto bly against the mounting assembly to mounting the mounting plate,...
-
Page 12: Installing Batteries
Step 4 INSTALLING BATTERIES PRESS & HOLD 1: With door open and deadbolt fully exten- ded, place ribbon inside compartment and insert 3 batteries only (hold on inserting the 4th) in bottom row (note correct -/+ polarity). 2: Press and HOLD the program button, con- tinue to hold and install the 4th battery. - Page 13 Step 5 INSTALLATING DOOR STRIKE Use the supplied door strike or use your existing as long as deadbolt operates smoothly without binding or catching. K(2X) IMPORTANT: Because doors and frames vary in design, it may be necessary to make slight adjustments to your strike plate and/or dust box in order to ensure smooth deadbolt operation.
- Page 14 DOWNLOAD LOCKLY APP Congratulations! You have completed the LOCKLY Flex Touch lock installation. To complete its setup, download the LOCKLY app from the App Store or Google Play and follow on-screen instructions for adding a new lock. Scan or visit LOCKLY.com/app...
- Page 15 Add more Smart to your Home Secure Link Wi-Fi Hub Add the optional LOCKLY Secure Link Wi-Fi Hub, together with the free LOCKLY app, it's easier than ever to securely control and manage your door from anywhere, anytime. Grant access, even when you’re not home...
- Page 16 To download the latest digital copy of installation guide, user manual and/or watch instructional videos, go to LOCKLY.com/installation.
- Page 17 FCC Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 18 We’re here to help! Email: help@LOCKLY.com For the most up to date version of this guide visit: LOCKLY.com/help IMPGD7Y20210531...
