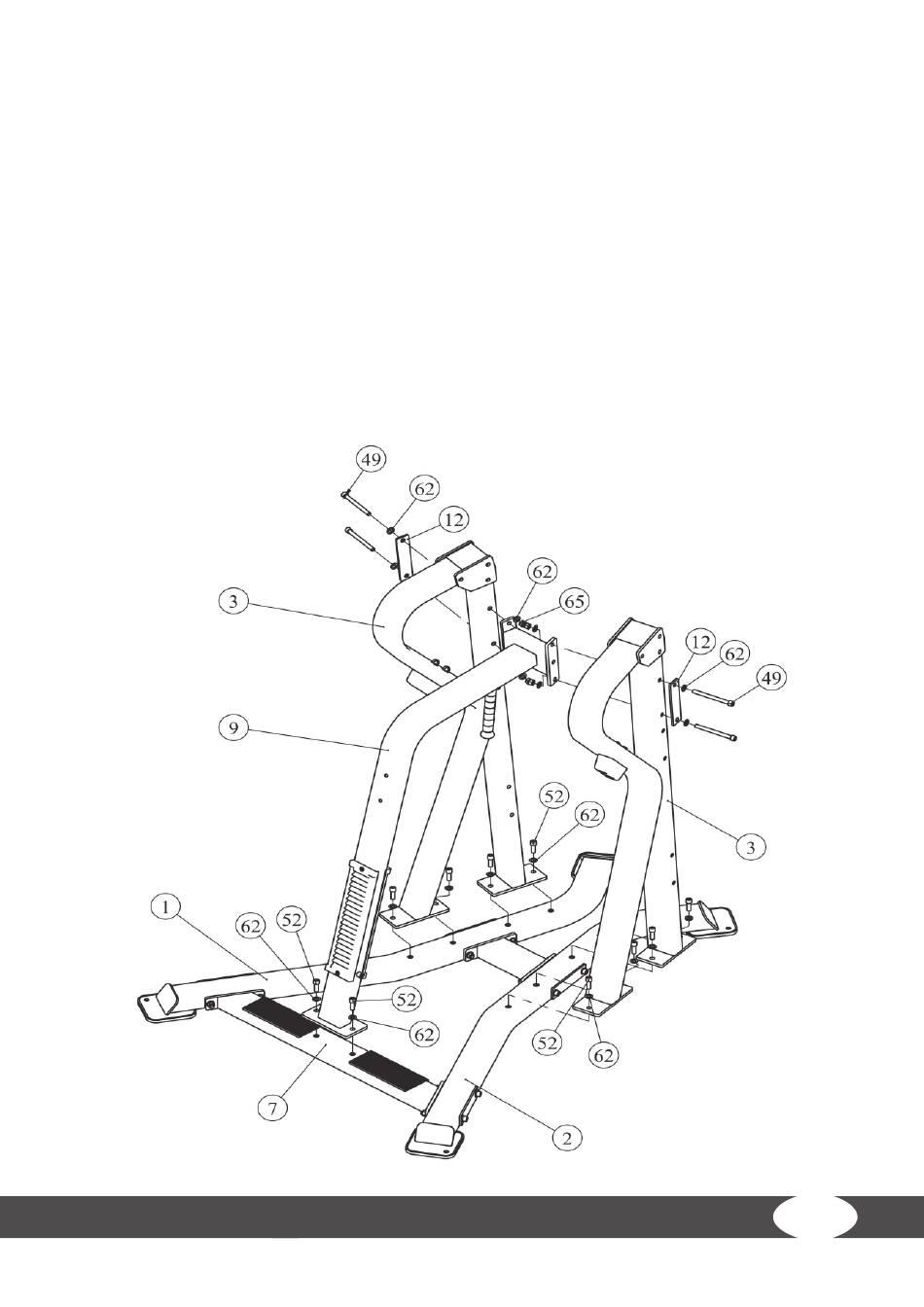

Step 2: Assembly of the Upright Frames and Middle Standing Frame

NOTICE
Do not tighten the screws and nuts completely yet.
1. Attach one upright frame (3) to the left bottom frame (1) with four screws (52) and four fl at
washers (62).
2. Attach another upright frame (3) to the right bottom frame (2) with four screws (52) and four
fl at washers (62).
3. Attach the middle standing frame (9) to the long cross frame (7) with two screws (52) and two
fl at washers (62).
4. Attach the middle standing frame (9) to the upright frames (3) with a total of two narrow outside
plates (12), four screws (49), eight fl at washers (62) and four lock nuts (62).
5. Tighten the screws and nuts from this and the previous assembly step with the appropriate
tools.
