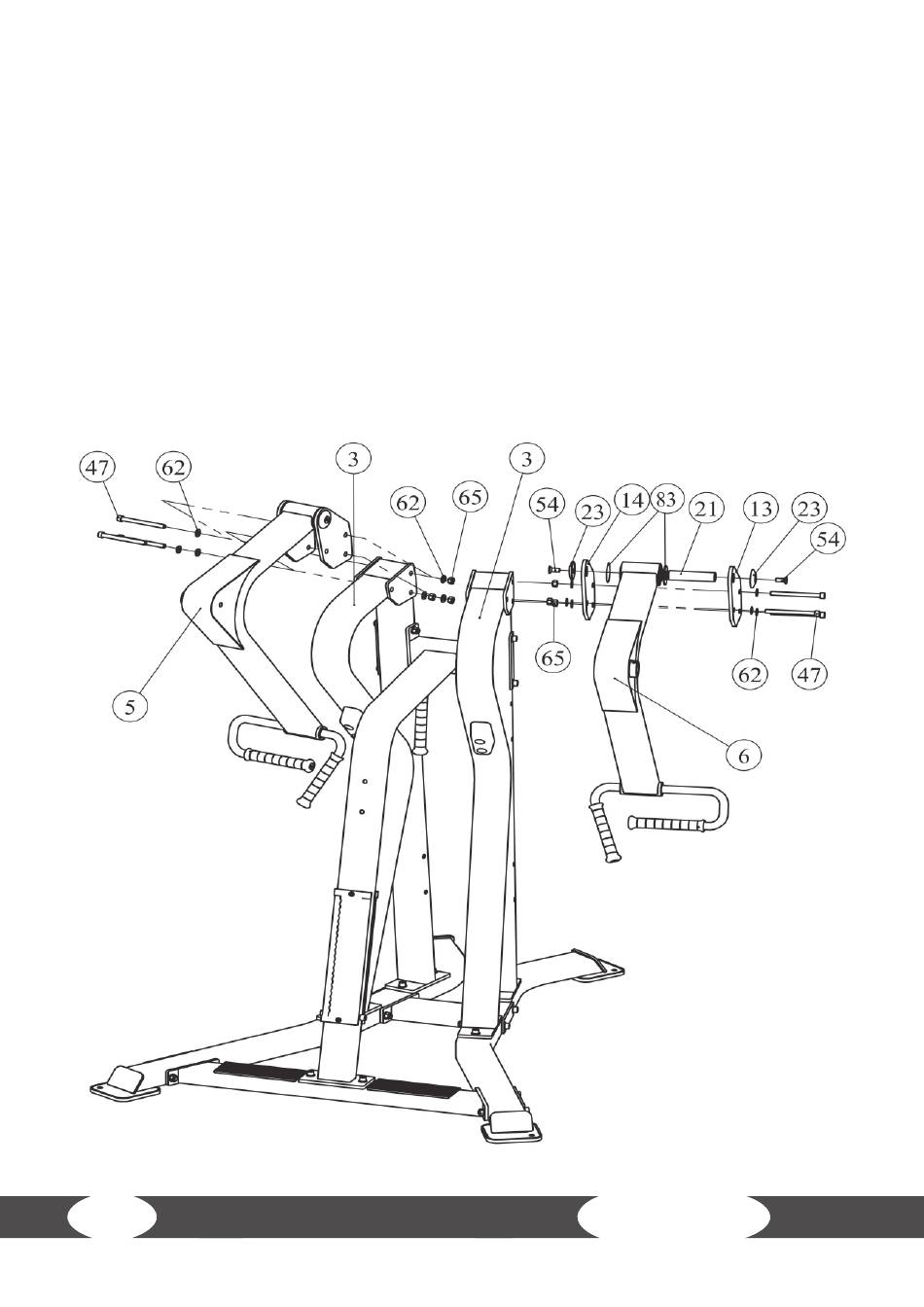

Step 3: Assembly of the Arm Frames
1. Slide one pivot shaft (21) through the right arm frame (6).
2. Attach two baffl e rings (83), one pivot plate 1 (13) and one pivot plate 2 (14) to the right arm
frame (6) with two domed aluminium caps (23) and two screws (54).
3. Attach the right arm frame (6) to the right sided upright frame (3) with three screws (47), six fl at
washers (62) and three lock nuts (65).
4. Repeat the steps 1 to 3 with the left arm frame (5).
5. Tighten the screws and nuts with the appropriate tools.
