Step 5: Assembly of the Seat Frame

NOTICE
+ Do not tighten the screws and nuts completely yet.
+ Make sure that the seat frame (15) can be moved up and down smoothly. If needed, slightly
loosen the screws and nuts.

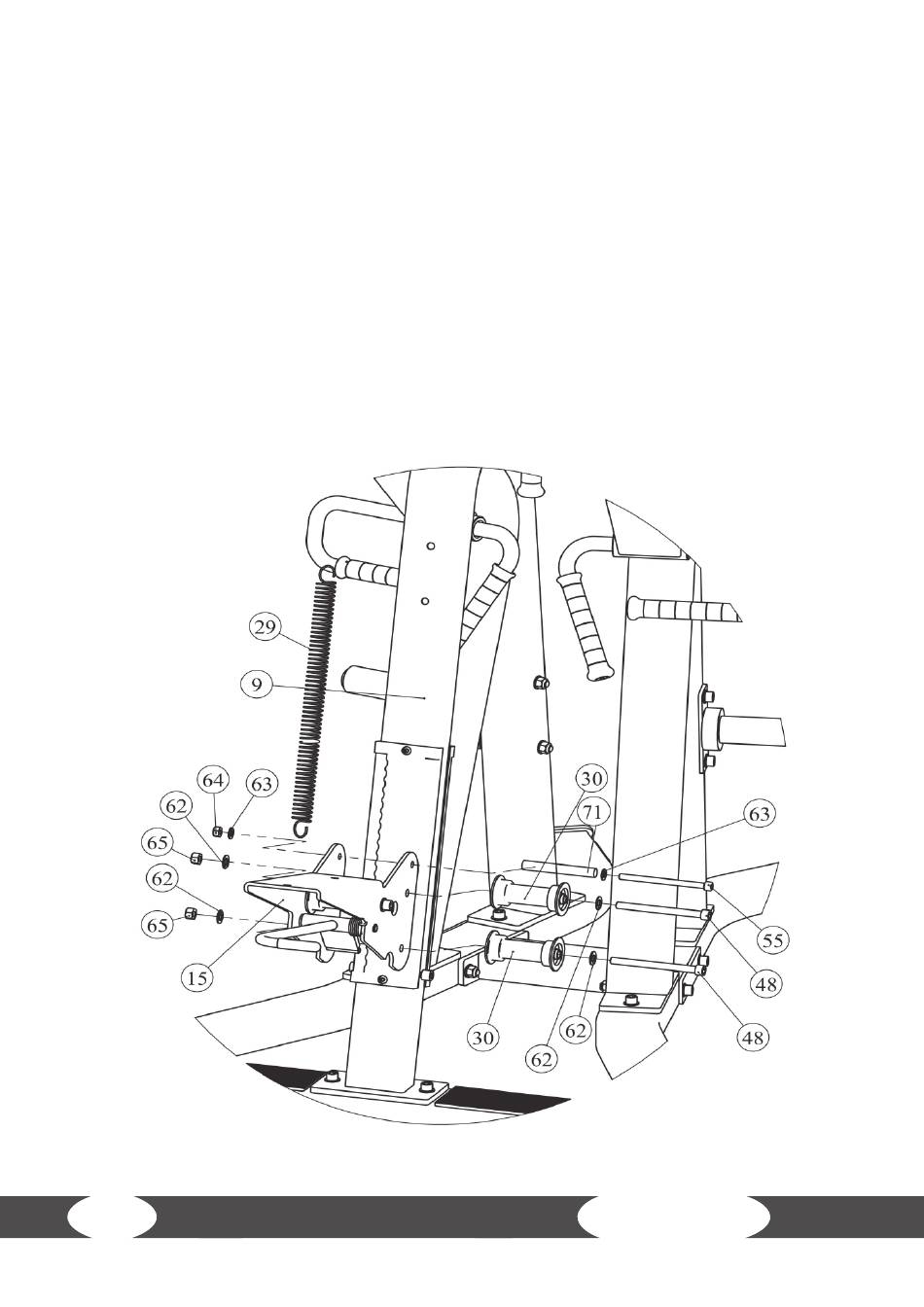

1. Attach the seat frame (15) to the middle standing frame (9) with two idler wheels (30), two
screws (48), four fl at washers (62) and two lock nuts (65).
2. Slide the supporting sleeve (71) between the two frame parts of the seat frame (15).
3. Attach the supporting sleeve (71) to the seat frame (15) with one screw (55), two fl at washers
(63) and one lock nut (64).
⚠ CAUTION
Carefully hold the pull spring (29) at the hooks.
4. Hook the pull spring (29) onto the supporting sleeve (71) and the middle standing frame (9).
