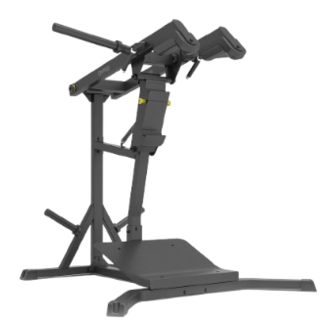

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 90 Min. 116 kg L 149 | W 145 | H 155 FSTFIFP1707.01.01 Art. No. TF-IFP1707 Taurus Leverage Squat/Calf IFP...
- Page 2 Leverage Squat/Calf...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Leverage Squat/Calf...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging) approx.: 125.5 kg Article weight (net, excl. packaging) approx.: 115.5 kg Packaging dimensions (L x W x H) approx.: 148 cm x 117 cm x 34 cm Set-up dimensions (L x W x H) approx.: 149 cm x 144.5 cm x 155 cm Maximum user weight: 150 kg... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 12 Hardware Manual Pack Item No. Description Quantity Rear Bottom Frame ASSY Front Frame ASSY Foot Frame ASSY Support Frame ASSY Adjustable Frame ASSY Shoulder Pad Frame ASSY Long Barbell Bar ASSY Foot Plate Shaft Ø25*169*M10 Shaft *25*379*M10 Shoulder Pad Connecting Frame Spring Ø31.5*Ø2.5*165 Hardware Pack Manual...
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 14 Step 1: Assembly of the Main Frame Parts NOTICE Do not tighten the bolts and nuts. Leave room for adjustment. Attach the front frame (2) to the connecting frame (12) with one bolt (25) [upper hole], two bolts (23) [lower holes], six fl at washers (28) and three lock nuts (30). Attach the foot frame (3) to the connecting frame (12) with two bolts (26), two spring washers (29) and two fl at washers (28).
- Page 15 Step 2: Assembly of the Adjustable Frame, Shoulder Pad Frame and Long Barbell Bars NOTICE If the shafts and barbell bars do not slide on or through easily, you might have to loosen some of the pre-assembled set screws. Attach the adjustable frame (5) to the support frame (4) with one shaft (9), two spacers (15), two spring washers (29) and two bolts (26).
- Page 16 Step 3: Assembly of the Foot Plate and Shoulder Pads NOTICE Before attaching the foot plate, make sure the bolt connections underneath are fully tightened as you might not be able to tighten them afterwards. Attach the foot plate (8) to the foot frame (3) with two screws (20) and two screws (21). Attach two shoulder pads (11) to the shoulder pad frame (6) with one bolt (26), two bolts (24) and three fl at washers (28) each.
- Page 17 Step 4: Adjustment and Exercise Instructions, Part 1 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the fl oor. Store unused weight plates on a weight rack or respective storage horns. To load the weight horn, carefully grab one weight plate at a time with both hands.
- Page 18 Step 4: Adjustment and Exercise Instructions, Part 2 ATTENTION The weight horns are compatible with 50mm weight plates with a maximum external diameter of 450 mm. Weight plates and weight collars are not included in the scope of delivery. Do not load more than 175 kg on each weight horn (training). Do not load more than 100 kg on each weight horn (storage).
-
Page 19: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 20: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Replace damaged or worn components immediately. -
Page 21: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Cushions... -
Page 22: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 23: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / multi gym Model Name: Leverage Squat/Calf IFP Article Number: TF-IFP1707... -
Page 24: Parts List
Parts List Overall Item No. Part no. Description Qty. IFP170701ASSY Rear Bottom Frame ASSY IFP170702ASSY Front Frame ASSY IFP170703ASSY Foot Frame ASSY IFP170704ASSY Support Frame ASSY IFP170705ASSY Adjustable Frame ASSY IFP170706ASSY Shoulder Pad Frame ASSY IFP170707ASSY Long Barbell Bar ASSY IFP17071000 Foot Plate IFP17071100... - Page 25 Rear Bottom Frame ASSY (1) Grade No. Part no. Description Qty. IFP17070100 Rear Bottom Frame IFP12013300 Ground Plug DC135K34000 Adjustable Height Rubber GB17880.5M6*16.5DS17 Rivet Nut M6 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Front Frame ASSY (2) Grade No. Part no. Description Qty.
- Page 26 Adjustable Frame ASSY (5) Grade No. Part no. Description Qty. IFP17070500 Adjustable Frame CWRVL0052100P116C Adjustable Handle GB77M8*6DHS2 Socket Set Screw M8*6 Shoulder Pad Frame ASSY (6) Grade No. Part no. Description Qty. IFP17070600 Shoulder Pad Frame IFP17070800 Stop Collar IFP17070900 Shaft of limit Φ25*296*M10 V39600 Aluminum Grip Cap Φ25.4...
-
Page 27: Exploded Drawing
Exploded Drawing... - Page 28 Front Frame ASSY (2) Rear Bottom Frame ASSY (1) 2-4 2-3 2-5 Support Frame ASSY (4) Foot Frame ASSY (3) Leverage Squat/Calf...
- Page 29 Adjustable Frame ASSY (5) Long Barbell Bar ASSY (7) Shoulder Pad Frame ASSY (6) Shoulder Pad Frame ASSY (6) 6-11 6-11 6-10 6-11 6-11 6-12 6-10...
-
Page 30: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 31 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
