Step 1:

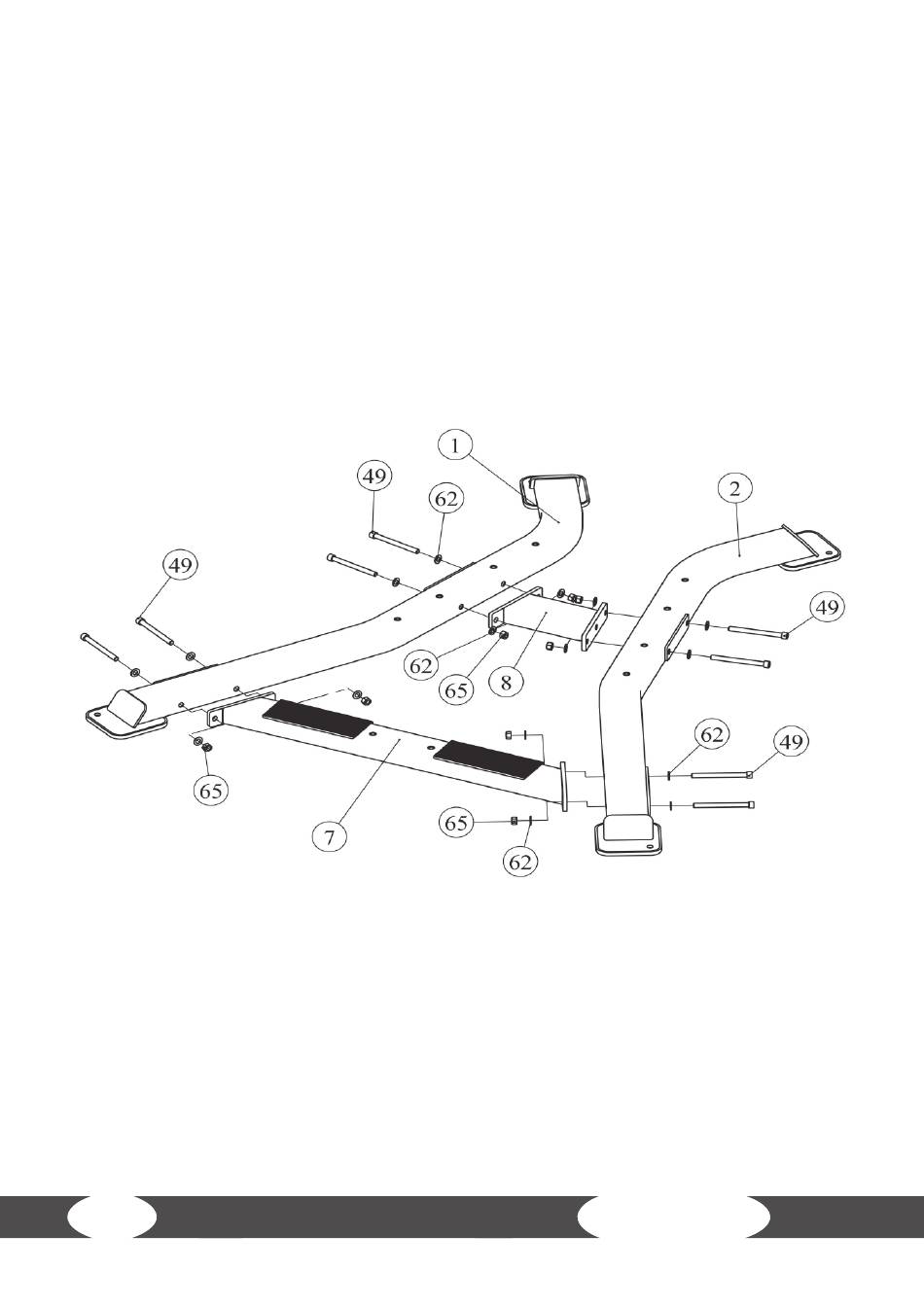

Assembly of the Bottom Frames and Cross Frames
NOTICE
Do not tighten the screws and nuts completely yet.
Attach the long cross frame (7) and the short cross frame (8) to the left and right bottom frames (1 &
2) with a total of eight screws (49), 16 fl at washers (62) and eight lock nuts (65).
14
Low Row
