Assembly and Operating Instructions
max. 150 kg
~ 120 Min.
168 kg
L 176 | W 145 | H 165
TFSL7004.01.01
Art. No. TF-SL7004

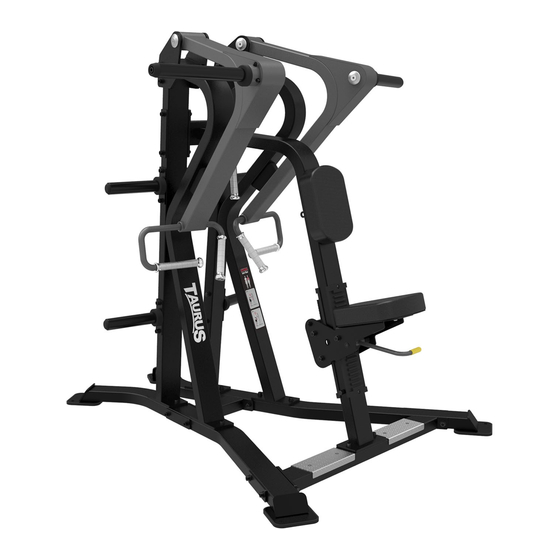

Taurus Iso
TF-
Low Row Sterling

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Iso Low Row Sterling and is the answer not in the manual?

Questions and answers

Related Manuals for Taurus Iso Low Row Sterling

Summary of Contents for Taurus Iso Low Row Sterling

  • Page 1 Assembly and Operating Instructions max. 150 kg ~ 120 Min. 168 kg L 176 | W 145 | H 165 TFSL7004.01.01 Art. No. TF-SL7004 Taurus Iso Low Row Sterling...
  • Page 2 Low Row...

  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List...
  • Page 4 Low Row...
  • Page 5 Taurus is a well-known and experienced brand for equipping professional rooms for fi tness studios and business customers. The focus of Taurus fi tness equipment is on what matters most in sports: maximum performance! Therefore, the devices are developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.

  • Page 7: General Information

    GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 201.5 cm x 72.5 cm x 32.5 cm 122 kg Box 2: 108.5 cm x 76.5 cm x 43.5 cm 73.6 kg Set-up dimensions (L x W x H) approx.: 176 cm x 145 cm x 165 cm...

  • Page 8: Personal Safety

    Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.

  • Page 9: Set-Up Place

    Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.

  • Page 10: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 11 Content of Box 1 Part no. Description Qty. Left Bottom Frame Right Bottom Frame Upright Frame Weight Horn Assembly Middle Standing Frame Pivot Plate 1 Pivot Plate 2...
  • Page 12 Content of Box 2 Manual Part no. Description Qty. Left Arm Frame Right Arm Frame Long Cross Frame Hardware Short Cross Frame pack Seat Frame Chest Pad Seat Pad Pivot Shaft Pull Spring Idler Wheel Manual Hardware Pack Low Row...

  • Page 13: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given.  NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so.
  • Page 14 Step 1: Assembly of the Bottom Frames and Cross Frames  NOTICE Do not tighten the screws and nuts completely yet. Attach the long cross frame (7) and the short cross frame (8) to the left and right bottom frames (1 & 2) with a total of eight screws (49), 16 fl at washers (62) and eight lock nuts (65).
  • Page 15 Step 2: Assembly of the Upright Frames and Middle Standing Frame  NOTICE Do not tighten the screws and nuts completely yet. Attach one upright frame (3) to the left bottom frame (1) with four screws (52) and four fl at washers (62).
  • Page 16 Step 3: Assembly of the Arm Frames Slide one pivot shaft (21) through the right arm frame (6). Attach two baffl e rings (83), one pivot plate 1 (13) and one pivot plate 2 (14) to the right arm frame (6) with two domed aluminium caps (23) and two screws (54). Attach the right arm frame (6) to the right sided upright frame (3) with three screws (47), six fl at washers (62) and three lock nuts (65).
  • Page 17 Step 4: Assembly of the Weight Horns and Weight Plate Storages Attach two weight plate storages (11) to the right upright frame (3) with a total of four screws (50), eight fl at washers (62) and four lock nuts (65). ...
  • Page 18 Step 5: Assembly of the Seat Frame  NOTICE Do not tighten the screws and nuts completely yet. Make sure that the seat frame (15) can be moved up and down smoothly. If needed, slightly loosen the screws and nuts. Attach the seat frame (15) to the middle standing frame (9) with two idler wheels (30), two screws (48), four fl at washers (62) and two lock nuts (65).
  • Page 19 Pull spring Screw Flat washer Flat washer Supporting sleeve Lock nut Seat frame...
  • Page 20 Step 6: Assembly of the Pads Attach the seat pad (17) to the seat frame (16) with two screws (57) and two fl at washers (63). Attach the chest pad (16) to the middle standing frame (9) with two screws (56) and two fl at washers (63).
  • Page 21 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the fl oor. Store unused weight plates on a weight rack or on the integrated storage options. ATTENTION The weight horn is compatible with 50 mm weight plates with a maximum external diameter of 450 mm.
  • Page 22 Seat Adjustment Seat Push the adjustable handle. Move the seat to the desired position. Release the handle. Adjustable handle Exercise Instructions Select an appropriate weight. Adjust the seat to the desired position. Sit on the seat with your chest resting against the chest pad. Grasp the handles.

  • Page 23: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location.

  • Page 24: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Replace damaged or worn components immediately.

  • Page 25: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Cushions...

  • Page 26: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.

  • Page 27: Ordering Spare Parts

    The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / multi gym Model Name: Iso Low Row Sterling Article Number: TF-SL7004...

  • Page 28: Parts List

    Parts List Supplier parts no. Name Specifi cation Qty. SL70040100 Left Bottom Frame SL70040200 Right Bottom Frame SL70040300 (left/right) Upright Frame SL70041000V1 Weight Horn Assembly SL70040500 Left Arm Frame SL70040600 Right Arm Frame SL70040700V1 Long Cross Frame SL70040800 Short Cross Frame SL70040900 Middle Standing Frame SL70012800...
  • Page 29 SL70012600 Wring Spring φ30*φ3*30 SL70012700 Shaft For Adjustable φ12*135.1 Handle PL380800 Large Rubber Bumper 120*140*52 SL70013200 Plastic Sleeve φ18*φ10*19 HF985A1500 Weight Horn Rubber φ76*φ42*25 Donut IT90102100 Aluminium Cap Φ25 φ43*φ10.5*26 IT90102200 Aluminium Ring Φ25 φ40*φ26.8*18 RF-6012500 End Plug φ41.3*φ34 CG50001700 Rubber Grip DTφ19*φ14*70 CWRVL0051200...
  • Page 30 PNLM10*75DHS2 Button Head Cap Screw M10*75 M10*75 PNLM10*30DHS2 Button Head Cap Screw M10*30 M10*30 CNLM10*25DS20NL Flat Head Cap Screw M10*25(8.8 degree) M10*25 PNLM8*65DHS2 Button Head Cap Screw M8*65 M8*65 YZGB7710-32*3.2N19 Socket Set Screw 10- 10-32UNF*3.2 32*3.2 DQ12DHS2A Flat Washer Φ13*Φ24*1.5 φ13*φ24*1.5 GB9510DHS2 Flat Washer Φ11*Φ20*2...

  • Page 31: Exploded Drawing

    Exploded Drawing...

  • Page 32: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 33 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.

  • Page 34: Contact
