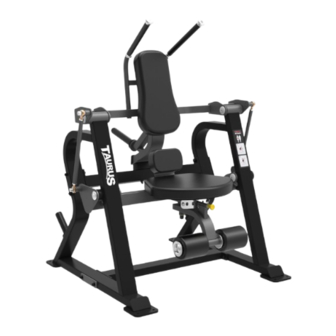

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 90 Min. 132 kg L 162 | W 127 | H 164 TfSL7036.01.01 Art. No. TF-SL7036 Taurus Iso Abdominal Sterling...
- Page 2 Abdominal Sterling...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Abdominal Sterling...
- Page 5 Taurus is a well-known and experienced brand for equipping professional rooms for fi tness studios and business customers. The focus of Taurus fi tness equipment is on what matters most in sports: maximum performance! Therefore, the devices are developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 127.5 cm x 116.5 cm x 33 cm 75.8 kg Box 2: 133.5 cm x 76.5 cm x 45 cm 75 kg Set-up dimensions (L x W x H) approx.: 162 cm x 127 cm x 164 cm... -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 Content of Box 1 Part no. Description Qty. Left Frame ASSY Right Frame ASSY Base Crossmember Rear Crossmember...
- Page 12 Content of Box 2 Part no. Description Qty. Lower Pivoting ASSY Manual Foam Pad Mount ASSY Upper Pivoting ASSY Back Pad Mount ASSY Connecting Rod ASSY Foam Pad Hip Pad Hardware Seat Pad Pack Back Pad Pivot Shaft Manual Hardware Pack Abdominal Sterling...
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 14 Step 1: Assembly of the Left and Right Frames and Crossmembers NOTICE Do not tighten the bolts and nuts completely yet. Attach the base crossmember (3) to the left and right frames (1 & 2) with a total of four bolts (20), eight fl at washers (27) and four lock nuts (31).
- Page 15 Step 2: Assembly of th Lower and Upper Pivoting NOTICE Do not tighten the bolts and nuts completely yet. Attach the lower pivoting (5) to the left and right frames (1 & 2) with two pivot shafts (14), four aluminium end caps (16) and four screws (24).
- Page 16 Step 3: Assembly of the Connecting Rods Attach two connecting rods (9) to the lower and upper pivoting (5 & 7) with a total of four screws (19) and four spring washers (26). Tighten the screws with the appropriate tool. Tighten the bolts and nuts from the previous steps with the appropriate tools.
- Page 17 Step 4: Assembly of the Foam Pad Mount and Back Pad Mount ATTENTION Make sure that the foam pad mount (6) can turn smoothly. If needed, adjust the hex nut (29) and lock nut (30). Attach the foam pad mount (6) to the lower pivoting (5) with one fl at washer (18), one hex nut (29) and one lock nut (30).
- Page 18 Step 5: Assembly of the Pads Attach two foam pads (10) to the foam pad mount (6) with two end caps (15), one aluminium end cap (17) and one screw (25) each. Attach the seat pad (12) to the lower pivoting (5) with four screws (23) and four fl at washers (28). Attach the hip pad (11) to the lower pivoting (5) with two screws (23) and two fl at washers (28).
- Page 19 Step 6: Anchoring the Equipment to the Floor (OPTIONAL) To prevent movement and increase the stability, the equipment can be anchored to the fl oor. This step is not mandatory. Required tools, bolts and dowels are not included in the scope of delivery. ATTENTION Not every type of fl ooring is suitable for anchoring.
- Page 20 Load and Unload Weight Plates ATTENTION Make sure to always use some sort of weight collar when exercising with external weights. Store unused weight plates on a weight rack or on the integrated storage option. NOTICE Use weight plates with a 50 mm hole and an external diameter of not larger than 450 mm. Weight plates and weight collars are not included in the scope of delivery.
- Page 21 Seat Pad Adjustment The seat can be adjusted in diff erent positions depending on if you want to train your straight or lateral abdominal muscles. Pull the spring pin and adjust the seat in the desired position. Release the spring pin and make sure it fully engages in one of the adjustment holes. Handles Seat Spring pin...
-
Page 22: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 23: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Replace damaged or worn components immediately. -
Page 24: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Cushions... -
Page 25: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 26: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / multi gym Model Name: Iso Abdominal Sterling Article Number: TF-SL7036... -
Page 27: Parts List
Parts List Overall Grade no. Supplier parts no. Name Qty. SL7036B01ASSY Left Frame ASSY SL7036B02ASSY Right Frame ASSY SL70360300 Base Crossmember SL7036B04ASSY Rear Crossmember ASSY SL7036B05ASSY Lower Pivoting ASSY SL7036B06ASSY Foam Pad Mount ASSY SL7036B07ASSY Upper Pivoting ASSY SL703608ASSY Back Pad Mount ASSY ABS100409ASSY Connecting Rod ASSY SL70021900V1... - Page 28 NM12DHS2 Nylon Lock Nut M12 NM10DHS2 Nylon Lock Nut M10 NBS12DHS Hex Key S=12 NBS10DHS Hex Key S=10 NBS8DHS Hex Key S=8 NBS6DHS Hex Key S=6 Left Frame ASSY (1) Grade no. Supplier parts no. Name Qty. SL7036B0100 Left Frame GB2 766006-2ZC3 Deep Groove Ball Bearing Φ30*Φ55*13 CWRVL00S 1200...
- Page 29 Lower Pivoting ASSY (5) Grade no. Supplier parts no. Name Qty. SL7036B0500 Lower Pivoting SL7036B1800 Are Plate PS10007100 Bumper C001PL3800 Spacer Bush IN-S10111200 Spacer Φ17*10.5 GB70M8*25DS20 Socket Head Cap Screw M8*25 PNLM6*15DHS20 Button Head Cap Screw M 16*15 CNLM6* 15DS20NL Flat Head Cap Screw M16*15 GB958DS2 Flat Washer Φ9*Φ16*1.6...
- Page 30 Back Pad Mount ASSY (8) Grade no. Supplier parts no. Name Qty. SL70360800 Back Pad Mount VLP8000 Pipe Plug 50*100 HF985A1500 Rubber Bumper TPS3901500 Lang Weight Horn Sleeve SL70012000 Weight Horn PlasticCap DQ12DHS2A Flat Washer Φ 13* Φ 24*1.5 GB70Ml 2*35*35DHS20NL Socket Head Cap Screw M12*35 Connecting Rod ASSY (9) Grade no.
-
Page 31: Exploded Drawing
Exploded Drawing Overall... - Page 32 Left Frame ASSY (1) Right Frame ASSY (2) Abdominal Sterling...
- Page 33 Rear Crossmember ASSY (4) Lower Pivoting ASSY (5) 5.10 Foam Pad Mount ASSY (6)
- Page 34 Upper Pivoting ASSY (7) Back Pad Mount ASSY (8) Connecting Rod ASSY (9) Abdominal Sterling...
-
Page 35: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 36 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
