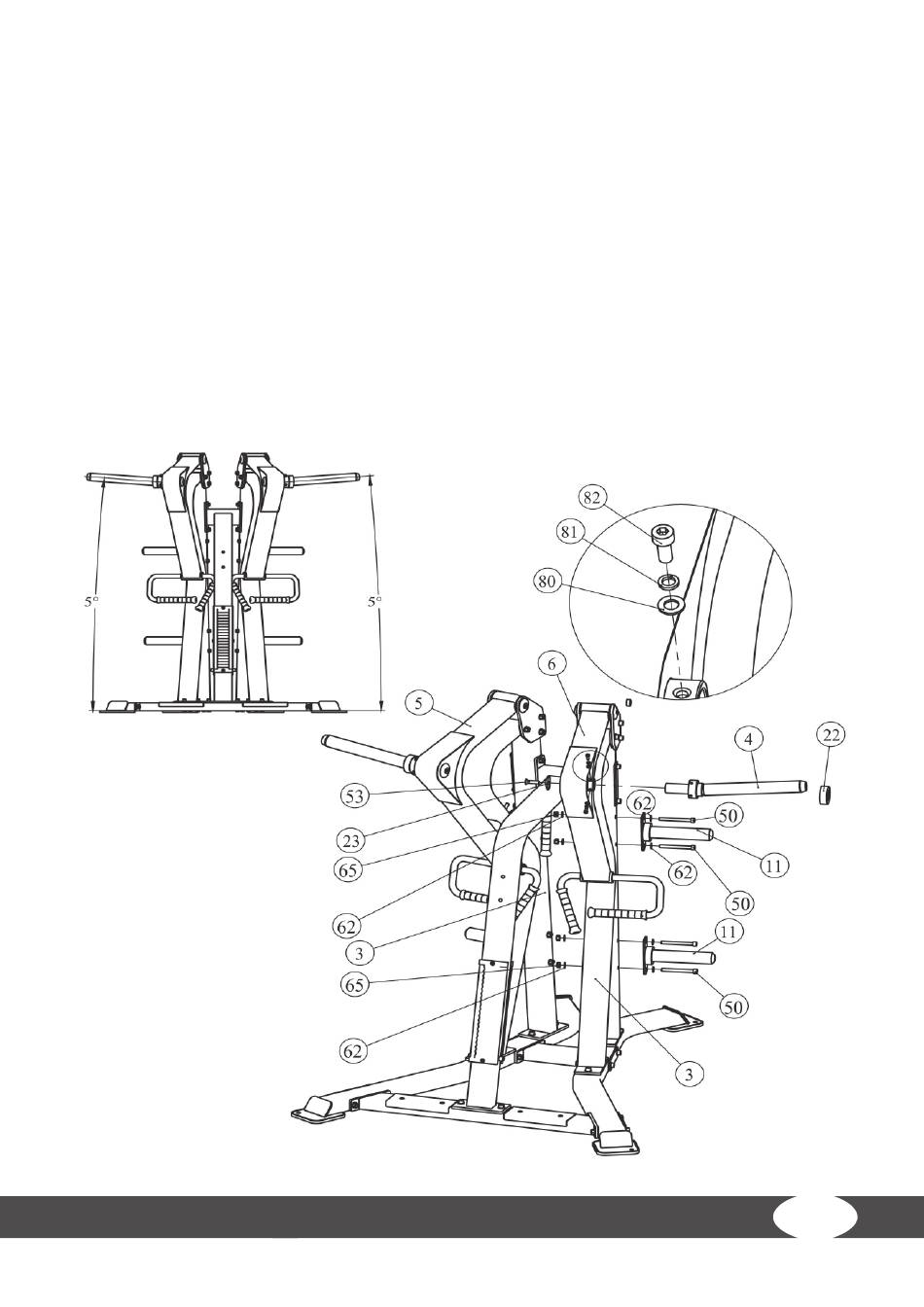

Step 4: Assembly of the Weight Horns and Weight Plate Storages
1. Attach two weight plate storages (11) to the right upright frame (3) with a total of four screws
(50), eight fl at washers (62) and four lock nuts (65).

NOTICE
The weight horns should be installed at a 5-degree-angle like shown.
2. Attach one weight horn (4) to the right arm frame (6) with one screw (53) and one domed
aluminium cap (23).
3. Secure the weight horn (4) with two screws (82), two spring washers (81) and two fl at washers
(80).
4. Slide one rubber bumper (22) onto the weight horn (4).
5. Repeat the steps 1 to 4 on the left side.
6. Tighten the screws and nuts with the appropriate tools.
