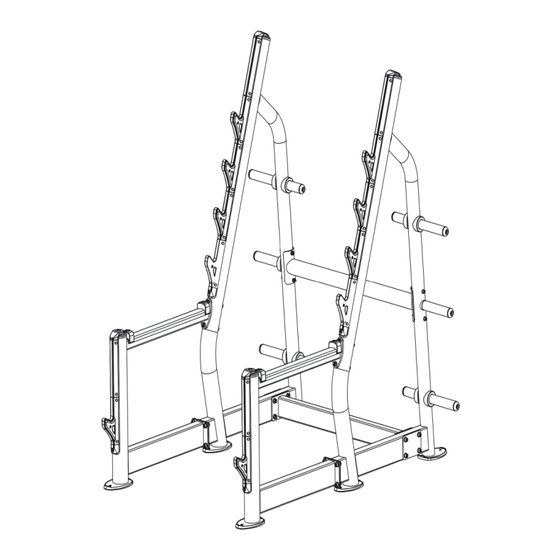

- Page 1 Assembly and Operating Instructions max. 420 kg ~ 45 Min. 132 kg L 186 | W 165 | H 201 FSUKSEBR7014.01.01 SKU: SEBR7014 Taurus Elite Squat Rack TF TF-...
- Page 2 Squat Rack...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 6 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging): Nr.1 96 kg Nr.2 50 kg Article weight (net, without packaging): 128 kg Packaging dimensions (LxWxH) approx.: No.1 206 cm x 105 cm x 25 cm No.2 103 cm x 81.5 cm x 25 cm Set-up dimensions (LxWxH) approx.: 185.5cm x 164.5 cm x 201 cm Maximum load weight:... -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 14 Step 2: Assembly of Front Stands Attach the upper side of the right front stand (4) to the foot frame (1) by using two screws (25), two spring washers (42) and two washers (31). Attach the lower side of the right front stand (4) to the foot frame (1) by using four screws (22), eight washers (31) and four lock nuts...
- Page 15 Step 3: Assembly of Barbell Pipes Insert four protecting jackets (8) onto the four long barbell pipes (5). Assemble each of the four long barbell pipes (5) to the foot frames (1) by using one barbell bushing (9) and one screw (30) each. Assemble four protecting jackets (11) to the foot frames (1) by using one screw (30), one barbell bushing (9), one pipe plug (10), one washer (34), one spring washer (36) and one screw (28).
- Page 16 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the fl oor. Store unused weight plates on a weight rack or respective storage horns. Squat Rack...
-
Page 17: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 18: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Legend: C = clean;... -
Page 19: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 20: Ordering Spare Parts
The serial number of your equipment is unique. It’s located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / multi gym Model Name: Elite Squat Rack SKU: SEBR7014... -
Page 21: Parts List
Parts List Name Specifi cation Qty. Foot frame Lower joint frame Upper joint frame Front stand Long barbell pipe Short barbell pipe Long protecting jacket Protecting jacket Barbell bushing Pipe plug Protecting jacket Plastic stopper Rubber mat Upper protecting jacket Lower protecting jacket Left hook jacket Middle hook jacket... - Page 22 Plain washer Φ16*Φ8.4*1.6 Extra large washer Φ22*Φ6.6*2 Spring washer Spring washer Nylon insert lock nut Nylon insert lock nut Reed nut M6*33.8*15 Flat head rivet nut M8*18 Plate Spring washer Squat Rack...
-
Page 23: Exploded Drawing
Exploded Drawing... -
Page 24: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 25 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 26: Contact
CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER CARE �� �� �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or +44 141 876 3972 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk customercare@fi tshop.co.uk �� technik@fi tshop.de ��... - Page 27 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fi tshop.co.uk/ home fi tness equipment with currently 70 stores www.fi tshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fi tness equipment. Fitshop UK is part of the Fitshop Group.
- Page 28 Notes Squat Rack...
- Page 29 Notes...
- Page 30 Notes Squat Rack...
- Page 32 Taurus Elite Squat Rack...
