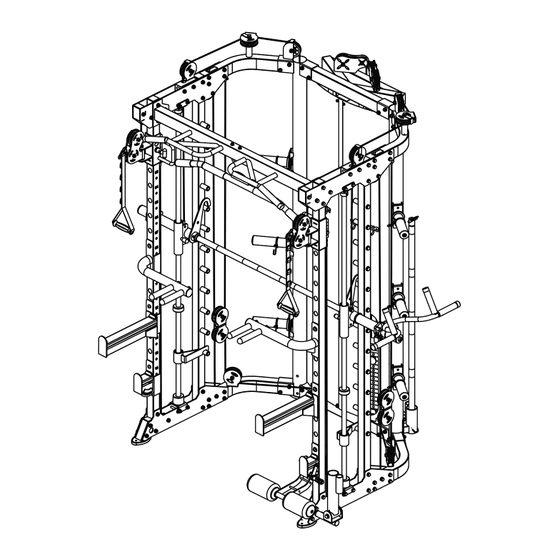

- Page 1 Assembly and Operating Instructions ~ 210 Min. 400 kg L 148 | W 201 | H 224 FSTFMS35.01.01 Art. No. TF-MS35 TF TF- Taurus MS35 Pro...
- Page 2 MS35 Pro...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Optional Accessories 2.4.1 Scope of Delivery - Leg Press 2.4.2 Assembly - Leg Press 2.4.3 Scope of Delivery - Jammer Arm 2.4.4 Assembly - Jammer Arm STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE... - Page 4 MS35 Pro...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). MS35 Pro...
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...
-
Page 8: General Information
Nylon Quantity of cables: Cable length: 274.5 cm, 409.5 cm, 717.7 cm Cable thickness: 2.5 cm Pulley diameter: 9.5 cm Weight stack: Quantity: Total weight: 90 kg (per weight stack) Weight plates: 20 (per weight stack) Use class: MS35 Pro... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. For Class S equipment, the exercise equipment may only be used in areas where access, supervision and control are specifically regulated by the owner. MS35 Pro... -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
In the event of complaints, the contractual partner must be contacted directly. ⚠ CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. MS35 Pro... - Page 14 MS35 Pro...
- Page 16 MS35 Pro...
- Page 18 MS35 Pro...
- Page 20 MS35 Pro...
- Page 22 MS35 Pro...
- Page 24 MS35 Pro...
-
Page 25: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 26 MS35 Pro...
- Page 27 Step 2: Slide the left sliding tube (21) onto the left tube (18). Slide the right sliding tube (20) onto the right tube (17). Mount the upright tubes (16) to the bending tubes (4 & 5) together with the four lower plates (19) using a total of seven hexagon bolts (9), 14 washers (11) and seven lock nuts (10).
- Page 28 MS35 Pro...
- Page 29 Step 3: Mount the lower base (25) on the left and right to the lower plates (19) using two hexagon bolts (33), four washers (11) and two lock nuts (10) each. Mount the upper base (26) on the left and right to the upper plates (13) using two hexagon bolts (33), four washers (11) and two lock nuts (10) each.
- Page 30 MS35 Pro...
- Page 31 Step 4: Insert the guide rods (45) into the slots of the connection tube (1). NOTICE The use of the weight support tubes is optional. If you only want to use 60 kg of weight, use the weight support tubes (92) and only 13 weight plates per weight block. Place a rubber pad (44) on each of the guide rods (45).
- Page 32 MS35 Pro...
- Page 33 Step 5: Connect the cable (49) to the weight (55) and slide it into the upright frame (2). Guide the cable (49) along the illustrated points and mount the pulleys (50) to the respective pulley brackets. Mount the first pulley (5) with the pulley plate (51) to the brackt with a hexagon bolt (53), two washers (11) and a lock nut (10).
- Page 34 MS35 Pro...
- Page 35 Step 6: Fix the cable (56) to the upper plate (13) with a hexagon bolt (54), two washers (11) and a lock nut (10). Guide the cable (56) along the illustrated points and mount the pulleys (50) to the respective pulley brackets.
- Page 36 MS35 Pro...
- Page 37 Step 7: Screw the threaded end of the cable (60) into the socket on the weight block and guide the cable (6) upwards trough the upper connection tube. Mount a pulley (50) and a small pulley (59) to the bracket on the upper connection tube using a hexagon bolt (52), two washers (11) and a lock nut (10) each.
- Page 38 MS35 Pro...
- Page 39 Step 8: Mount the left and right shield (63 & 64) together with the connection strap (62) to the connection tubes (1 & 6) using a total of four hexgon bolts (65) and four washers (66). Mount the left and right shield (63 & 64) to the left and right upright frame (2 & 3) using a total of six hexagon bolts (65) and six washers (66).
- Page 40 MS35 Pro...
- Page 41 Step 9: Mount the core trainer (72) together with two sleeves (73) to the lower plate (19) using a hexagon bolt (54) and a big washer (75). Mount the barbell rod cup (74) to the right upright frame (3) using two hexagon bolts (76), four washers (11) and two lock nuts (10).
- Page 42 MS35 Pro...
- Page 43 Step 10: Attach the leg curl tube (83) to the short barbell rod holder (81) with the pin (88). Attach the accessories to the multi gym. This included the following parts: dip bar left and right (77 & 78) barbell rod holder left and right (79 & 80) shport barbell rod holder left and right (81 &...
- Page 44 MS35 Pro...
-
Page 45: Optional Accessories
Optional Accessories 2.4.1 Scope of Delivery - Leg Press The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. -
Page 46: Scope Of Delivery - Jammer Arm
In the event of complaints, the contractual partner must be contacted directly. ⚠ CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. φ12 4PCS φ12 4PCS M12*25 6PCS φ10 2PCS M10*20 2PCS 6MM 1PCS 8MM 2PCS MS35 Pro... - Page 47 PART NAME QTY. push arm push arm fix frame handle push arm connection shaft T shape pin-black butterfly clip...
-
Page 48: Assembly - Jammer Arm
Mount the push arm fix frame (2) together with a connection shaft (4) to the push arm (1) using two screws (5), two spring gaskets (7) and two wahers (6). Tighten the screws. Repeat the steps for the other arm. MS35 Pro JAMMER ARM... - Page 49 Step 2: Attach the jammer arm with the pin (11) to the tubes of the multi gym, see illustration.
-
Page 50: Storage And Transport
࣑ ATTENTION In addition to the instructions and recommendations for maintenance and care given here, additional service and/or repair work may be necessary; this must only be carried out by authorised service technicians. MS35 Pro... -
Page 51: Faults And Fault Diagnosis
Faults and Fault Diagnosis The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. -
Page 52: Disposal
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. MS35 Pro... -
Page 53: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 54: Ordering Spare Parts
It’s located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Taurus MS35 Pro Article Number: TF-MS35 MS35 Pro... -
Page 55: Parts List - Multi Gym
Parts List - Multi Gym Name Specification Qty. connection tube upright frame left upright frame right bending tube left bending tube right upper connection tube upper bending tube right upper bending tube left hexagon bolt M10*75 lock nut washer Φ10 chin up bar upper plate pulley frame tube right... - Page 56 M10*45 hexagon bolt M10*50 hexagon bolt M10*25 weight wire Φ5*4185mm "-" shaped pulley frame pulley spacer sleeve Φ20*10.5*L20.5 pulley Φ50 wire Φ5*7195mm barbell plate holder connection strap shield left shield right hexagon bolt M6*16 washer Φ6 MS35 Pro...
- Page 57 hook “+"slotted countersunk head bolt M4*12 lock nut hexagon bolt M8*20 washer Φ8 core trainer powder metallurgy sleeve Φ33.2*Φ 29*Φ20*18 barbell rod cup big washer Φ25*Φ10*2.0 hexagon bolt M10*95 dip bar left dip bar right barbell rod holder right barbell rod holder left barbell rod holder short left barbell rod holder short right leg curl tube...
-
Page 58: Exploded Drawing - Multi Gym
Exploded Drawing - Multi Gym MS35 Pro... -
Page 59: Parts List - Jammer Arm
Parts List - Jammer Arm Name Specification Qty. push arm push arm fix frame handle push arm connection shaft Φ25*56 hexagon socket bolt button head screws M12*25 washer Φ12 spring gasket Φ12 hexagon socket button head screws M10*20 washer Φ10 washer T shape pin -black Φ10*75... -
Page 60: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 61 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
