Installation

1. Remove the control port protector.

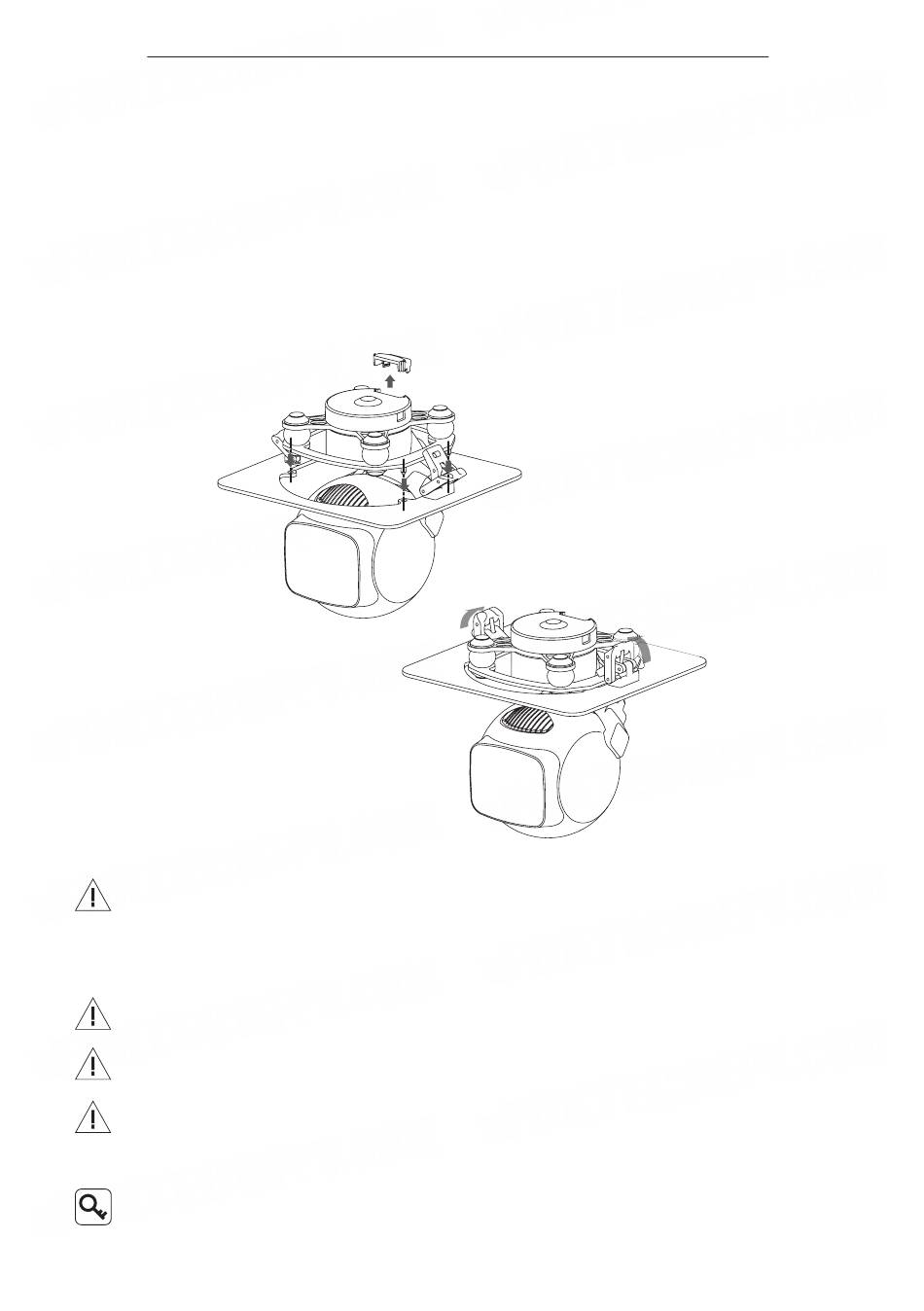

2. Align and insert the 4 pins into the locating holes of the mount platform.
Press down the lock catch to fix the gimbal. The gimbal can be also fixed
with screws through the holes on the damping platform.
3. Plug the gimbal control cable into the control port and install the port
protector back.
While upward mounted or mounted at carriers with large vibration or
impact, the gimbal should be fixed with screws nor the quick-release
locks.
Gently plug or unplug the cable. Avoid hardly pull the cable.
Avoid squash the cable while installing the port protector.
Ensure the microSD card slot cover is firmly in place to prevent dust or
moisture entering during usage or storage.
The MicroSD card should be configured as HDD-FAT32 mode.
