Activating/Deactivating Light Emission

Activating/Deactivating Light Emission
Before turning on the Tunable Laser Source, please read the Safety
Information on page 5.

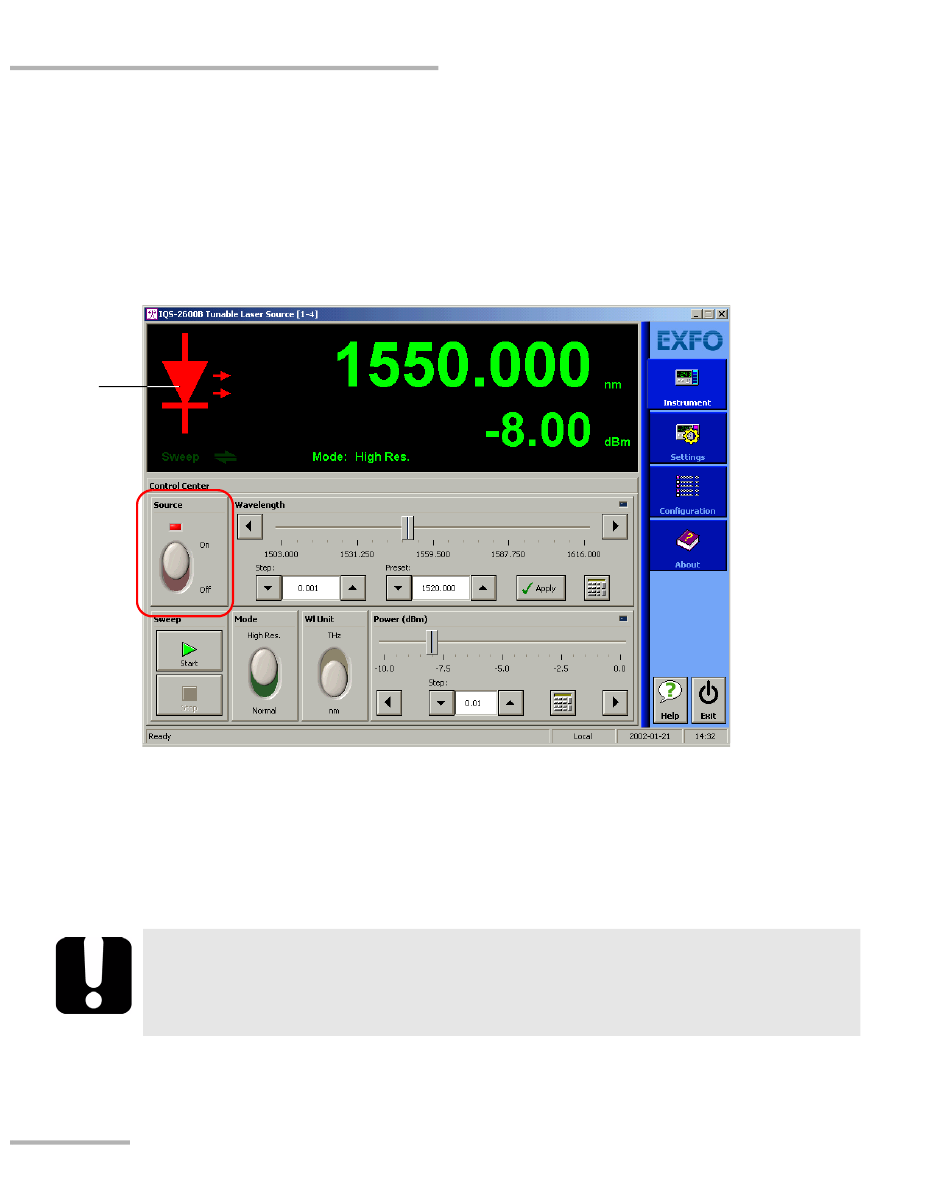

To activate or deactivate light emission, use the Source On/Off switch in
the Instrument function tab.
Status
indicator
When the source is active, the LED on the module front panel lights up and
the Status indicator blinks and then appears in red with two arrows
pointing to the right. Once the source is deactivated, the LED on the
module front panel will turn off, the Status indicator will blink, then appear
in dark red, and the arrows will disappear.
To obtain optimum stability, a laser source should be allowed to
warm up for 60 minutes.
