FUNCTION INTRODUCTION &
INSTRUCTIONS FOR USE
① MENU ：
Press the MENU button to enter the menu settings page. Menu interface contains
DMX settings, dimming curve, wireless settings, studio mode settings, frequency
settings, fan settings, language, and system settings.The menu interface contains
DMX settings, dimming curve, wireless settings, studio mode settings, frequency
settings, fan settings, language, and system settings.
Press the MENU button to enter the menu setting page → Rotate [Knob①] select
project → Press [Knob①] Enter the project settings interface → Press or rotate
[Knob①] set the parameters of the project → Press [BACK] Return to the previous
menu.

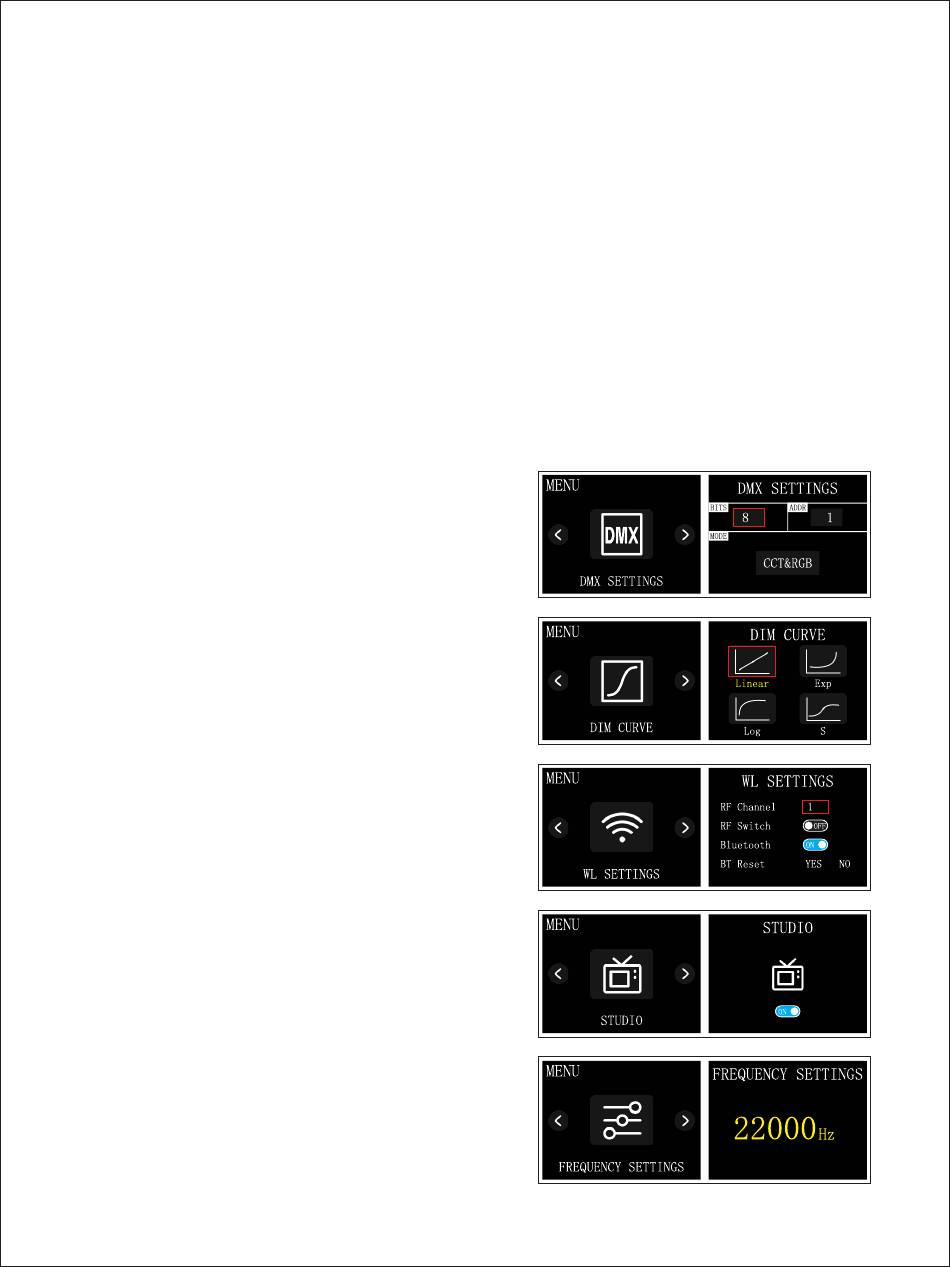

DMX SETTINGS
(Figure1)
parameter, [ADDRESS (001-512)] and
[PROFILES MODE (8bit/16bit)], and 14
built-in DMX models: 1.CCT&RGB, 2.CCT
&HSI, 3.CCT, 4.RGB, 5.HSI, 6.SOURCE,
7.GEL, 8.FX, 9.ZONE CCT&RGB, 10.ZONE
CCR&HSI, 11.ZONE CCT, 12.ZONE RGB,
13.ZONE HSI, 14.Ultimate.
DIM CURVE : Set DIM CURVE, [Linear,
(Figure2)
Log, Exponential, S curve].
BT SETTINGS
(Figure3)
bluetooth switch, BT Reset.
STUDIO Mode
(Figure4)
mode and non-studio mode.
Studio mode: turn on the light again after
power failure, and the light will be turned
on directly;
Non-studio mode: To restart the light after
power failure, you need to press the
ON/OFF button to turn it on.
FREQUENCY SETTINGS
Dimming Frequency, Frequency range:
18KHz-22KHz.
: SETTINGS DMX
: RF Channel Settings,
: Setting up studio
: SETTINGS
(Figure5)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
