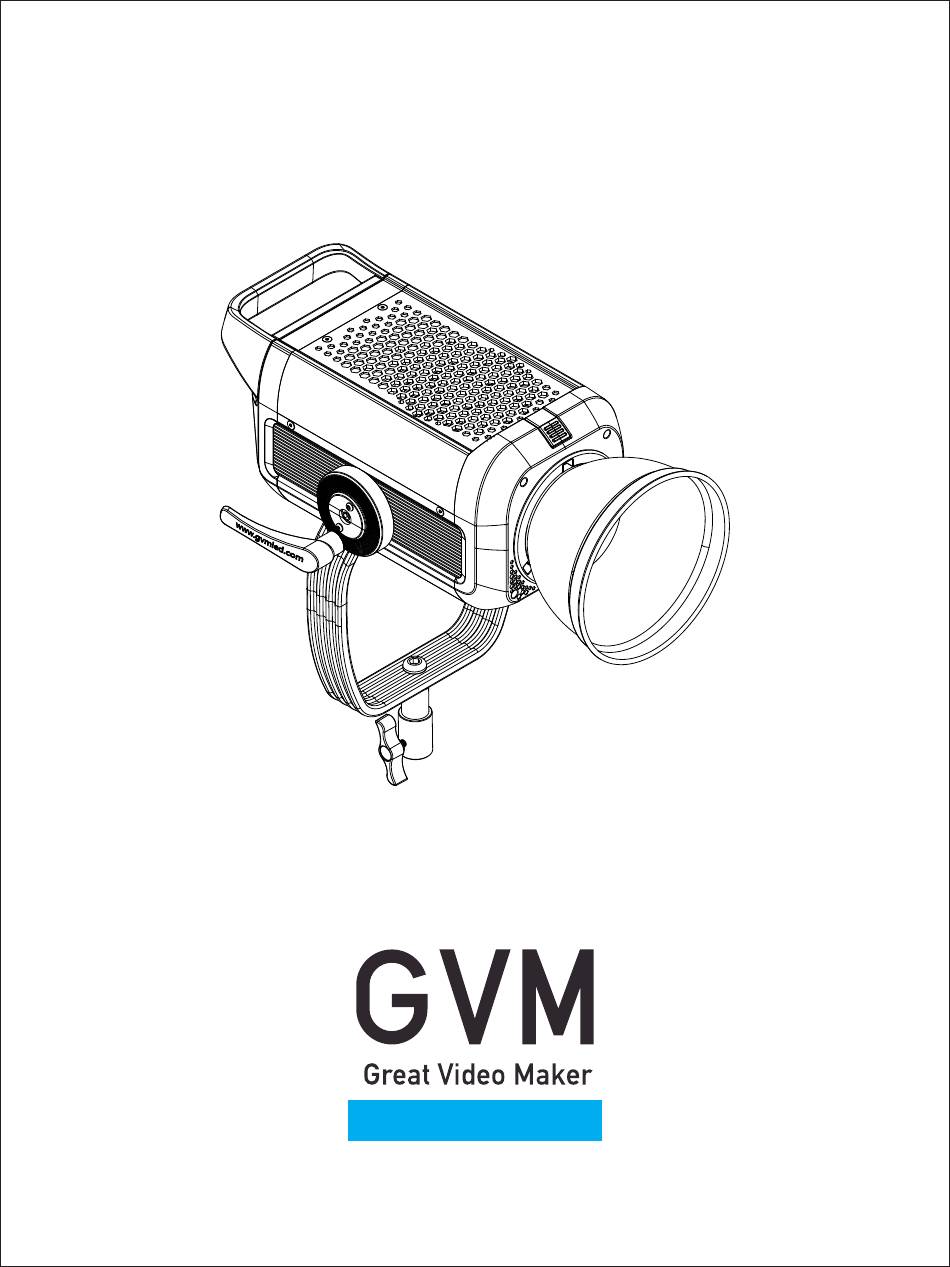

- Page 1 GVM-PRO-SD650B...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ---------------------------------------------- Page 1~2 Product introduction ---------------------------------------------------------- Page 3 Warning ------------------------------------------------------------------------ Page 3 Disclaimers -------------------------------------------------------------------- Page 4 Product parameter ------------------------------------------------------------ Page 4 Product structure diagram ---------------------------------------------------- Page 5 Installation method ------------------------------------------------------- Page 6~10 Description of product control keys ----------------------------------------- Page 11 Function introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is a professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. - Page 4 15.When cleaning the device, do not wipe it with a wet cloth. Use a dry and soft cloth to wipe off the dirt. 16.If an extension cord is required, it needs to have the necessary capacity to power the respective unit. Using an extension cord with a lower current capacity than the devices need may cause overheating.
-
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our “GVM-PRO-SD650B”. This product is specially designed for senior photographers. The product usage scenarios are suitable for live broadcast / outdoor / studio photography, etc., and can also be used for YouTube video shooting. -
Page 6: Disclaimers
3 ． Design and specifications are subject to change without notice. PRODUCT PARAMETER ◆ Brand : GVM ◆ Product Model : GVM-PRO-SD650B ◆ Product Name : Photography light ◆ Product Type : Photography fill light ◆ Features : Multiple light effect modes, high display index lamp beads ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Vents Control input Bowens mount lamp beads Vents Angle lock handle U-frame Fixture knob Light stand interface Light Return key Display screen Menu key Mode key Battery plate Cooldown key controller output Knob①: interface Brightness adjustment / selection confirmation DMX output interface... -
Page 8: Installation Method
INSTALLATION METHOD Loosen the light stand fixing knob, install the light to the light stand as shown below, then tighten the light stand fixing knob. Loosen the angle locking handle, adjust the angle of the spotlight, then tighten the angle locking handle. - Page 9 Insert the standard cover into the corresponding Bowens bayonet socket of the light, then turn it clockwise gently. To remove the cover on the light, pull it outward and rotate it counterclockwise. Install the controller fixing clip on the light stand as shown in the figure below.
- Page 10 Follow the steps shown in the figure below to install the controller on the controller fixing clip first.
- Page 11 As shown in the figure below, use the control wire to connect the light and the controller.
- Page 12 There are two power supply modes to choose from: ①Use the AC power cord for power supply. ② Use two V button batteries for power supply. (Batteries must be inserted into both battery slots to provide power, and the power is halved when using batteries.)
-
Page 13: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Display: Display current settings, modes and parameters. Mode key: light mode switch button. Menu key: press this key to enter the settings menu. Return key: press this key to return to the previous level menu. Cooling key: start a large air volume cooling until the temperature decreased to a touchable temperature. -
Page 14: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① MENU ： Figure 1 MENU DMX SETTINGS DMX SETTINGS (Figure 1): PROFILES ADDRESS Set the DMX parameters, [address (001-512)] 8bit and configure the mode [(8bit/16bit)]. 16bit DMX SETTINGS Figure 2 MENU DIM CURVE DIM CURVE (Figure 2): Set the dimming curve, [linear / logarithmic / Linear... - Page 15 Figure 7 MENU LANGUAGE LANGUAGE (Figure 7): Set the system language. ENGLISH 简体中文 LANGUAGE SYSTEM SETTINGS (Figure 8): Figure 8 MENU SYSTEM SETTINGS View system information and restore Contrl Ver 1.27 Lamp Ver 1.02 Factory Settings. UID: GPR0650B-0F6888410 Factory Reset SYSTEM SETTINGS ②...
-
Page 16: App Control
APP CONTROL APP download method (Scan the QR code on the back of the manual to download the APP) Figure 1 Android version : Official website QR code, Google Play, Huawei Store, etc. iOS version : App Store Register Account Register and sign in with your email address. -
Page 17: Use And Preservation
Equipment management ① After successfully adding your ② Click the device bar to enter the lighting device, your device will be device control. (Figure 4) displayed in the "My Devices" list; Figure 4 (Figure 3) Figure 3 USE AND PRESERVATION Do not place the product in a high humidity, strong electromagnetic fields, direct sunlight, or high-temperature environment. -
Page 18: Quick Troubleshooting
QUICK TROUBLESHOOTING Check the product Troubleshooting Phenomenon ① Whether the connection Make sure the adapter is well between the lamp and the connected with the power plug. power supply is normal. The switch indicator does ②When using a lithium battery not light up. -
Page 19: Packing List
PACKING LIST Name Quantity Notes Photography Lights AC Power Cable Controller Cable Controller Controller Clip Standard Cover Spotlight Protective Cover Magic Cable Tie Carrying Case Manual PRECAUTIONS 1．The product is not waterproof, it needs to be protected against wet conditions condensation, dripping and splashing water, air humidity;... -
Page 20: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... - Page 21 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty.
- Page 22 GVM Official website Facebook Download APP Huizhou City Latu Photographic Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Add: 4301 N Delaware Ave, unit D. PHILADELPHIA, PA19137, USA...
